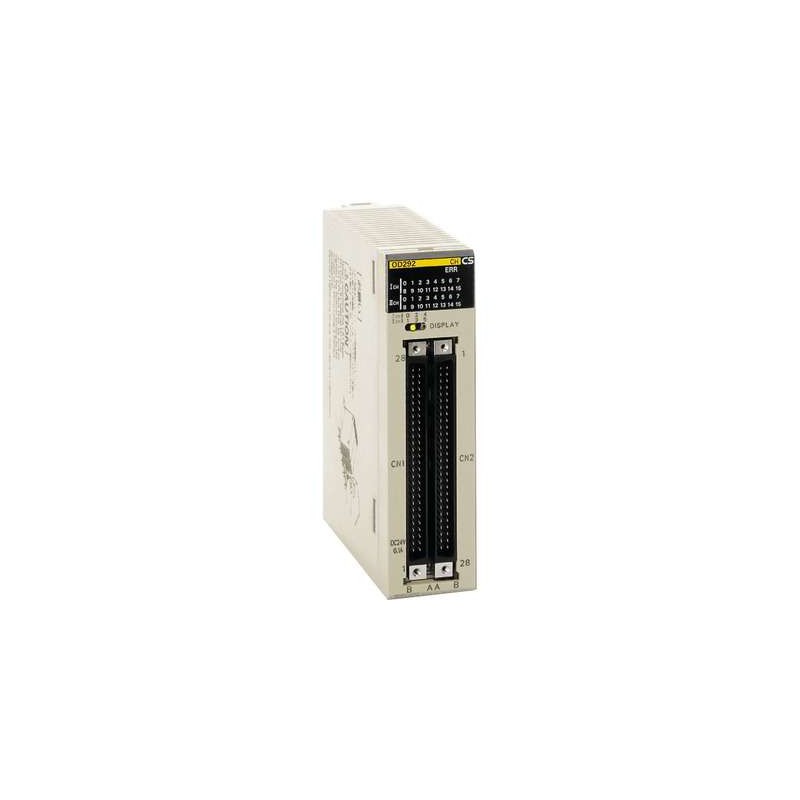

CS1W-OD292 | Omron PLC Expansion Module 96 Transistor Outputs
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-OD292
Description
The Omron CS1W-OD292 is a PLC expansion output module designed to provide high-density DC digital output control within SYSMAC CS Series systems. It features 96 transistor-based PNP outputs operating at 12 to 24 VDC for reliable signal switching in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Programmable Logic Controllers |
| Part Number | CS1W-OD292 |
| Subcategory | PLC Output Modules |
| PLC Series | SYSMAC CS Series |
| Module Type | DC Digital Output Unit |
| Number of Outputs | 96 |
| Output Type | Transistor (PNP, Sourcing) |
| Output Voltage | 12–24 VDC |
| Output Current Per Point | 0.1 A |
| Current Consumption | 0.48 A at 5 VDC system |
| Mounting Mode | Backplane / Rack |
| Operating Temperature | 0 to +55 °C |
| Application | Industrial I/O Signal Output |
| Weight | 0.220 kg |
Information About CS1W-OD292
The CS1W-OD292 is a DC digital output unit from Omron’s SYSMAC CS Series, developed to expand output capacity in modular PLC control systems. It is designed for applications requiring a large number of reliable transistor outputs within a single rack-mounted module. The unit uses PNP transistor technology to source current to connected field devices, supporting stable switching performance. Its architecture supports integration into complex automation systems where centralized and high-density output control is required.
Key Features
- 96-Point High-Density Output Design: Provides a large number of digital outputs within a single module to reduce rack space and simplify system layout.
- PNP Transistor Output Technology: Uses sourcing transistor outputs for fast and reliable DC signal switching to field devices.
- 12–24 VDC Output Range: Supports standard industrial control voltages used by sensors, relays, and actuators.
- Consistent Output Current Rating: Delivers up to 0.1 A per output channel for stable control of DC loads.
- SYSMAC CS Series Compatibility: Designed for seamless integration with Omron CS Series PLC racks and CPUs.
- Backplane-Mounted I/O Architecture: Installs directly into the PLC rack to ensure secure electrical and data connections.
- Industrial Temperature Tolerance: Rated for operation up to +55 °C, supporting use in control cabinets and factory environments.
The CS1W-OD292 delivers the reliability and precision required for high-density DC output control in advanced PLC-based automation systems.
