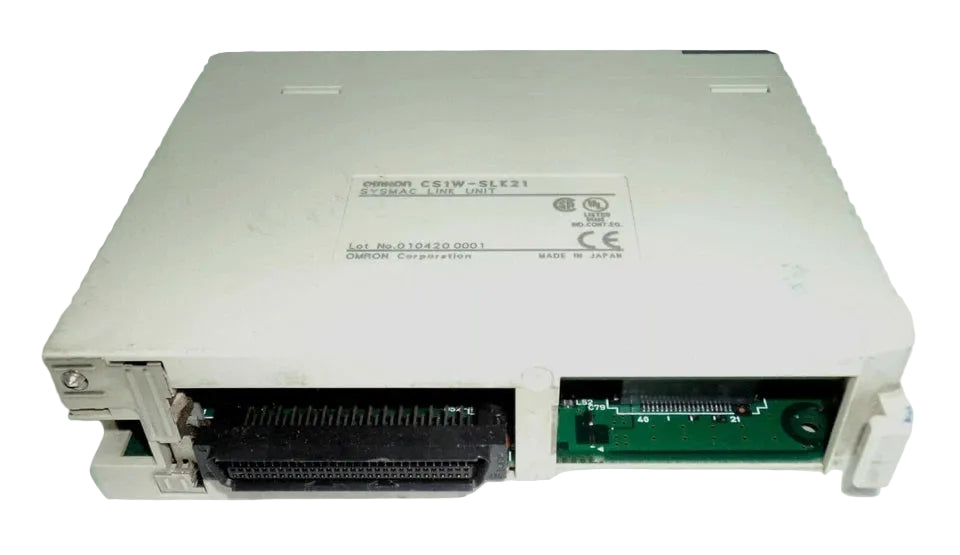

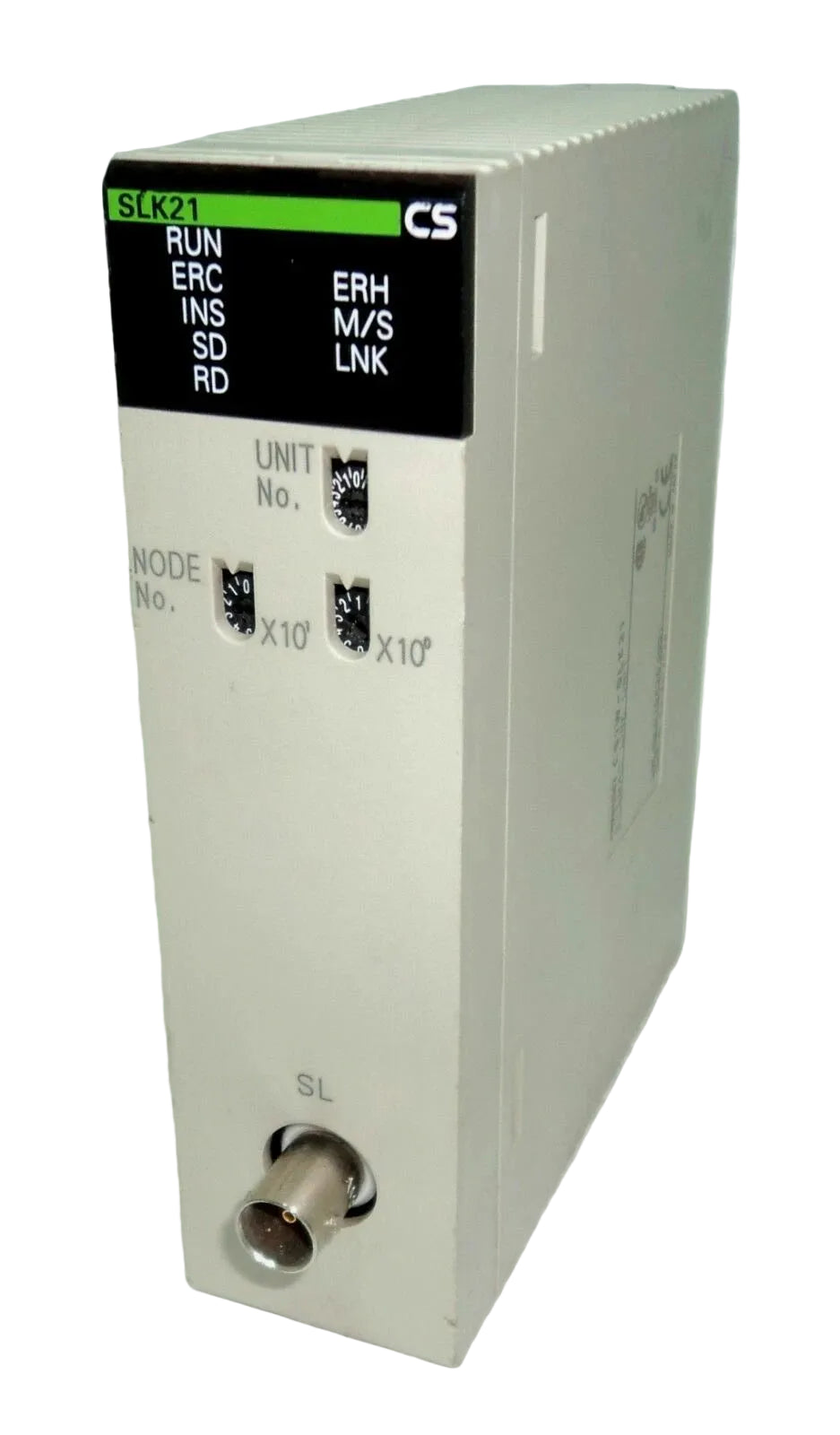

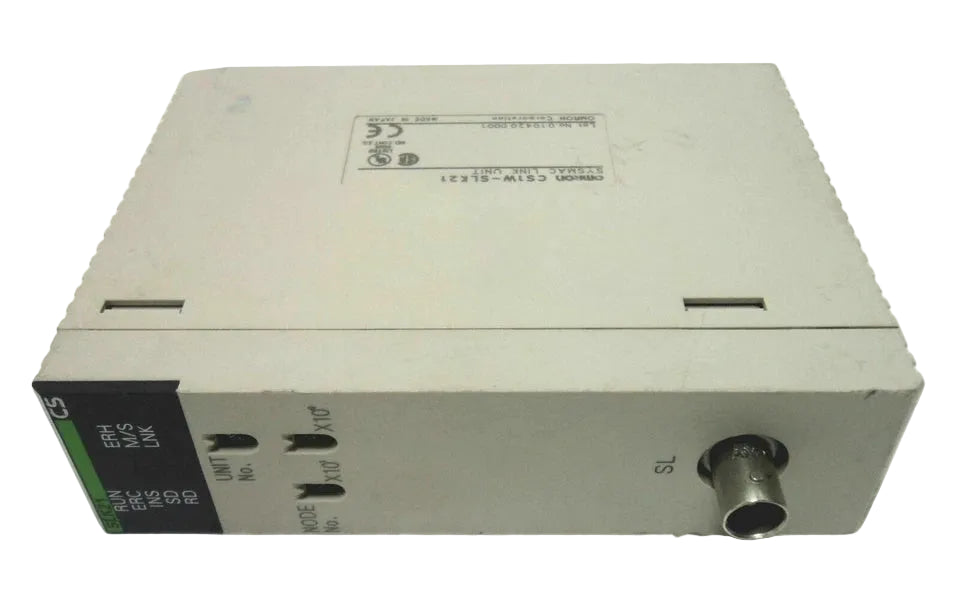

CS1W-SLK21 | Omron CS-Series Coaxial SYSMAC Link PLC Module
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-SLK21
Description
The Omron CS1W-SLK21 is a coaxial SYSMAC Link PLC communication module designed for high-speed data exchange within CS-series control systems. It enables reliable multi-node PLC networking using a token bus method over coaxial cabling for synchronized industrial automation operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Programmable Logic Controllers |
| Part Number | CS1W-SLK21 |
| Subcategory | PLC Communication Modules |
| Product Line | CS1 |
| Product Type | Coaxial SYSMAC Link Unit |
| Communication Method | Token Bus (N:N) |
| Transmission Method | Manchester Encoding |
| Transmission Path | Bus Transmission |
| Baud Rate | 2 Mbps (fixed) |
| Maximum Transmission Distance | 1 km |
| Cable Type | Coaxial Cable (5C-2V) |
| Connector Type | BNC |
| Maximum Number of Nodes | 62 |
| Data Capacity per Node | Up to 2,966 Words (Send/Receive) |
| Mounting Position | CS-Series CPU and Expansion Racks |
| Current Consumption | 480 mA at 5 VDC |
| Weight | 0.69 lbs (0.31 kg) |
Information About CS1W-SLK21
The CS1W-SLK21 is part of Omron’s CS1 product line and functions as a CPU bus communication unit for SYSMAC Link networks. This module supports bus-based data transmission using Manchester encoding, allowing stable and deterministic communication between multiple PLC nodes. Designed for installation in CS-series CPU and expansion racks, it connects via BNC coaxial interfaces and supports long-distance transmission up to one kilometer. Its architecture allows large-scale data sharing across up to 62 nodes, making it suitable for distributed control systems and coordinated automation processes.
Key Features:
- Coaxial SYSMAC Link Communication: Enables PLC-to-PLC networking using SYSMAC Link over coaxial cable.
- High-Speed Data Transfer: Operates at a fixed baud rate of 2 Mbps for fast and deterministic communication.
- Token Bus Transmission Method: Ensures controlled and collision-free data exchange between nodes.
- Long-Distance Network Support: Supports transmission distances up to 1 kilometer using 5C-2V coaxial cable.
- BNC Connector Interface: Provides secure and standardized coaxial cable connections.
- High Node Capacity: Supports up to 62 nodes within a single SYSMAC Link network.
- Large Data Exchange Capacity: Allows up to 2,966 words per node for sending and receiving data.
The CS1W-SLK21 delivers the reliability and precision required for high-speed PLC network communication and distributed industrial control systems.
