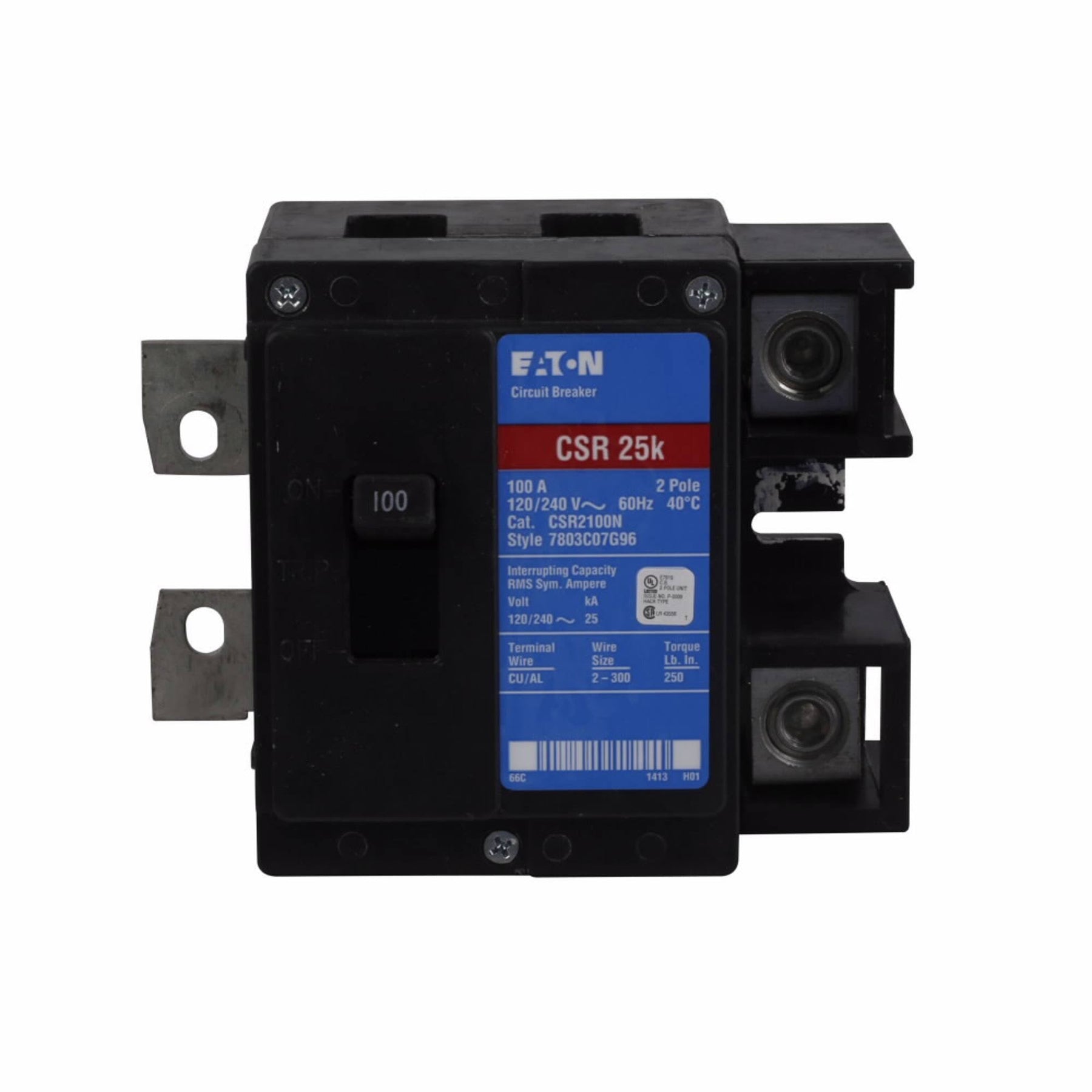

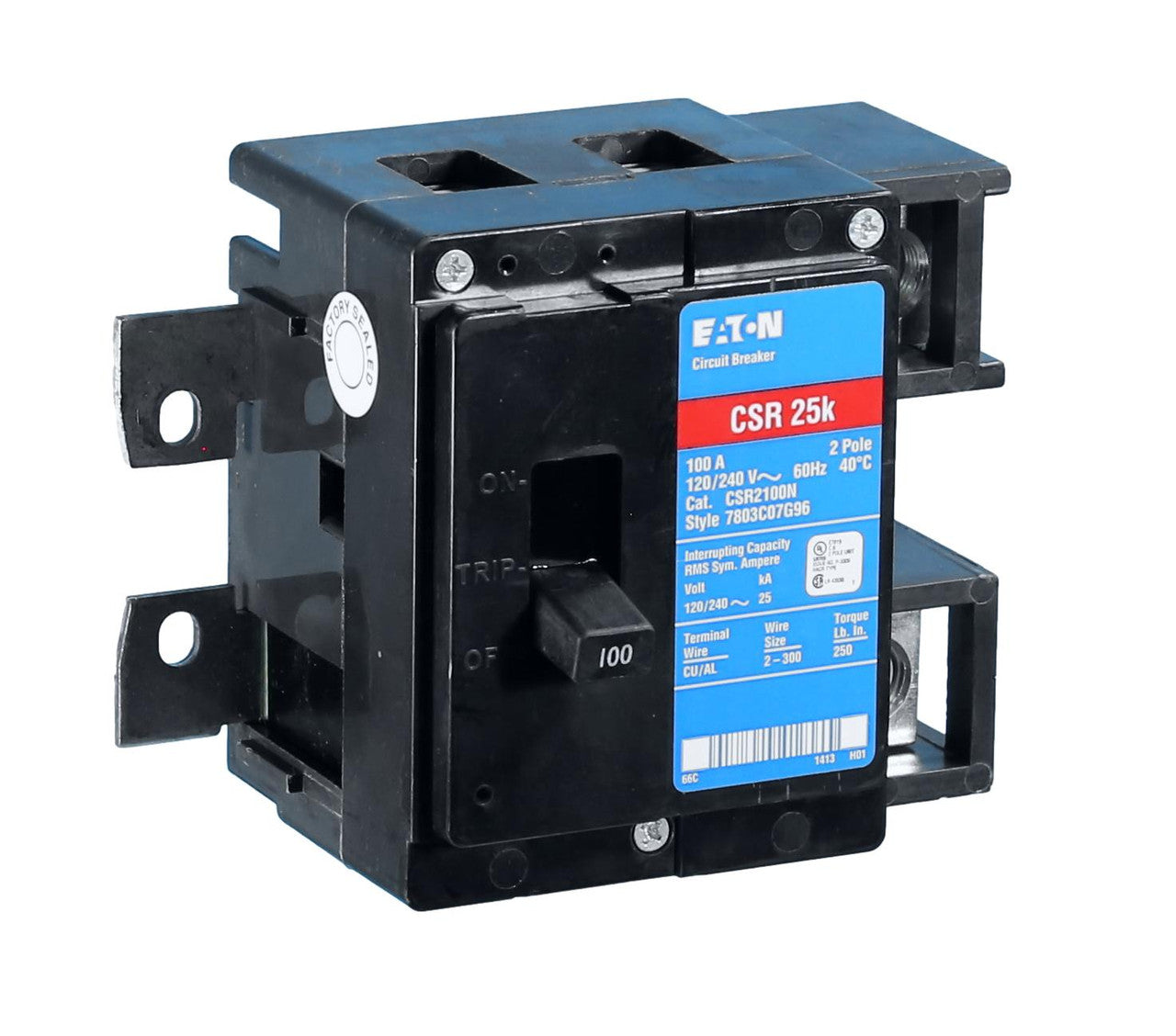

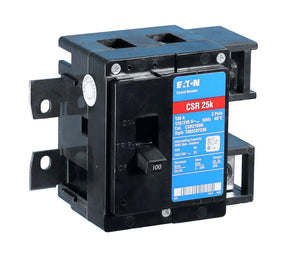

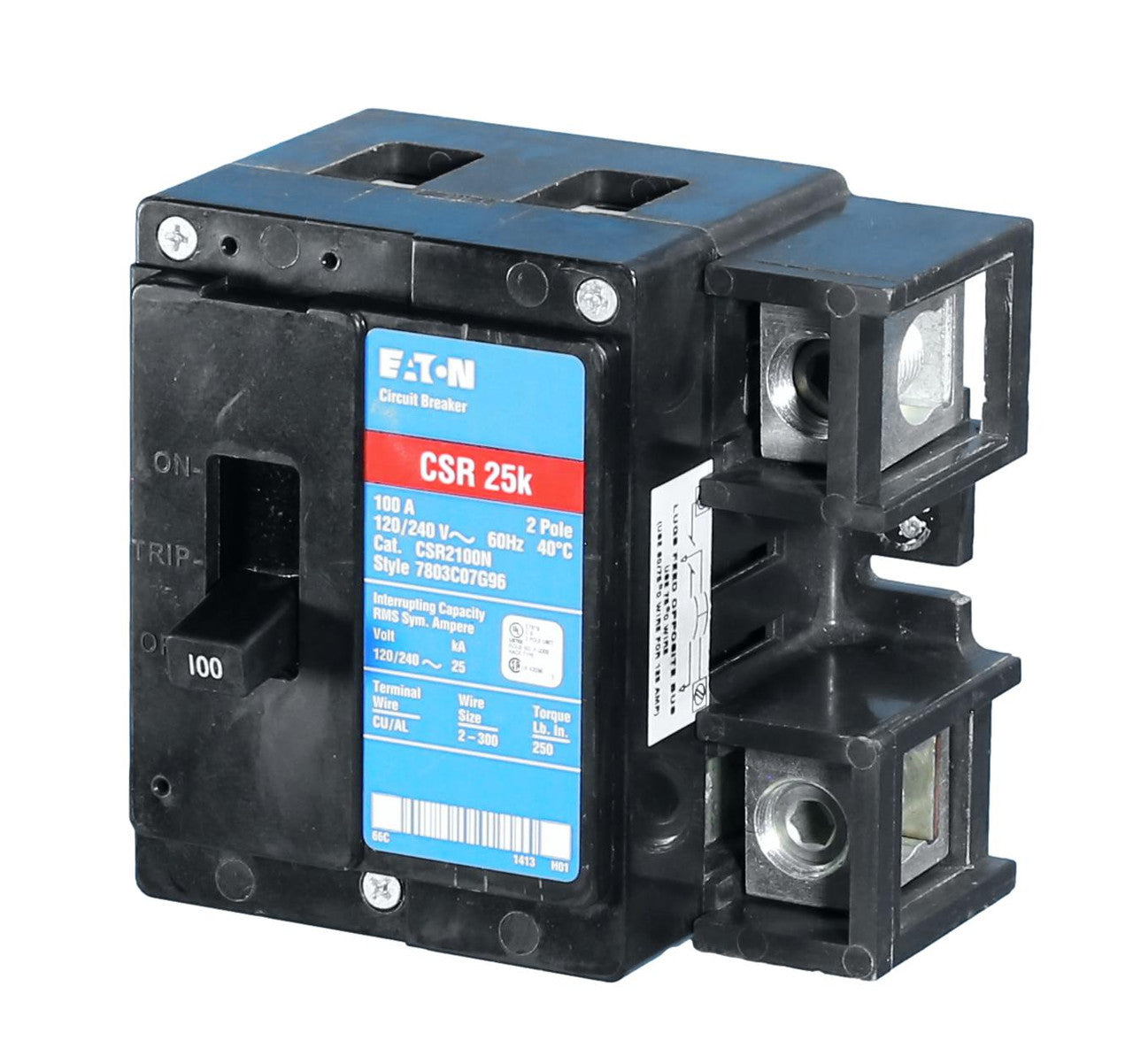

CSR2100N | Eaton 100A 2-Pole 120/240V CSR Series Plug-In Molded Case Circuit Breaker
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CSR2100N
Description
The Eaton CSR2100N is a 2-pole thermal magnetic molded case circuit breaker rated for 100 amps and 120/240 VAC operation. It provides dependable protection against overloads and short circuits with an interrupting capacity of 25 kAIC at 240 volts. Designed with a plug-in connection type, this breaker offers quick installation and reliable performance for residential, commercial, and light industrial electrical panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breakers |
| Part Number | CSR2100N |
| Subcategory | Molded Case Circuit Breakers |
| Series | CSR Series |
| Frame Type | CSR |
| Number of Poles | 2 |
| Amperage Rating | 100 A |
| Voltage Rating | 120/240 VAC |
| Interrupting Rating | 25 kAIC @ 240 VAC |
| Trip Unit Type | Fixed Thermal and Fixed Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Plug-In |
| Mounting Type | Plug-In |
| Phase | Single Phase |
| Protection Type | Thermal Magnetic |
| For Use With | Type ECB Unit Enclosures |
| Approvals/Certifications | UL Listed, CSA Certified |
| Application | Power distribution and overcurrent protection |
| Operating Frequency | 50/60 Hz |
| Weight | 4.9 lbs (2.22 kg) |
Information About CSR2100N
The CSR2100N is part of the Eaton CSR Series, a line of molded case circuit breakers engineered for efficiency, safety, and durability in power distribution systems. Built with a fixed thermal and magnetic trip mechanism, it ensures precise long-time and instantaneous fault protection. The breaker’s plug-in mounting design allows easy integration into Type ECB unit enclosures, simplifying maintenance and system upgrades. Certified to UL and CSA standards, the CSR2100N meets strict industry requirements for quality and operational reliability.
Key Features:
- Amperage Rating: Rated for 100 amps continuous current for dependable circuit protection.
- Voltage Rating: Operates at 120/240 VAC, suitable for residential and commercial applications.
- Interrupting Capacity: 25 kAIC at 240V ensures high fault interruption capability.
- Trip Mechanism: Thermal magnetic trip provides long-time and instantaneous protection.
- Connection Type: Plug-in design allows fast and secure installation in compatible panels.
- Frame Type: CSR frame ensures compatibility with Eaton’s ECB unit enclosures.
- Certifications: UL and CSA approved for verified electrical safety and performance.
- Construction: Durable molded case housing protects components from mechanical stress.
The CSR2100N delivers the reliability and precision required for safe and consistent power distribution in modern electrical systems.
