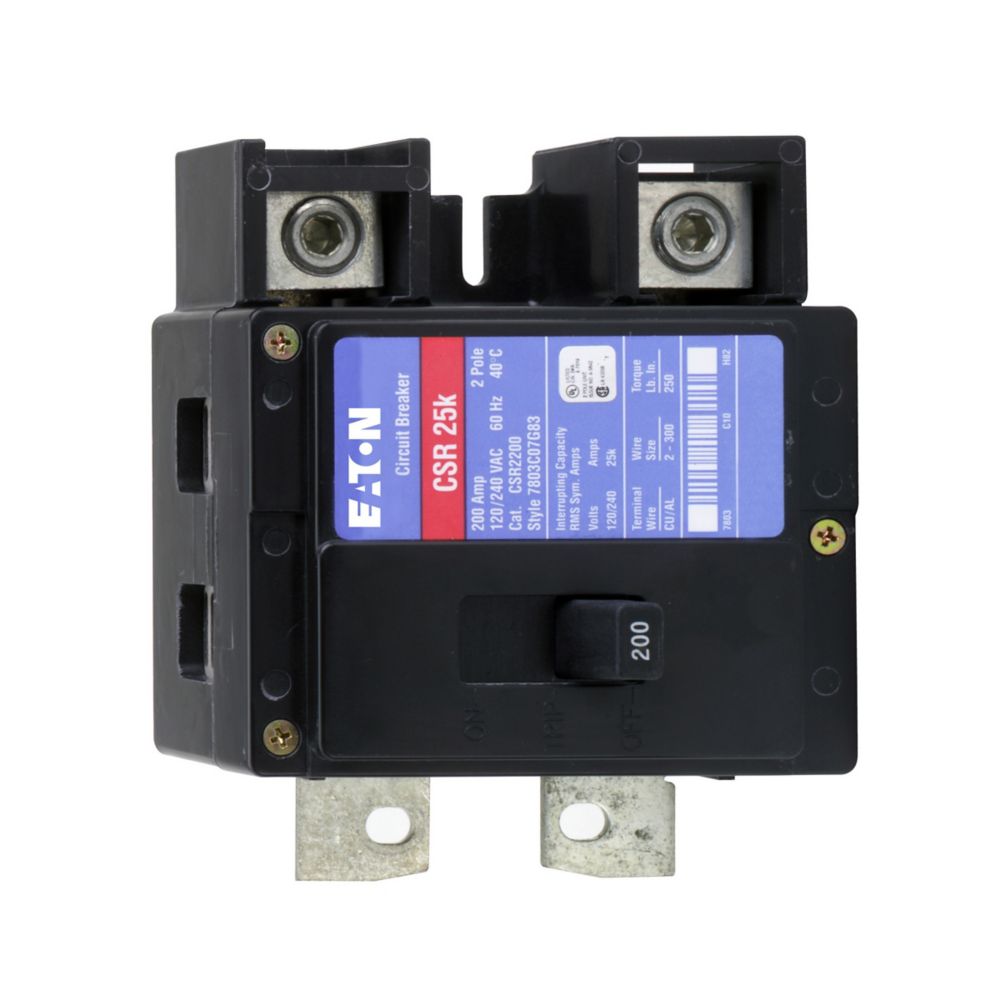

CSR2200N | Eaton Cutler-Hammer CSR Series Standard Circuit Breaker 200A 2-Pole 120/240V 25 kAIC
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CSR2200N
Description
The Eaton Cutler-Hammer CSR2200N is a standard molded case circuit breaker designed to provide dependable overload and short-circuit protection in single-phase electrical systems. This two-pole breaker is rated at 200 A and operates at 120/240 V with a thermal-magnetic trip mechanism.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton Cutler-Hammer |
| Category | Molded Case Circuit Breaker |
| Part Number | CSR2200N |
| Subcategory | Molded Case / 2-Pole |
| Series / Family | CSR Series |
| Breaker Type | CSR |
| Number of Poles | 2 |
| Amperage Rating | 200 A |
| Voltage Rating | 120/240 V |
| Phase | 1 |
| Trip Unit Type | Thermal-Magnetic |
| Protection Functions | LI – Long-Time and Instantaneous |
| Interrupt Rating | 25 kA at 240 V |
| Connection Type | Plug-In |
| Conductor Range | #2 AWG to 300 kcmil |
| Application | Type ECC Unit Enclosures |
Information About CSR2200N
The CSR2200N is part of Eaton’s CSR Series, developed to provide standard main circuit protection in compact electrical distribution systems. It incorporates a thermal-magnetic trip unit that responds to prolonged overload conditions as well as instantaneous high-current faults. The breaker is configured as a two-pole device for single-phase systems commonly found in service entrance and distribution equipment. Its plug-in design supports efficient installation and replacement while maintaining secure electrical connections within compatible enclosures.
Key Features:
- CSR Series Standard Design: Engineered for use in Eaton Type ECC unit enclosures with consistent performance in residential and light commercial systems.
- Thermal-Magnetic Protection: Combines long-time thermal response for overloads with instantaneous magnetic tripping for short-circuit conditions.
- 200 Amp Current Rating: Supports main and feeder circuits requiring higher current capacity in single-phase installations.
- Two-Pole Configuration: Provides simultaneous protection and isolation of both ungrounded conductors.
- 25 kA Interrupting Capacity: Capable of safely interrupting high fault currents at rated voltage levels.
- Plug-In Connection: Enables straightforward installation, replacement, and maintenance with reduced downtime.
- Wide Conductor Compatibility: Accepts conductors from #2 AWG up to 300 kcmil to accommodate varying load requirements.
The CSR2200N delivers the reliability and precision required for effective main circuit protection in Eaton Cutler-Hammer CSR Series electrical distribution systems.
