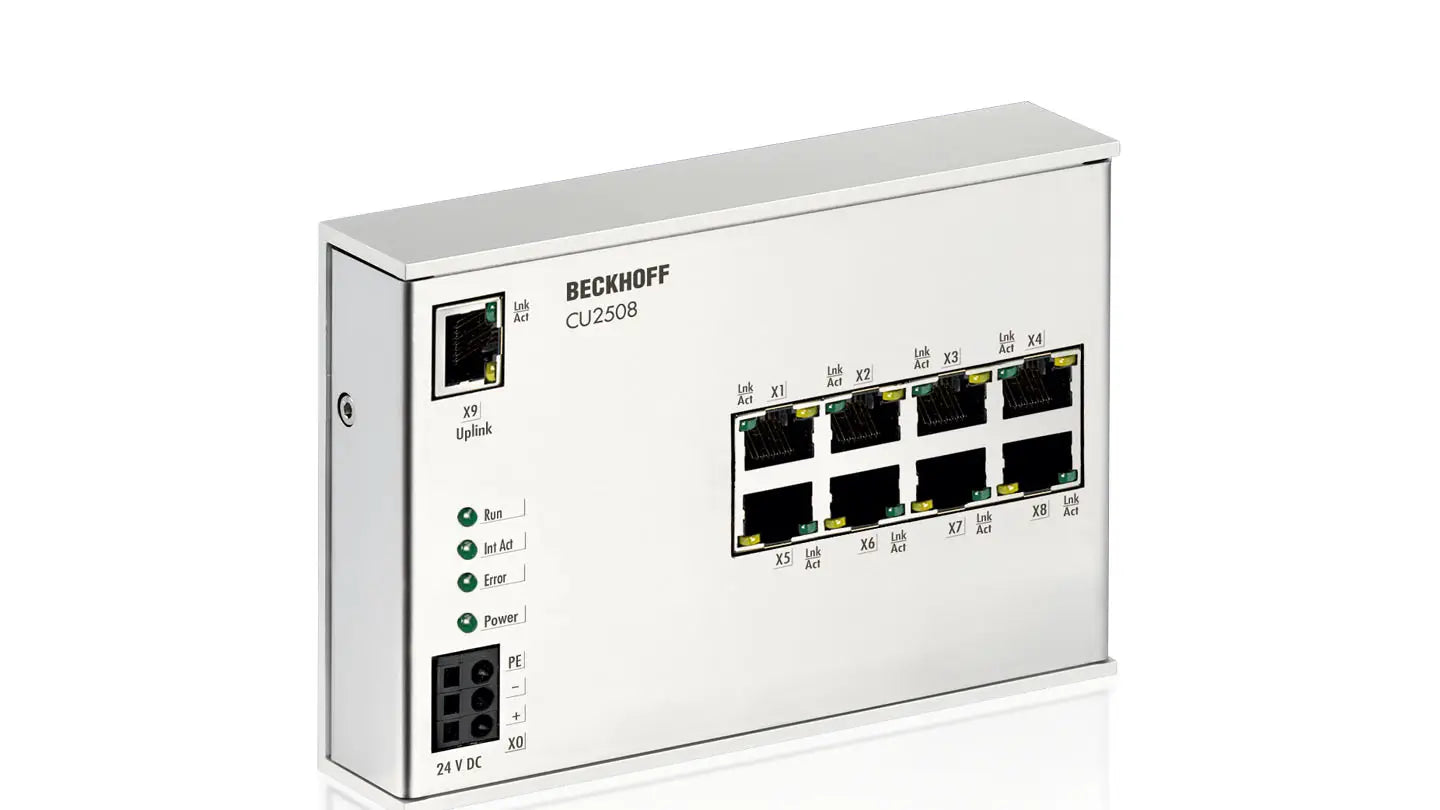

CU2508 | Beckhoff 8-Port Real-Time Ethernet Port Multiplier 24 VDC
- Regular price
- $923.00
- Sale price
- $923.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CU2508
Description
The Beckhoff CU2508 is an 8-port Ethernet port multiplier that supports real-time Ethernet protocols such as EtherCAT, PROFINET, and standard TCP/IP communication. Operating at 24 VDC, it provides high-speed data transfer up to 1 Gbit/s through RJ45 interfaces, ensuring deterministic communication for industrial automation networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CU2508 |
| Subcategory | Ethernet Port Multiplier |
| Number of Ports | 8 RJ45 ports |
| Supported Protocols | Ethernet TCP/IP, EtherCAT, PROFINET (others depending on driver) |
| Data Transfer Rates | 100BASE-TX and 1 Gbit/s |
| Cable Type and Length | Twisted pair, up to 100 m |
| Hardware Diagnostics | Integrated LEDs for link, activity, and status monitoring |
| Power Supply | 24 V DC (18…30 V), 250 mA |
| Connection Type | 3-pin connector (+, –, PE) |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Installation Position | Variable |
| Approvals | CE, UL |
| Housing Material | Industrial-grade metal enclosure |
| Mounting Type | DIN-rail or panel mounting |
| Dimensions (W × H × D) | 146 mm × 100 mm × 30 mm |
| Weight | 1.35 lbs (approx. 610 g) |
Information About CU2508
The CU2508 is part of Beckhoff’s range of industrial infrastructure components designed to optimize real-time Ethernet communication in automation systems. This 8-port Ethernet port multiplier distributes data streams with minimal latency, enabling deterministic and synchronized data transfer between networked devices. Supporting both 100BASE-TX and Gigabit Ethernet speeds, it allows seamless integration of EtherCAT, PROFINET, and other real-time protocols. The CU2508 is powered via a 24 VDC supply and equipped with diagnostic LEDs for quick network status verification. Compact, durable, and CE/UL certified, it is ideal for network segmentation, real-time data acquisition, and system optimization in industrial environments.
Key Features:
- Eight-Port Network Expansion: Provides eight RJ45 ports for Ethernet-based field devices, ensuring flexible network topologies.
- Real-Time Protocol Support: Compatible with EtherCAT, PROFINET, and other industrial Ethernet standards for deterministic communication.
- High-Speed Data Transfer: Supports both 100BASE-TX and 1 Gbit/s connections for fast and reliable communication.
- Integrated Diagnostics: LED indicators on each port provide link and activity status for easy troubleshooting.
- Compact Industrial Design: Slim 146 × 100 × 30 mm housing suitable for DIN-rail or panel mounting.
- Robust and Efficient: Operates on 24 VDC with low power consumption (250 mA) and passive cooling.
- Wide Environmental Tolerance: Reliable operation from -25°C to +55°C with IP20 protection rating.
- Certified for Safety and Quality: CE and UL approved for global industrial use.
The CU2508 delivers the reliability and precision required for real-time Ethernet communication, industrial data distribution, and automation network infrastructure.
