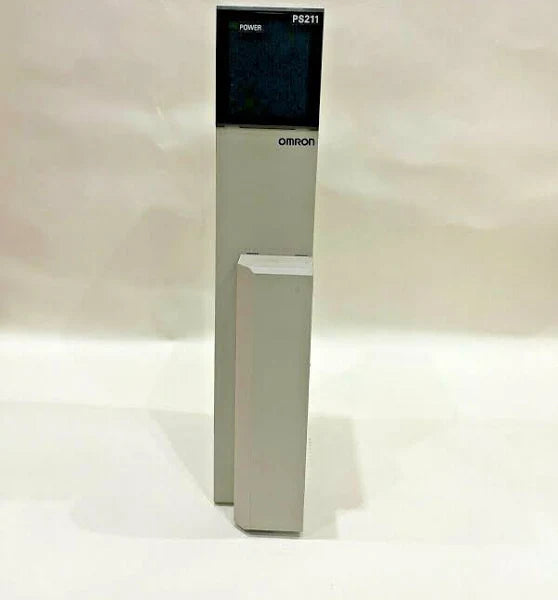

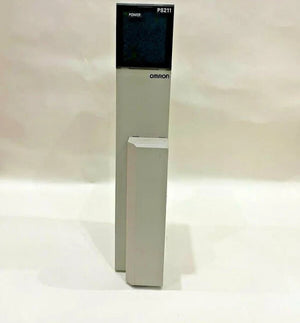

Part #: CV500-PS211 Manufactured by: Omron
Regular price
$327.00
Sale price
$327.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Omron CV500-PS211 is a power supply unit specifically designed for the CV-series PCs, which are meant to be installed ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: CV500-PS211
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Omron
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: CV500-PS211

Description / Specifications

Description

The Omron CV500-PS211 module is a CV series power supply unit with a supply voltage rating of 24 VDC and an operating voltage range from 20.4 to 28.8 VDC. Its output capacity is 12A at 5 VDC, and its power consumption rating is 100 W. The unit handles inrush currents of up to 30 A and maintains a minimum insulation resistance rating of 20 Megohms at 500 VDC. The CV500-PS211 power supply can operate at temperatures from 0° to 55°C.


Technical Specifications


Brand OMRON
Module Type Power Supply Unit
Part Number CV500-PS211
Supply Voltage 24 VDC
Operating Voltage Range 20.4 to 28.8 VDC
Output Capacity 12A at 5 VDC
Power Consumption 100 W max.
Inrush Current 30 A max
Insulation Resistance 20 Megohms min. (at 500 VDC)
Noise Immunity 10 to 58 Hz, 0.075-mm amplitude, 58 to 150 Hz, acceleration: 9.8 m/s2
Shock Resistance 147 m/s2 3 times each in X, Y, and Z directions (according to JIS C0041)
Ambient Operating Temperature 0° to 55°C
Ambient Storage Temperature –20° to 75°C (except Memory Card and battery)
Humidity 10% to 90% (with no condensation)
Enclosure Mounted in a panel




Information About CV500-PS211

The Omron CV500-PS211 module is a power supply unit designed for reliable operation in SYSMAC CV series automation systems. Its supply voltage rating is 24 VDC, and its operating voltage range is from 20.4 to 28.8 VDC. The CV500-PS211 power supply unit can produce 12A of output at 5 VDC to provide sufficient power to connected devices. It has a maximum power consumption rating of 100 W and an inrush current rating of up to 30 A. To ensure optimal performance, it has an insulation resistance rating of 20 Megohms (at 500 VDC) and a noise immunity rating of 1,000 Vp-p with a pulse width ranging from 100 ns to 1 microsecond. The CV500-PS211 power supply also has a vibration resistance rating from 10 to 58 Hz and 0.075-mm amplitude, along with a shock resistance rating of 147 m/s2 in the X, Y, and Z directions. The CV500-PS211 power supply unit supports an ambient operating temperature range of 0° to 55°C and a storage temperature range of -20° to 75°C (excluding the memory card and battery). The unit can tolerate relative humidity levels from 10% to 90% without condensation in an atmosphere that is free from corrosive gases. System grounding should be maintained at less than 100 ohms, and the CV500-PS211 unit must be mounted within a panel enclosure for protection from dust and small amounts of moisture. The CV500-PS211 power supply weighs a maximum of 9 kilograms. It is compatible with programmable controller systems from the Omron SYSMAC CV series.



Manufacturer information

OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Omron CV500-PS211 module is a CV series power supply unit with a supply voltage rating of 24 VDC and an operating voltage range from 20.4 to 28.8 VDC. Its output capacity is 12A at 5 VDC, and its power consumption rating is 100 W. The unit handles inrush currents of up to 30 A and maintains a minimum insulation resistance rating of 20 Megohms at 500 VDC. The CV500-PS211 power supply can operate at temperatures from 0° to 55°C.


Technical Specifications


Brand OMRON
Module Type Power Supply Unit
Part Number CV500-PS211
Supply Voltage 24 VDC
Operating Voltage Range 20.4 to 28.8 VDC
Output Capacity 12A at 5 VDC
Power Consumption 100 W max.
Inrush Current 30 A max
Insulation Resistance 20 Megohms min. (at 500 VDC)
Noise Immunity 10 to 58 Hz, 0.075-mm amplitude, 58 to 150 Hz, acceleration: 9.8 m/s2
Shock Resistance 147 m/s2 3 times each in X, Y, and Z directions (according to JIS C0041)
Ambient Operating Temperature 0° to 55°C
Ambient Storage Temperature –20° to 75°C (except Memory Card and battery)
Humidity 10% to 90% (with no condensation)
Enclosure Mounted in a panel




Information About CV500-PS211

The Omron CV500-PS211 module is a power supply unit designed for reliable operation in SYSMAC CV series automation systems. Its supply voltage rating is 24 VDC, and its operating voltage range is from 20.4 to 28.8 VDC. The CV500-PS211 power supply unit can produce 12A of output at 5 VDC to provide sufficient power to connected devices. It has a maximum power consumption rating of 100 W and an inrush current rating of up to 30 A. To ensure optimal performance, it has an insulation resistance rating of 20 Megohms (at 500 VDC) and a noise immunity rating of 1,000 Vp-p with a pulse width ranging from 100 ns to 1 microsecond. The CV500-PS211 power supply also has a vibration resistance rating from 10 to 58 Hz and 0.075-mm amplitude, along with a shock resistance rating of 147 m/s2 in the X, Y, and Z directions. The CV500-PS211 power supply unit supports an ambient operating temperature range of 0° to 55°C and a storage temperature range of -20° to 75°C (excluding the memory card and battery). The unit can tolerate relative humidity levels from 10% to 90% without condensation in an atmosphere that is free from corrosive gases. System grounding should be maintained at less than 100 ohms, and the CV500-PS211 unit must be mounted within a panel enclosure for protection from dust and small amounts of moisture. The CV500-PS211 power supply weighs a maximum of 9 kilograms. It is compatible with programmable controller systems from the Omron SYSMAC CV series.



Manufacturer information

OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
