CVM1-CPU11-V2 | Omron CPU Module

Description

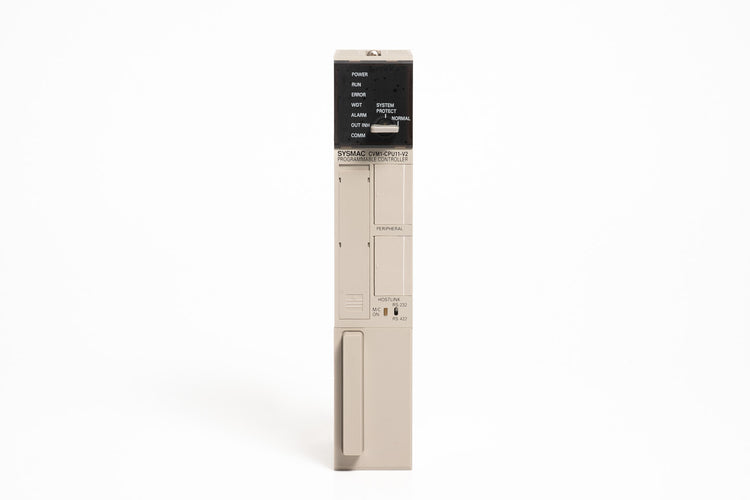

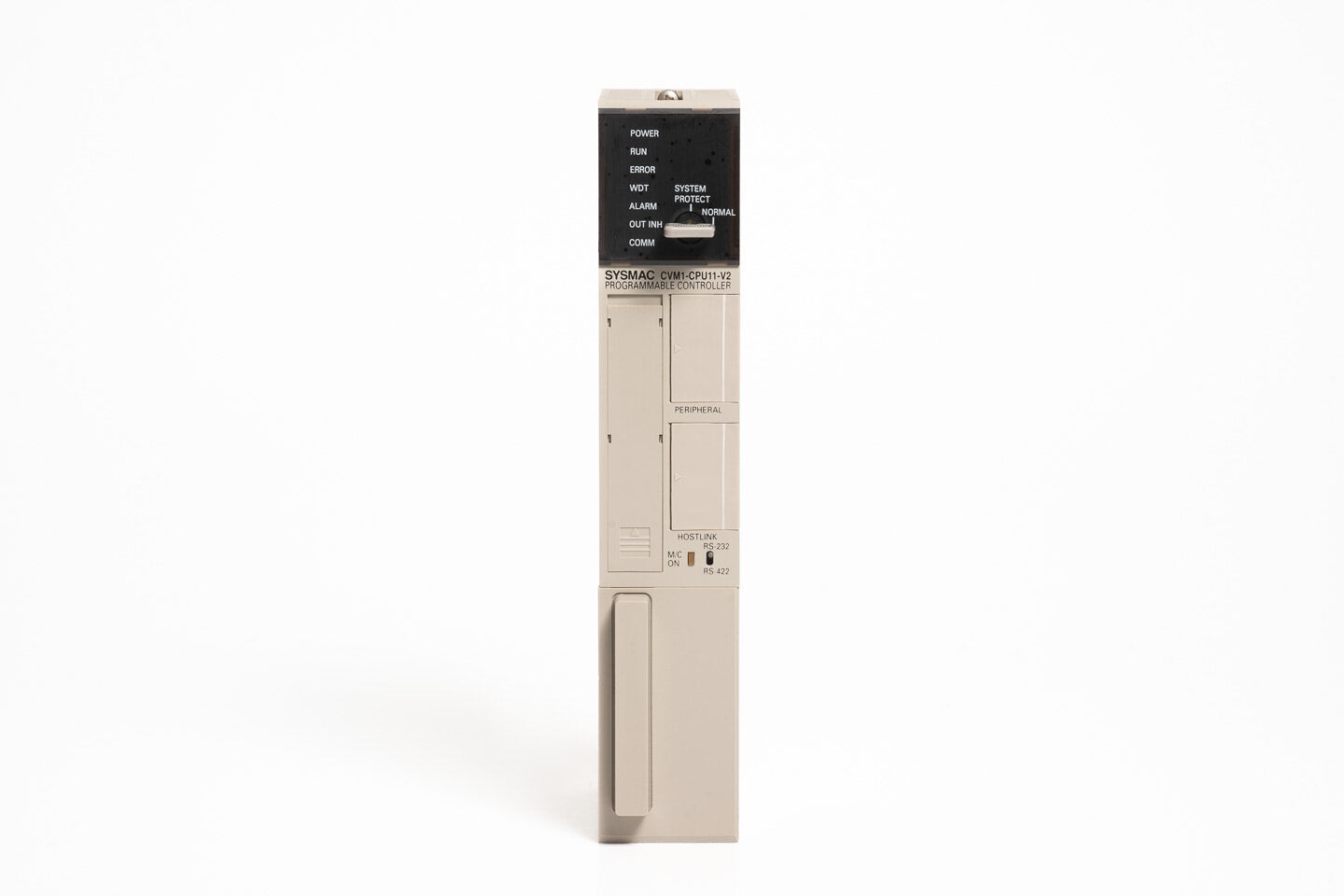

The Omron CVM1-CPU11-V2 is a compact and efficient CPU module engineered for rack-mounted control systems. Supporting ladder-only programming, it offers a high-capacity solution for logic execution and I/O control in industrial automation.

Technical Specifications

Information About CVM1-CPU11-V2

The CVM1-CPU11-V2 is part of Omron's CVM1 series and is designed specifically for CPU racks in programmable logic controller (PLC) environments. It supports ladder diagram programming only and offers 30K words of program memory along with 8K words of data memory, allowing it to handle complex control tasks reliably. The module provides RS-232C/422 ports for flexible communication with external devices and systems. With a local I/O capacity of up to 512 points and a total I/O capacity of 2048, this module is suited for scalable installations in process and machine control. The presence of LED indicators facilitates real-time status monitoring, and its industrial design ensures durability in harsh environments with a wide operating temperature range.

Key Features:

• Ladder-Only Programming Support: Enables straightforward programming using widely adopted ladder logic for reliable automation workflows.
• Large Program and Data Memory: Equipped with 30K words for programming and 8K words for data, ideal for handling complex sequences and conditional logic.
• Extensive I/O Handling: Supports up to 512 local and 2048 total I/O points, accommodating both compact and large-scale systems.
• Dual Serial Communication Interfaces: Built-in RS-232C and RS-422 ports allow integration with various external peripherals, HMIs, and data collection systems.
• Compact Rack-Mount Design: Designed for CPU rack mounting, ensuring secure placement and modular expansion within control cabinets.
• Integrated Status Monitoring: LED indicators on the module help quickly identify operating and fault conditions, enhancing diagnostics and maintenance response.
• Industrial Grade Reliability: Operates between 0–55°C with 10–90% RH (non-condensing), and is designed for environments free of corrosive gases.
• Versatile Application Use: Suitable for discrete manufacturing, batch control systems, and process automation tasks requiring stable ladder execution.

The CVM1-CPU11-V2 delivers powerful PLC control with advanced memory capacity and reliable communication options. The module is ideal for scalable control systems across a range of industrial automation settings.
