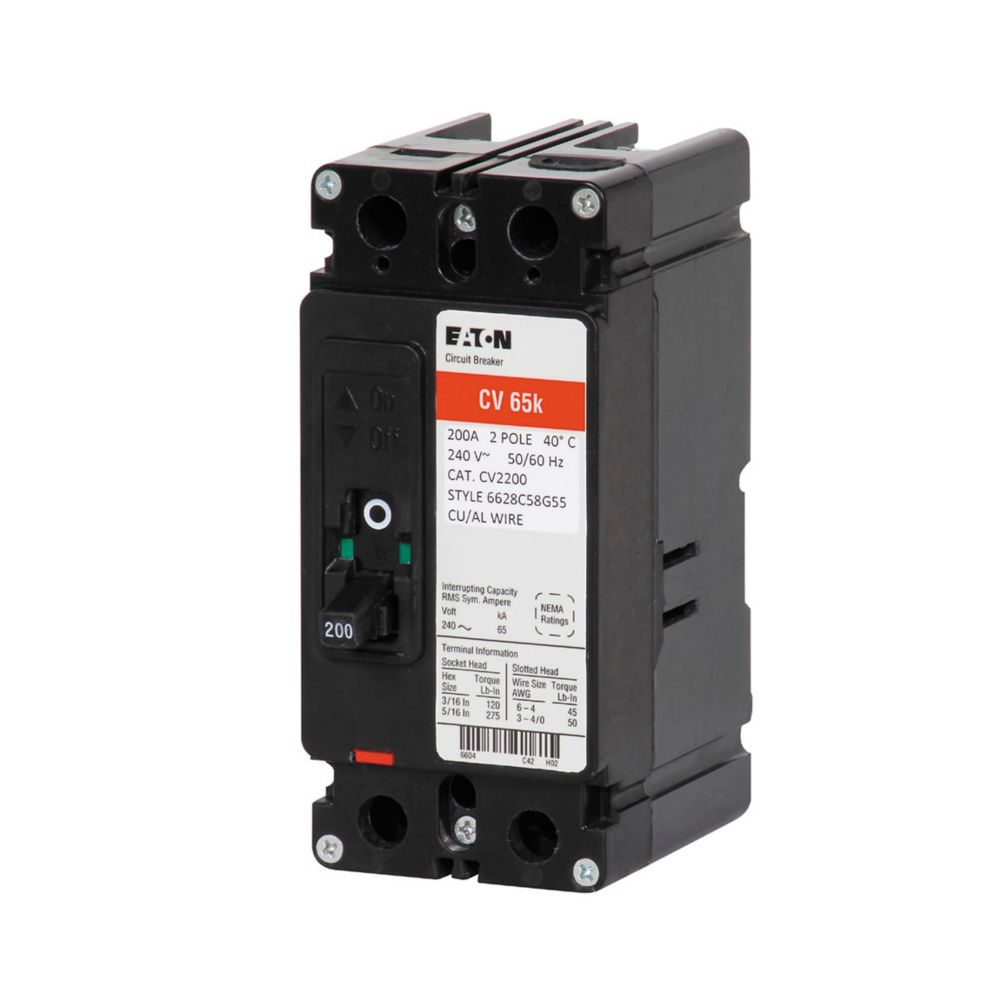

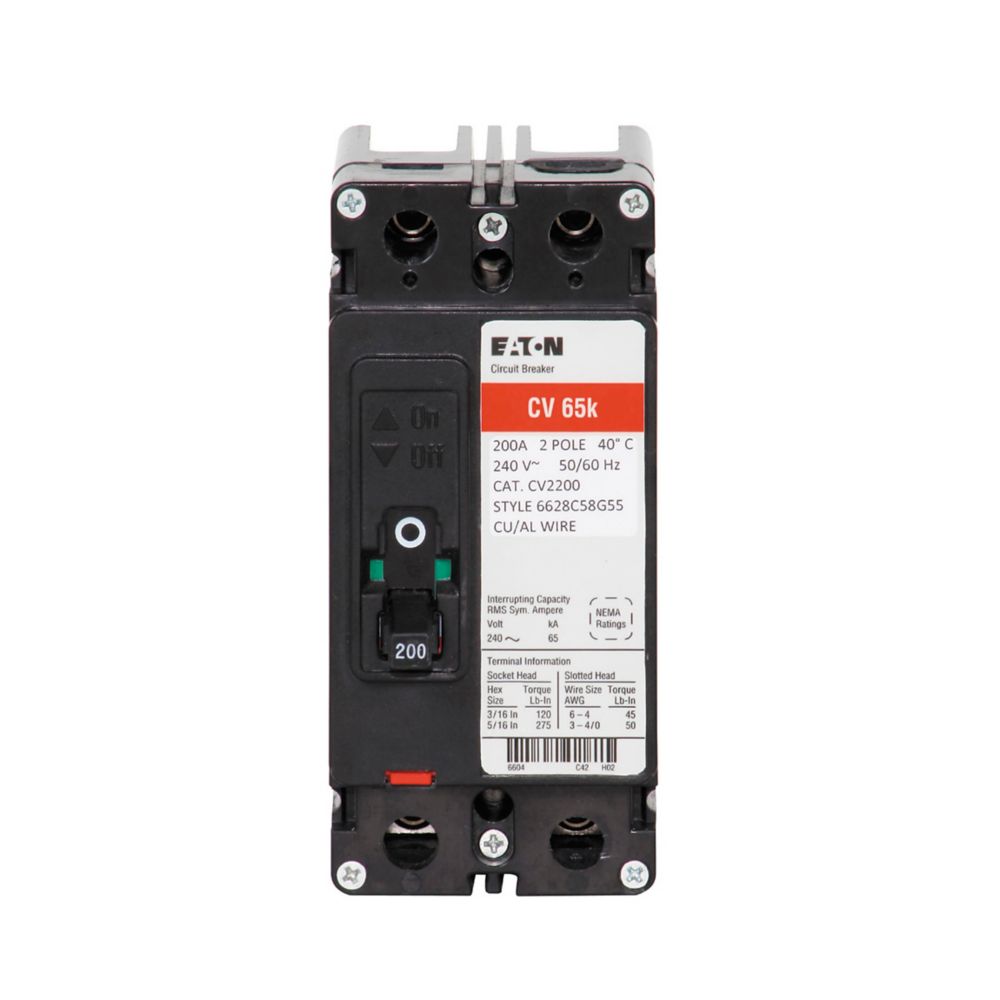

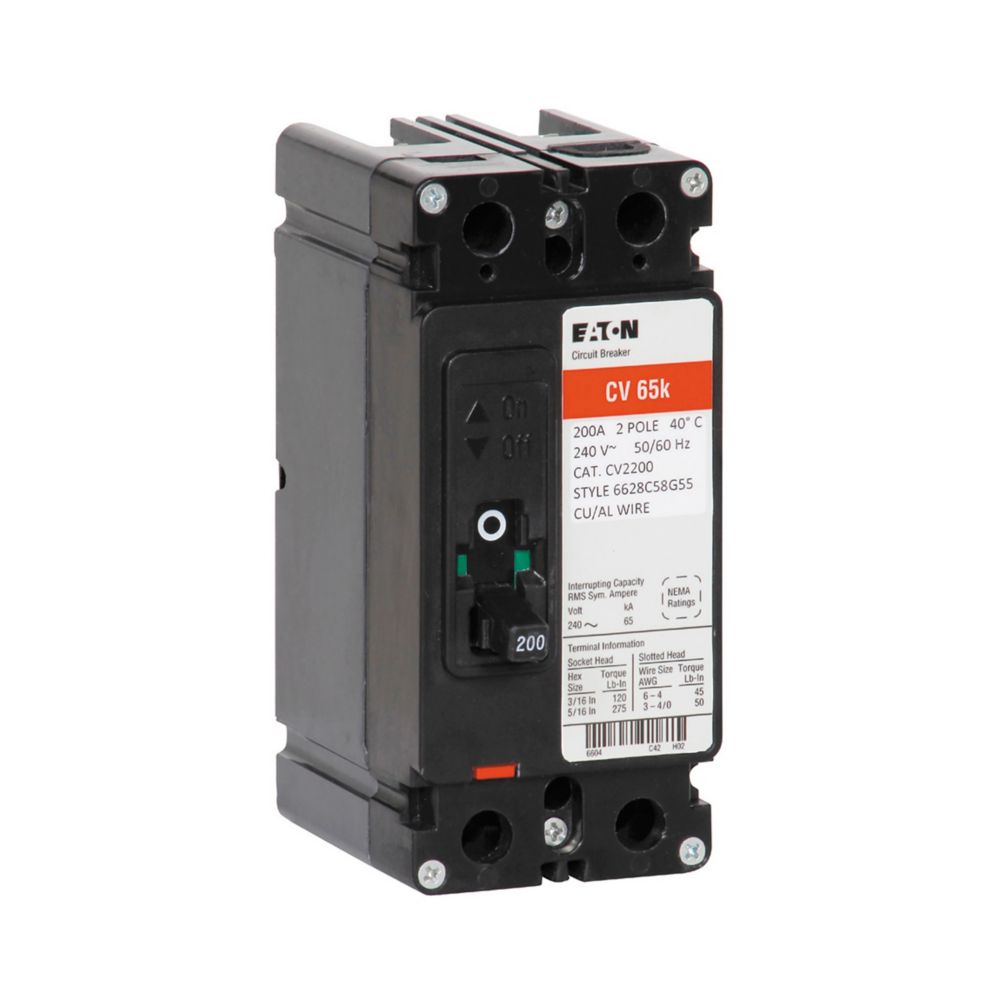

CVS2200XMM | Eaton CVS 200A 2-Pole 240VAC Molded Case Circuit Breaker
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CVS2200XMM
Description
The Eaton CVS2200XMM is a two-pole molded case circuit breaker designed for high-current protection in 240VAC electrical systems. Rated at 200 amps, the Eaton CVS2200XMM provides thermal magnetic overcurrent protection and high interrupting capacity for commercial and industrial power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | CVS2200XMM |
| Subcategory | Molded Case |
| Series | CVS |
| Frame Type | CV |
| Breaker Type | Molded Case Circuit Breaker |
| Current Rating | 200 Amps |
| Voltage Rating | 240 VAC |
| Poles | 2 |
| Interrupting Rating | 42 kAIC |
| Trip Unit Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Mounting Type | Bolt-On |
| Terminal Connection | Line and Load Side Lugs |
| Wire Size Range | #6 to 4/0 AWG Cu/Al |
| Temperature Rating | 40 °C |
| Certifications | UL 489, CSA Std. C22.2 No. 5 |
| Country of Origin | Dominican Republic |
| Weight | 6 lb |
Information About CVS2200XMM
The CVS2200XMM is part of Eaton’s CVS Series, built on the CV frame and configured as a tenant main molded case circuit breaker. It features a thermal magnetic trip unit that delivers long-time and instantaneous protection against overloads and short-circuit conditions. The breaker supports bolt-on mounting and accommodates large conductor sizes, making it compatible with panelboards and distribution equipment requiring high-current capacity. Designed to meet UL and CSA standards, it is suitable for demanding electrical environments requiring reliable fault interruption.
Key Features:
- CVS Series Construction: Engineered for high-current tenant main and feeder circuit protection.
- 200 Amp Current Rating: Supports heavy-load distribution circuits in commercial and industrial systems.
- Thermal Magnetic Trip Unit: Provides dependable long-time and instantaneous overcurrent protection.
- High Interrupting Capacity: Rated at 42 kAIC for effective short-circuit fault clearing.
- Two-Pole Configuration: Designed for dual-conductor protection in 240VAC systems.
- Bolt-On Mounting: Ensures secure installation in compatible electrical panels.
- Large Conductor Support: Accepts #6 to 4/0 AWG copper or aluminum conductors.
The CVS2200XMM delivers the reliability and precision required for high-current molded case circuit breaker applications in commercial and industrial power distribution.
