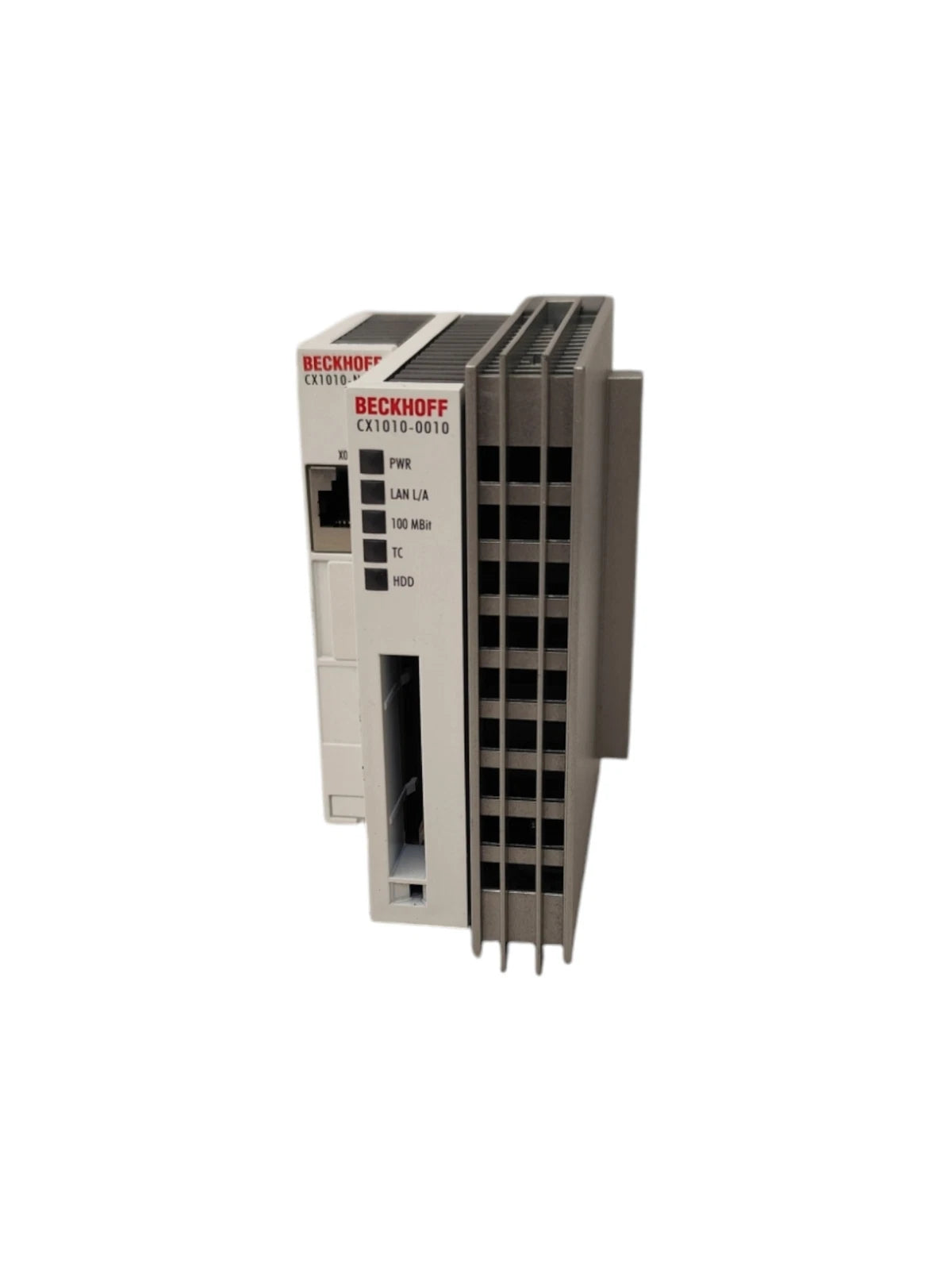

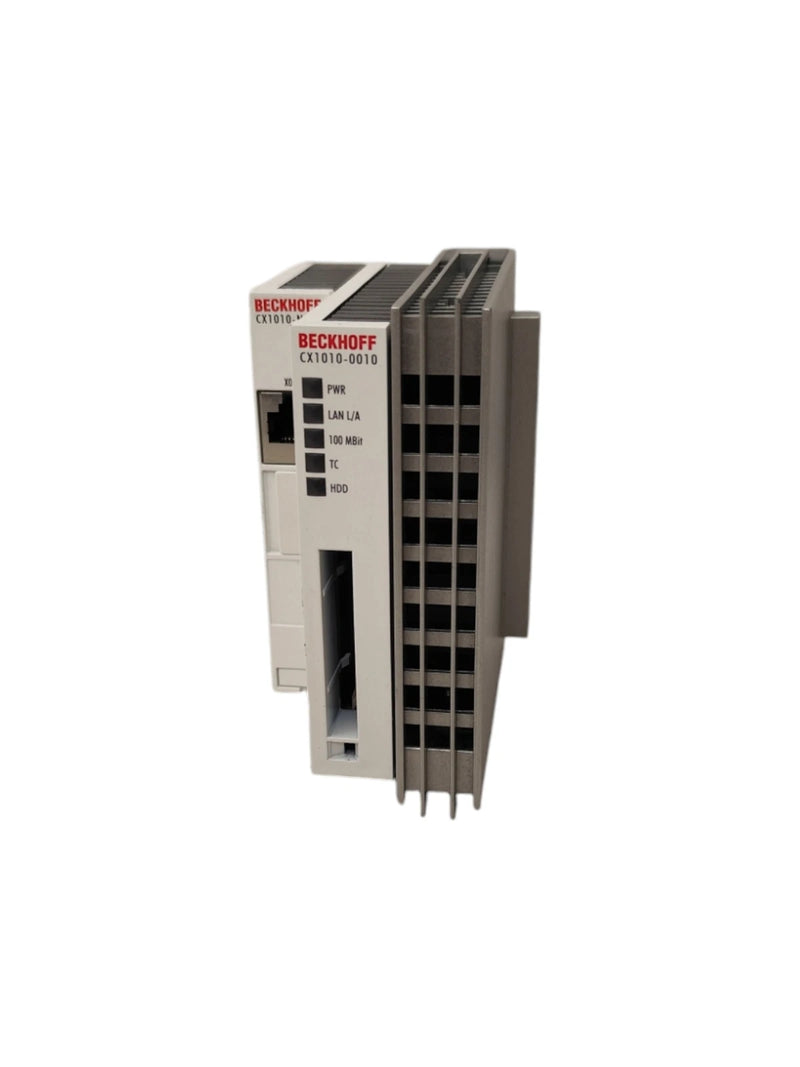

CX1010-0010 | Beckhoff BASIC CPU Module with Ethernet, COM1, and Windows CE
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CX1010-0010
Description
The Beckhoff CX1010-0010 is a BASIC CPU module designed for simple industrial control and communication tasks without integrated TwinCAT runtime. It features a single Ethernet interface, COM1 serial communication, and operates on Windows Embedded CE for lightweight embedded applications. The module is intended for DIN-rail-mounted automation systems requiring basic CPU functionality and low power consumption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation Controllers |
| Part Number | CX1010-0010 |
| Subcategory | CPU Modules |
| Controller Type | BASIC CPU Module |
| Processor | Intel Pentium MMX compatible |
| Processor Clock Speed | 500 MHz |
| Processor Cores | 1 |
| Operating System | Windows Embedded CE 6.0 |
| Control Software | None (no TwinCAT) |
| Main Memory | 256 MB DDR RAM (not expandable) |
| Flash Memory | 128 MB CompactFlash included |
| Storage Expansion | 1 × CompactFlash Type II slot |
| Ethernet Interface | 1 × RJ45, 10/100 Mbit/s |
| Serial Interface | COM1 |
| Diagnostics LEDs | Power, LAN speed, LAN activity, TC status, Flash access |
| I/O Connection | Via power module (E-bus, K-bus, IP-Link) |
| System Bus | 16-bit ISA (PC/104) |
| Real-Time Clock | Battery-backed, exchangeable battery |
| Power Supply | Via system bus (CX1100 power modules) |
| Max Power Consumption | 8 W |
| Operating Temperature | 0 to +50 °C |
| Storage Temperature | −25 to +85 °C |
| Relative Humidity | Up to 95%, no condensation |
| Protection Rating | IP20 |
| Approvals | CE, UL |
| Dimensions (W×H×D) | 58 × 120 × 91 mm |
| Weight | Approx. 355 g |
Information About CX1010-0010
The CX1010-0010 is an entry-level BASIC CPU module from Beckhoff’s CX embedded controller series, developed for modular automation architectures. It uses a processor compatible with Intel Pentium MMX technology and operates under Windows Embedded CE 6.0 without preinstalled TwinCAT control software. The module connects to Beckhoff I/O systems via E-bus, K-bus, or IP-Link through compatible CX1100 power supply modules. Its compact design, battery-backed real-time clock, and industrial compliance make it suitable for basic control, monitoring, and communication tasks in control cabinets.
Key Features:
- Basic Embedded CPU Design: Intended for control and communication tasks without integrated TwinCAT runtime.
- Intel-Compatible Processor: Single-core CPU compatible with Intel Pentium MMX architecture at 500 MHz.
- Ethernet and Serial Communication: Includes one 10/100 Mbit/s Ethernet port and COM1 serial interface.
- Windows Embedded CE Operating System: Lightweight and stable OS for embedded industrial applications.
- CompactFlash Storage Support: Type II CompactFlash slot with 128 MB card included and expandable capacity.
- Integrated Diagnostics: Status LEDs for power, LAN speed, LAN activity, TwinCAT status, and flash access.
- Industrial Environmental Compliance: Designed for operation in controlled industrial environments with IP20 protection.
The CX1010-0010 delivers the reliability and precision required for basic embedded control and industrial communication applications.
