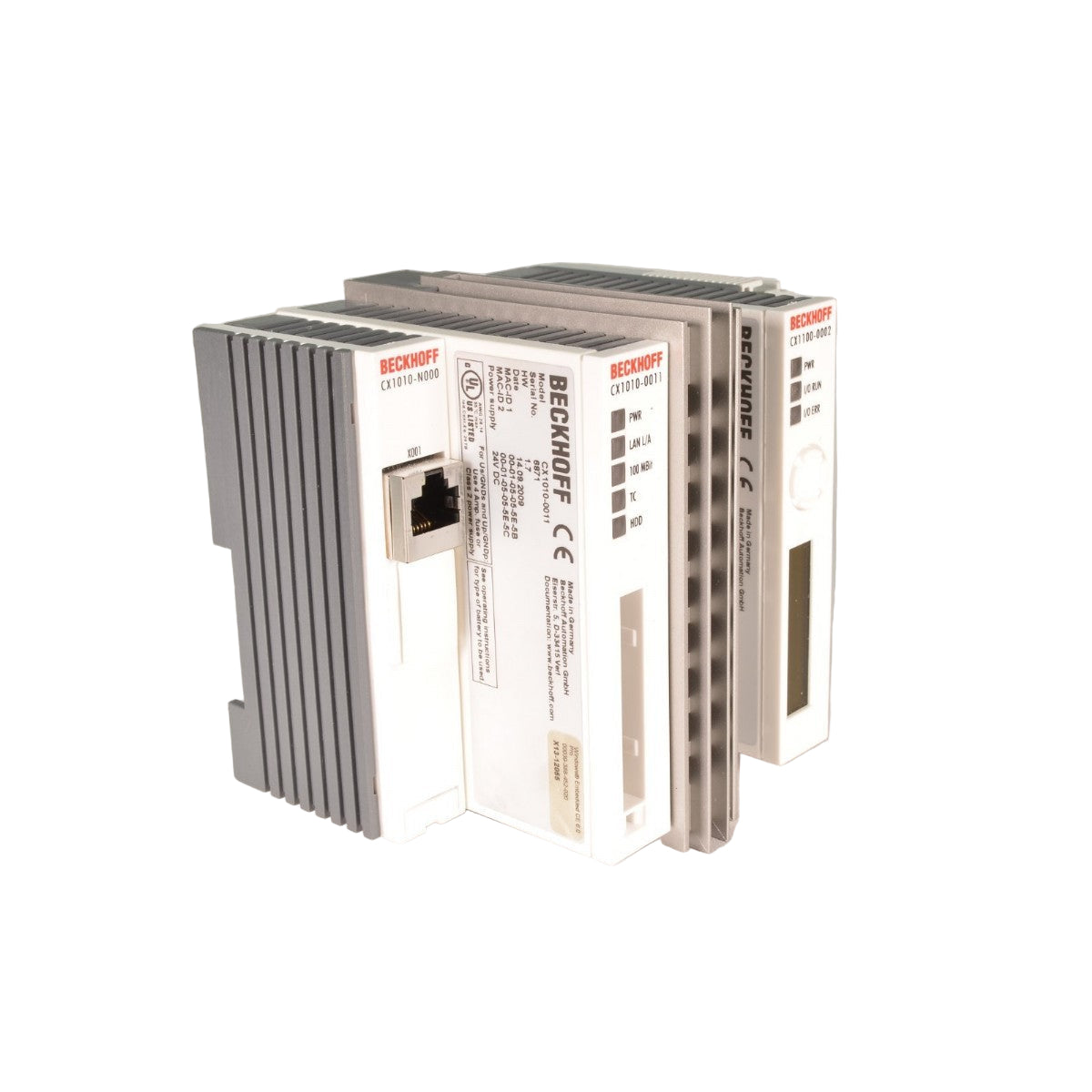

CX1010-0011 | Beckhoff Embedded PC CPU Module with Ethernet, COM1, and TwinCAT PLC Runtime
- Regular price
- $1,795.00
- Sale price
- $1,795.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX1010-0011
Description
The Beckhoff CX1010-0011 is a compact Embedded PC CPU module equipped with an Intel® Pentium® MMX-compatible processor running at 500 MHz. It features integrated Ethernet and serial communication ports, Windows CE operating system, and TwinCAT PLC runtime for reliable automation control and process management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX1010-0011 |
| Subcategory | Embedded CPU Module |
| Processor | Intel® Pentium® MMX-compatible, 500 MHz |
| Flash Memory | Compact Flash slot, 128 MB (expandable) |
| Main Memory | 256 MB DDR RAM (non-expandable) |
| Interfaces | 1 × RJ45 10/100 Mbit/s Ethernet, 1 × COM1 serial port |
| Diagnostics Indicators | Power, LAN speed, LAN activity, TC status, Flash access |
| Expansion Slot | 1 × Compact Flash Type II insert with ejector |
| Clock | Battery-backed real-time clock, exchangeable battery |
| Operating System | Microsoft Windows Embedded CE 6.0 |
| Control Software | TwinCAT 2 PLC Runtime |
| System Bus | 16-bit ISA (PC/104) |
| Power Consumption | 8 W |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Approvals | CE, UL |
| Dimensions (W × H × D) | 58 mm × 120 mm × 91 mm |
| Weight | 1.41 lbs (approx. 355 g) |
Information About CX1010-0011
The CX1010-0011 is part of Beckhoff’s CX1010 series of Embedded PC modules designed for decentralized control and automation applications. This CPU module integrates a 500 MHz Intel® Pentium® MMX-compatible processor with onboard Ethernet and COM1 communication ports, enabling direct field-level data exchange. Its architecture includes 256 MB DDR RAM and a Compact Flash slot for data storage and software deployment, supporting TwinCAT 2 PLC runtime for real-time process control. Operating under Microsoft Windows CE 6.0, it ensures system stability, fast boot times, and high compatibility within Beckhoff’s modular CX family, ideal for scalable automation tasks.
Key Features:
- Efficient CPU Performance: Features a 500 MHz Intel® Pentium® MMX-compatible processor that delivers fast response times for industrial automation applications.
- Integrated Communication Ports: Equipped with Ethernet and COM1 interfaces to support flexible field and network connectivity.
- Expandable Flash Memory: Includes a Compact Flash slot (128 MB installed) for data logging, system updates, or application storage.
- Preinstalled Control Software: Runs TwinCAT 2 PLC runtime on Windows CE for reliable and efficient process automation.
- Robust Diagnostic System: Provides LED indicators for power, LAN activity, TwinCAT status, and flash access for quick system monitoring.
- Compact and Modular Design: Built to fit seamlessly into Beckhoff’s CX system, allowing expansion with power supply, I/O, and interface modules.
- Low Power Operation: Consumes only 8 W, ensuring energy-efficient system performance in 24/7 industrial environments.
- Industrial Durability: IP20-rated protection, vibration resistance, and CE/UL approvals ensure long-term reliability in control cabinets.
The CX1010-0011 delivers the reliability and precision required for embedded automation systems, decentralized process control, and industrial machine applications.
