Product Description P/N: CX1010-0111
Description

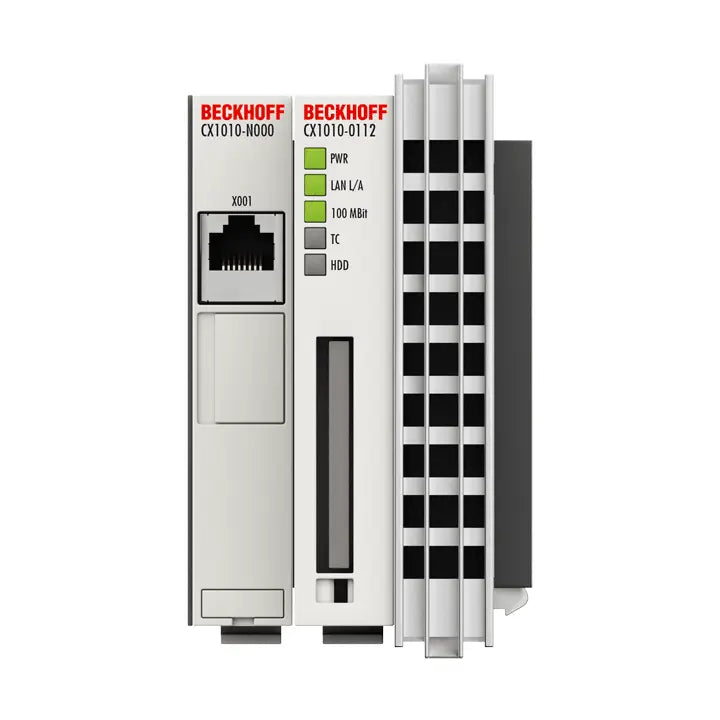

The Beckhoff CX1010-0111 is a basic CPU module designed for embedded PC control in automation systems. Equipped with an Intel Pentium MMX processor at 500 MHz, Ethernet and COM1 interfaces, and TwinCAT PLC runtime, it delivers reliable control performance with low power consumption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Embedded PCs |
| Part Number | CX1010-0111 |
| Subcategory | CPU Modules |
| Processor | Intel Pentium MMX, 500 MHz |
| Number of Cores | 1 core |
| Main Memory | 256 MB DDR RAM (not expandable) |
| Flash Memory | 128 MB CF card included, expandable via CF Type II slot with ejector |
| Operating System | Windows Embedded CE6 / Windows Embedded Standard 2009 |
| Control Software | TwinCAT 2 PLC or NC PTP runtime |
| Power Supply | Via system bus (CX1100-xxxx modules) |
| Max Power Consumption | 8 W |
| System Bus | 16-bit ISA (PC/104) |
| Interfaces | 1 × Ethernet RJ45 10/100 Mbit/s, 1 × COM1, 2 × USB, 1 × DVI |
| Diagnostics LEDs | 5 LEDs (power, LAN speed, LAN activity, TC status, flash) |
| Cooling | Passive |
| Clock | Battery-backed, exchangeable battery |
| I/O Connection | Via PSU module: E-bus, K-bus, K-bus/IP-Link |
| Expansion Slot | 1 × CF Type II slot with ejector |
| Operating Temperature | 0…+50 °C |
| Protection Rating | IP20 |
| Dimensions | Compact CPU module form factor |
| Weight | 2.25 lbs |
Information About CX1010-0111
The CX1010-0111 is a Beckhoff basic CPU module belonging to the CX series of embedded PCs for modular and scalable automation. This unit integrates a 500 MHz Intel Pentium MMX processor, 256 MB DDR RAM, and a 128 MB CompactFlash card, enabling efficient control and visualization tasks in compact control systems. It includes Ethernet, COM1, USB, and DVI interfaces for flexible connectivity and comes with Windows Embedded CE6 or Windows Embedded Standard 2009 as the operating system. With TwinCAT 2 PLC or NC PTP runtime pre-installed, the module provides powerful software integration for industrial automation applications.
Key Features:
-
Intel Pentium MMX Processor: Runs at 500 MHz with a single core, delivering stable control for automation processes.
-
Integrated Memory: Equipped with 256 MB DDR RAM and a 128 MB CompactFlash card for program and data storage.
-
Versatile Operating Systems: Supports Windows Embedded CE6 or Windows Embedded Standard 2009 for flexible system design.
-
TwinCAT Runtime Integration: Pre-installed with TwinCAT 2 PLC or NC PTP runtime for seamless control programming.
-
Multiple Interfaces: Offers Ethernet, COM1, 2 × USB, and DVI connections for communication and visualization.
-
Passive Cooling System: Operates without fans, ensuring silent, low-maintenance operation.
-
Low Power Consumption: Consumes only 8 W, reducing energy demand in continuous industrial use.
-
Compact Modular Design: Works with Beckhoff CX1100 power supply modules to expand with E-bus, K-bus, or IP-Link I/O systems.
The CX1010-0111 delivers the reliability and precision required for modular embedded PC control in industrial automation environments.
