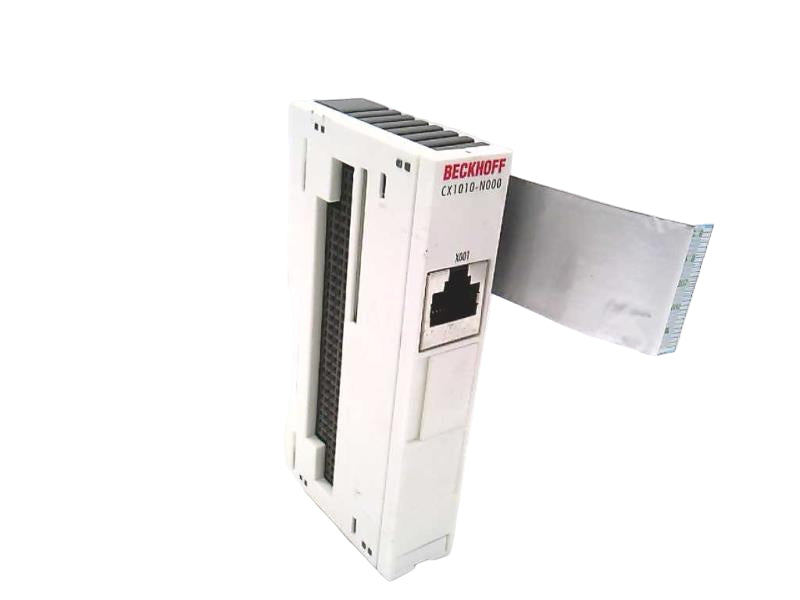

CX1010-N000 | Beckhoff Embedded PC CPU Module with Ethernet and CompactFlash
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX1010-N000
Description
The Beckhoff CX1010-N000 CPU module is a compact embedded PC designed for industrial automation applications. It integrates an Intel-compatible processor, onboard RAM, CompactFlash® storage, and an Ethernet interface, making it suitable for PLC and motion control tasks. Its modular architecture allows flexible expansion with fieldbus and I/O interfaces for scalable control solutions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Panel Accessories |
| Part Number | CX1010-N000 |
| Subcategory | Panel Accessory |
| Processor | Intel-compatible Pentium MMX, 500 MHz, 1 core |
| Main Memory | 256 MB DDR RAM (non-expandable) |
| Flash Memory | 128 MB CompactFlash® card included; expandable via Type II slot |
| Expansion Slot | 1 x CompactFlash® Type II with ejector |
| Interfaces | 1 x RJ45 Ethernet 10/100 Mbit/s |
| Operating Systems | Windows Embedded CE 6, Windows Embedded Standard 2009 |
| Control Software | TwinCAT 2 PLC runtime, TwinCAT 2 NC PTP runtime |
| System Bus | 16-bit ISA (PC/104) |
| I/O Connection | Via CX1100 power supply module (E-bus, K-bus, K-bus/IP-Link) |
| Cooling | Passive |
| Diagnostics | LEDs for power, LAN speed/activity, TC status, flash access |
| Real-time Clock | Battery-backed, exchangeable |
| Power Supply | Via CX1100-xxxx module through system bus |
| Max. Power Consumption | 8 W (CPU); 10 W (E-bus/K-bus, 5 V/2 A max.) |
| Operating Temperature | 0…50 °C |
| Storage Temperature | -25…+85 °C |
| Humidity | 95% non-condensing |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| EMC Standards | EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating | IP20 |
| Approvals/Markings | CE, UL |
| Mounting Type | DIN rail in control cabinets |
| Dimensions (W x H x D) | 58 x 120 x 91 mm |
| Weight | Approx. 355 g (0.44 lbs) |
Information About CX1010-N000
The CX1010-N000 is part of the Beckhoff CX1000 series of modular Embedded PCs. It combines the CPU, memory, and CompactFlash® storage in one unit and can be expanded with additional interfaces through its PC/104 connection. This module is designed for DIN rail mounting in control cabinets and operates with passive cooling, ensuring reliable performance in industrial environments. Compatible with TwinCAT 2 software and running Windows Embedded CE 6 or Windows Embedded Standard 2009, the CX1010-N000 can function as both a PLC and a motion controller.
Key Features:
- Compact Embedded PC design: Combines CPU, memory, and storage in a modular format for automation use.
- Processor performance: Intel Pentium-class CPU at 500 MHz with single-core architecture.
- Memory configuration: 256 MB DDR RAM and 128 MB CompactFlash® storage included, expandable via Type II slot.
- Integrated communication: One Ethernet 10/100 Mbit/s port for networking and remote programming.
- System compatibility: Supports PC/104 interface for expansion with additional Beckhoff modules.
- Control software support: Runs TwinCAT 2 PLC runtime and NC PTP motion control.
- Industrial robustness: Conforms to EN standards for shock, vibration, EMC, and IP20 protection.
- Flexible installation: Designed for DIN rail mounting within industrial control cabinets.
The CX1010-N000 delivers the reliability and precision required for industrial PLC and motion control applications.
