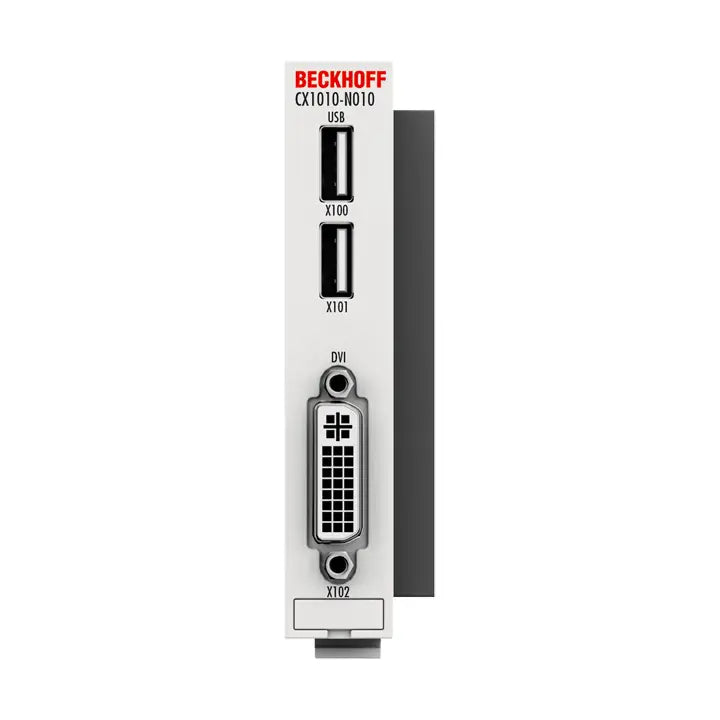

CX1010-N010 | Beckhoff System Interface Module with DVI-I and USB Ports
- Regular price
- $817.00
- Sale price
- $817.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX1010-N010
Description
The Beckhoff CX1010-N010 is a system interface module designed for CX1010 embedded PCs. It provides one DVI-I connection and two USB 2.0 ports, enabling direct connectivity for monitors, control panels, and peripheral devices. Compact and lightweight, it is optimized for seamless integration into control cabinet environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PC Components |
| Part Number | CX1010-N010 |
| Subcategory | System Interface Module |
| Interfaces | 1 × DVI, 2 × USB 2.0 (max. 500 mA per port) |
| Type of Connection | DVI-I 29-pin socket + 2 × USB type A |
| Properties | DVI-I interface also supports VGA signals (DVI-A) |
| Power Supply | Via system bus (CX1100-xxxx modules) |
| Dimensions (W × H × D) | 19 × 100 × 51 mm |
| Weight | Approx. 80 g |
| Operating Temperature | 0…+55 °C |
| Storage Temperature | –25…+85 °C |
| Relative Humidity | 95% non-condensing |
| Protection Rating | IP20 |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 compliant |
| EMC Immunity/Emission | EN 61000-6-2 / EN 61000-6-4 compliant |
| Mounting | System-integrated with CX1010 CPU module |
| Status | Factory-configured, not separable from CPU |
Information About CX1010-N010
The CX1010-N010 is an interface expansion module from Beckhoff’s CX1010 series, developed to extend embedded PC functionality. It allows the connection of Beckhoff Control Panels or standard monitors through its DVI-I port, which also carries VGA signals. Additionally, two USB 2.0 ports provide connectivity for devices such as printers, scanners, keyboards, and mass storage media. Powered directly through the system bus (via CX1100-xxxx modules), it eliminates the need for separate power connections and ensures reliable operation in industrial applications.
Key Features:
- DVI-I Connection: Supports monitors and control panels with DVI or VGA inputs.
- USB Expansion: Includes two USB 2.0 ports (max. 500 mA per port) for peripherals.
- Compact Size: Slim dimensions (19 × 100 × 51 mm) allow easy cabinet integration.
- System Bus Powered: Receives power through the PC/104 system bus, no extra PSU required.
- Robust Design: Built with industrial vibration/shock resistance for reliable performance.
- Environmental Range: Operates between 0°C and +55°C, storage down to –25°C.
- Standards Compliance: Meets EN 60068 vibration/shock and EN 61000 EMC requirements.
- Lightweight: Only approx. 80 g, reducing system load and space usage.
The CX1010-N010 delivers the reliability and functionality required for embedded PC connectivity in industrial automation.
