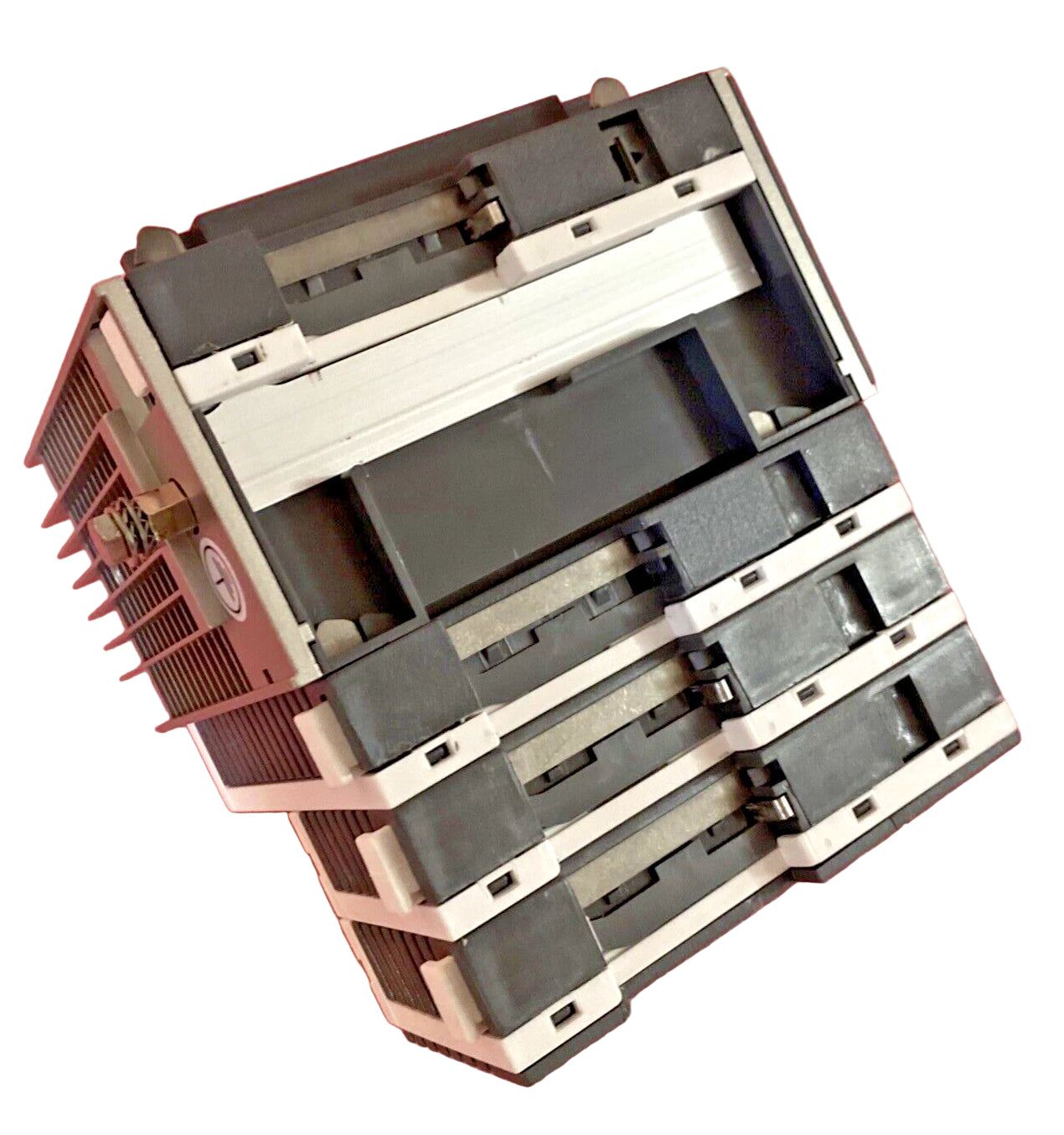

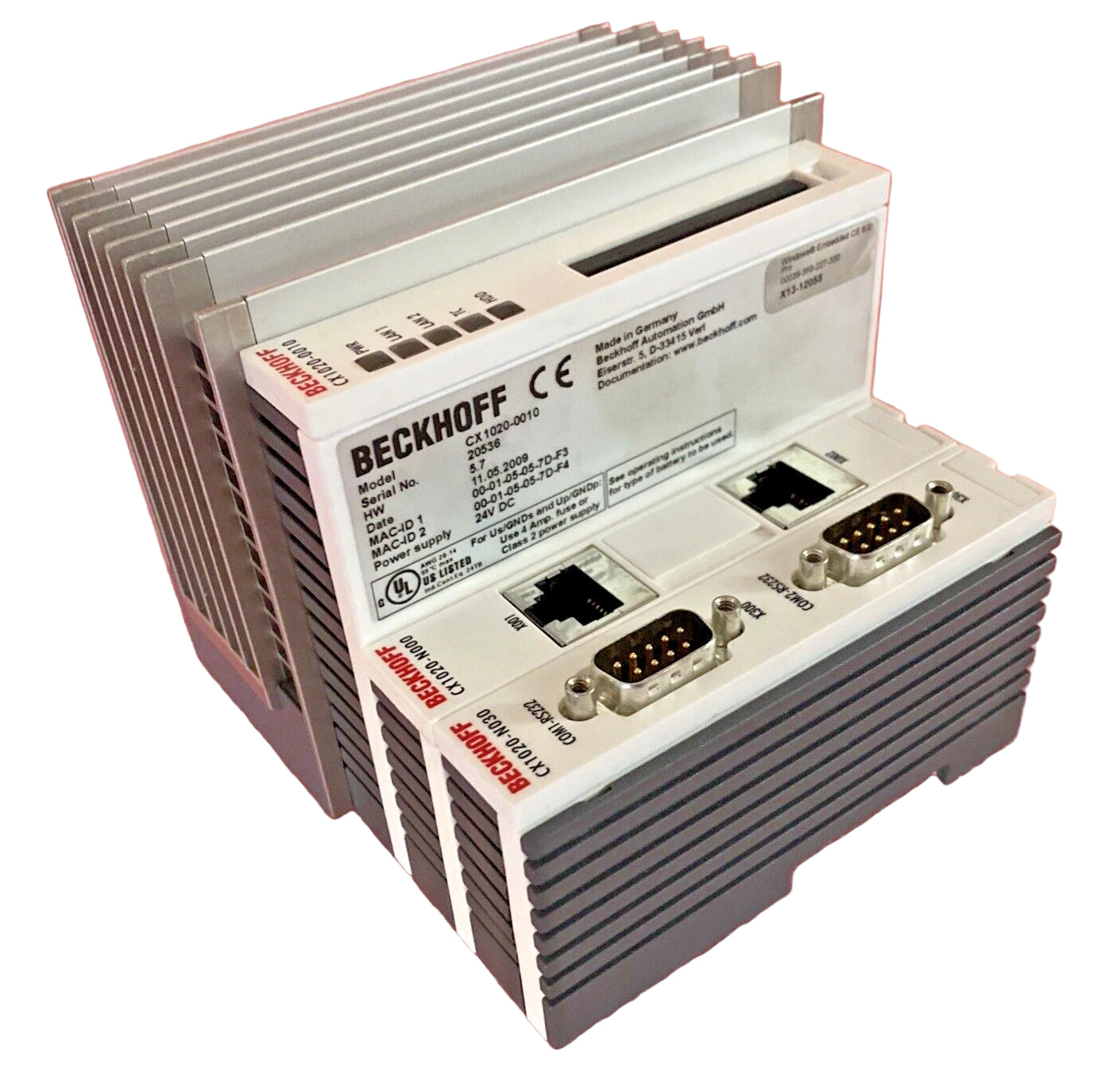

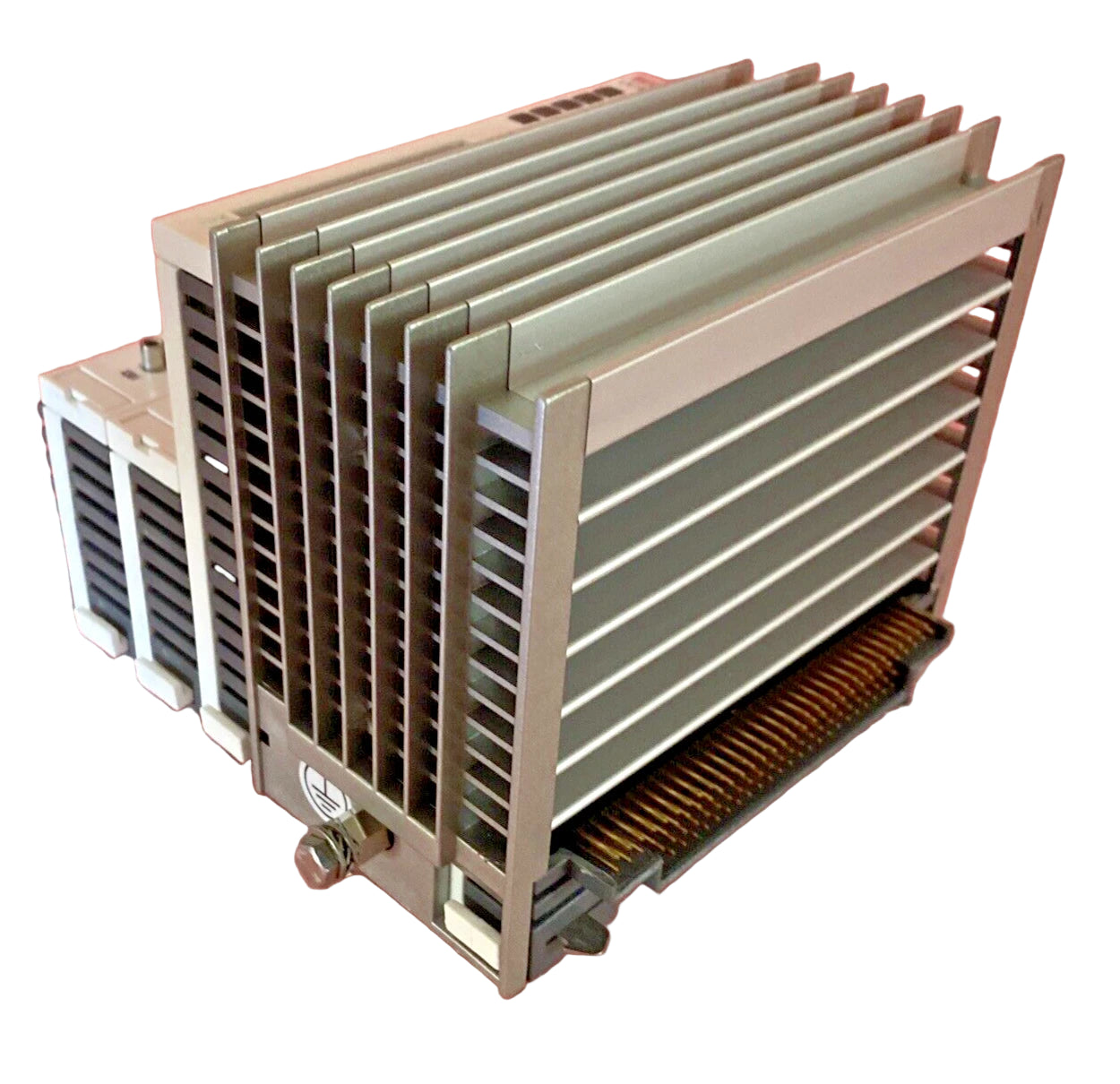

CX1020-0010 | Beckhoff Embedded PC Intel Celeron M 1 GHz Basic CPU Module
- Regular price
- $1,692.00
- Sale price
- $1,692.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX1020-0010
Description
The Beckhoff CX1020-0010 is a basic embedded PC module from the CX series, equipped with a 1 GHz Intel® Celeron® M ULV processor. With passive cooling, dual Ethernet interfaces, and modular I/O expansion, it provides compact and efficient computing power for automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Embedded PCs |
| Part Number | CX1020-0010 |
| Subcategory | CPU Modules |
| Processor | Intel® Celeron® M ULV, 1 GHz |
| CPU Cores | 1 core |
| Main Memory | 256 MB DDR RAM (expandable up to 1 GB) |
| Flash Memory | Compact Flash slot, 128 MB CF card included |
| Expansion Slot | 1 × CF I/II with eject mechanism |
| Operating System | Windows CE 6 / Windows Embedded Standard 2009 |
| Control Software | TwinCAT 2 PLC, NC PTP, NC I runtimes |
| Cooling | Passive (optional active factory-installed) |
| System Bus | 16-bit ISA (PC/104) |
| Interfaces | 2 × RJ45 Ethernet 10/100 Mbps (internal switch) |
| I/O Connection | Via power supply module: E-bus, K-bus, IP-Link |
| Diagnostics LEDs | Power, LAN (2× Link/Act), TwinCAT status, Flash access |
| Clock | Battery-backed RTC, exchangeable battery |
| Max Power Consumption | 11 W |
| Power Supply | Via system bus (CX1100-xxxx modules) |
| Enclosure Protection | IP20 |
| Operating Temperature | 0…+50 °C |
| Storage Temperature | -25…+85 °C |
| Relative Humidity | Max. 95%, non-condensing |
| Dimensions (W × H × D) | 96 mm × 112 mm × 99 mm |
| Weight | 1.21 lbs |
Information About CX1020-0010
The CX1020-0010 belongs to Beckhoff’s CX1020 Embedded PC series, offering scalable performance for industrial control applications. This version integrates a 1 GHz Intel® Celeron® M processor, 256 MB DDR RAM, and a Compact Flash slot with 128 MB included. It is designed for modular expandability, supporting E-bus, K-bus, and IP-Link I/O systems, allowing flexibility in system configuration. With dual Ethernet ports, integrated TwinCAT runtime support, and low 11 W power consumption, it provides an efficient control platform for a wide range of automation environments.
Key Features:
-
Intel Celeron M Processor: Operates at 1 GHz with a single-core architecture for stable automation performance.
-
Expandable Memory and Storage: Includes 256 MB DDR RAM and a 128 MB Compact Flash card, expandable via CF slot.
-
Integrated Communication: Equipped with two 10/100 Mbps Ethernet ports with internal switch functionality.
-
Flexible I/O Connectivity: Compatible with Beckhoff E-bus, K-bus, and IP-Link modules for scalable expansion.
-
Reliable Cooling Concept: Passive cooling design with optional factory-installed active cooling.
-
Low Power Consumption: Consumes only 11 W, making it suitable for energy-conscious control applications.
-
Comprehensive Software Support: Compatible with TwinCAT 2 PLC, NC PTP, and NC I runtimes for versatile automation control.
-
Industrial-Grade Design: Compact IP20 housing, battery-backed RTC, and diagnostics LEDs for reliable operation.
The CX1020-0010 delivers the reliability and precision required for modular embedded PC control in industrial automation systems.
