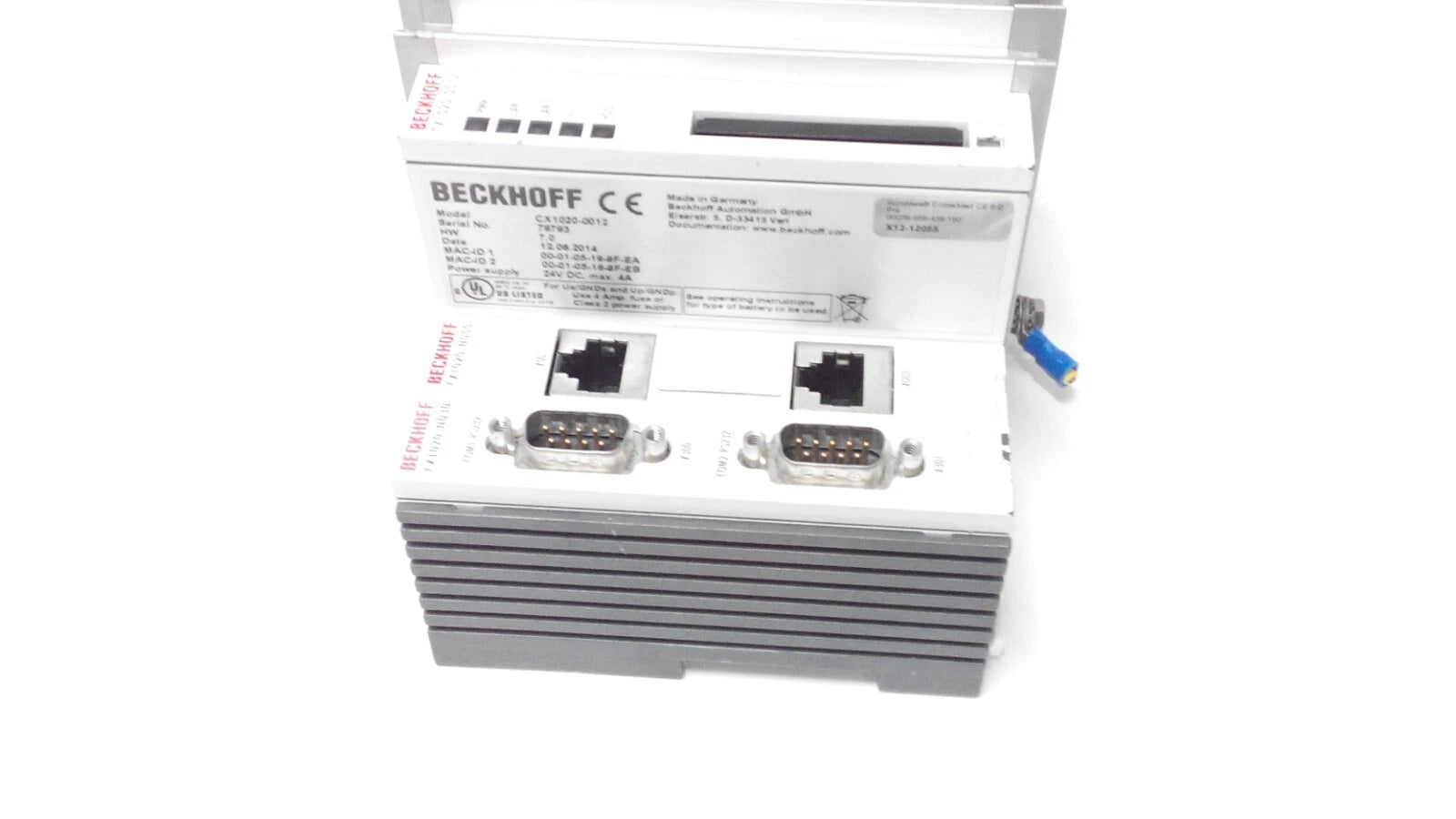

CX1020-0012 | Beckhoff BASIC CPU Module with Dual Ethernet and TwinCAT 2 Runtime
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CX1020-0012
Description
The Beckhoff CX1020-0012 is a BASIC CPU module designed for compact PLC and motion control applications in industrial automation systems. It features dual Ethernet connectivity, Windows Embedded CE operation, and TwinCAT PLC/NC runtime support. The module is optimized for DIN-rail-mounted control cabinets requiring reliable and efficient embedded control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation Controllers |
| Part Number | CX1020-0012 |
| Subcategory | CPU Modules |
| Controller Type | BASIC CPU Module |
| Processor | Intel Celeron M ULV, 1 GHz |
| Processor Cores | 1 |
| Operating System | Windows Embedded CE 6 / Standard 2009 |
| Control Software | TwinCAT 2 PLC, NC PTP & NC I Runtime |
| Main Memory | 256 MB DDR RAM (upgradable to 1 GB) |
| Included Flash Memory | 128 MB CompactFlash card |
| Storage Expansion | 1 × CompactFlash Type I/II slot |
| Ethernet Interfaces | 2 × RJ45, 10/100 Mbit/s (internal switch) |
| Diagnostics LEDs | Power, 2 × LAN, TC status, Flash access |
| I/O Connection | Via power module (E-bus, K-bus, IP-Link) |
| System Bus | 16-bit ISA (PC/104) |
| Real-Time Clock | Battery-backed, exchangeable battery |
| Cooling | Passive (optional active cooling) |
| Power Consumption | Max. 11 W |
| Operating Temperature | 0 to +50 °C |
| Protection Rating | IP20 |
| Power Supply | Via system bus (CX1100 power modules) |
| Weight | Approx. 220 g |
Information About CX1020-0012
The CX1020-0012 is part of Beckhoff’s CX embedded controller series and serves as an entry-level CPU for modular automation systems. It is powered by an Intel Celeron M ULV processor and operates with Windows Embedded CE, providing a stable platform for deterministic control tasks. The module connects to Beckhoff I/O systems via E-bus, K-bus, or IP-Link through compatible power supply modules. Integrated diagnostics, battery-backed real-time clock, and expandable memory make it suitable for continuous industrial operation.
Key Features:
- Intel Celeron M ULV Processor: Single-core 1 GHz CPU for reliable PLC and motion control execution.
- Dual Ethernet Interfaces: Two 10/100 Mbit/s RJ45 ports with internal switch for network integration.
- TwinCAT 2 Runtime Support: Enables PLC, NC PTP, and NC I control applications.
- Windows Embedded CE Operating System: Provides a lightweight and stable embedded control environment.
- Expandable Memory and Storage: Includes 256 MB DDR RAM and CompactFlash slot with expandable capacity.
- Integrated Diagnostics: Status LEDs for power, LAN activity, TwinCAT state, and flash access.
- Passive Cooling Design: Fanless operation with optional active cooling for extended use cases.
The CX1020-0012 delivers the reliability and precision required for compact PLC and motion control applications in industrial automation systems.
