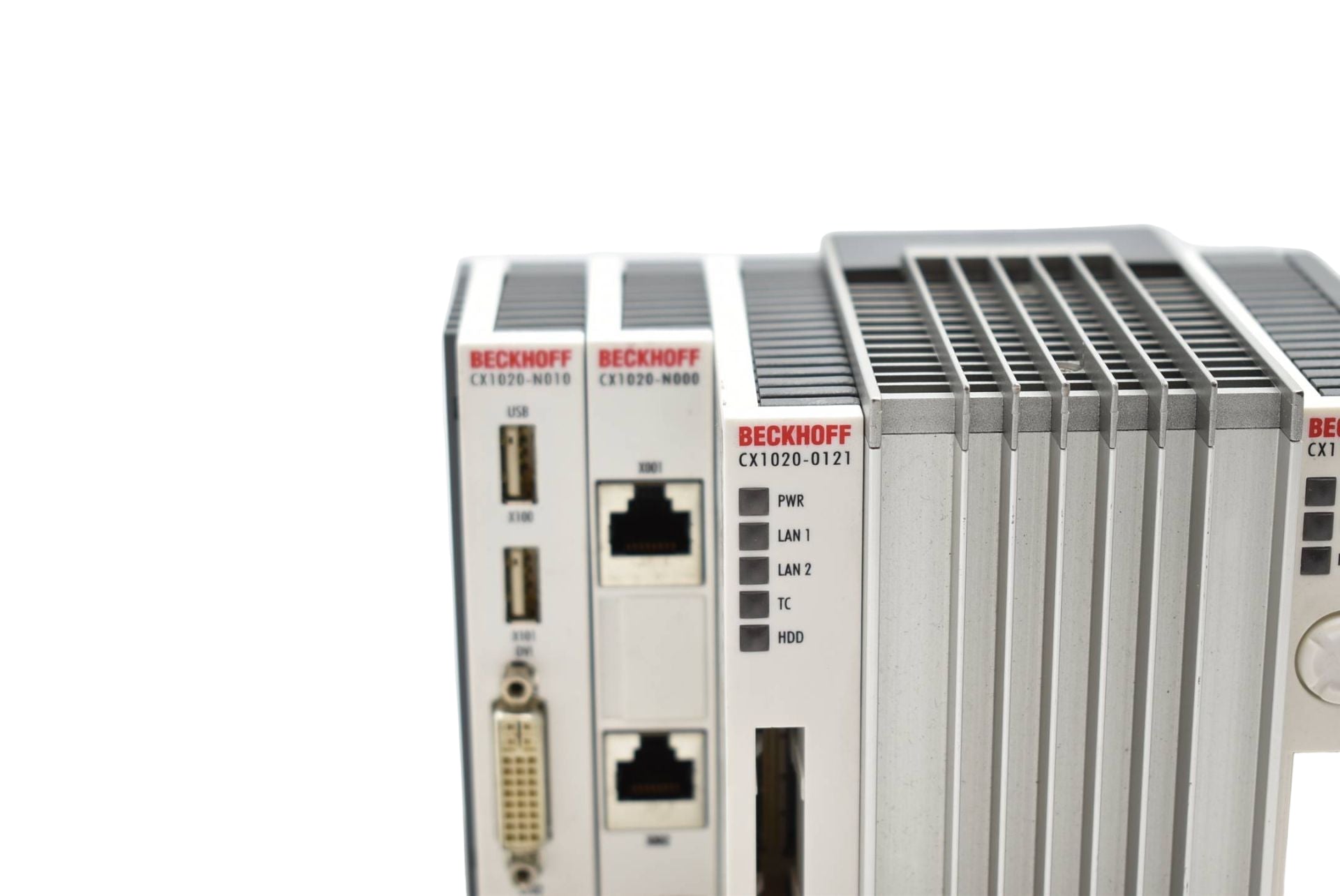

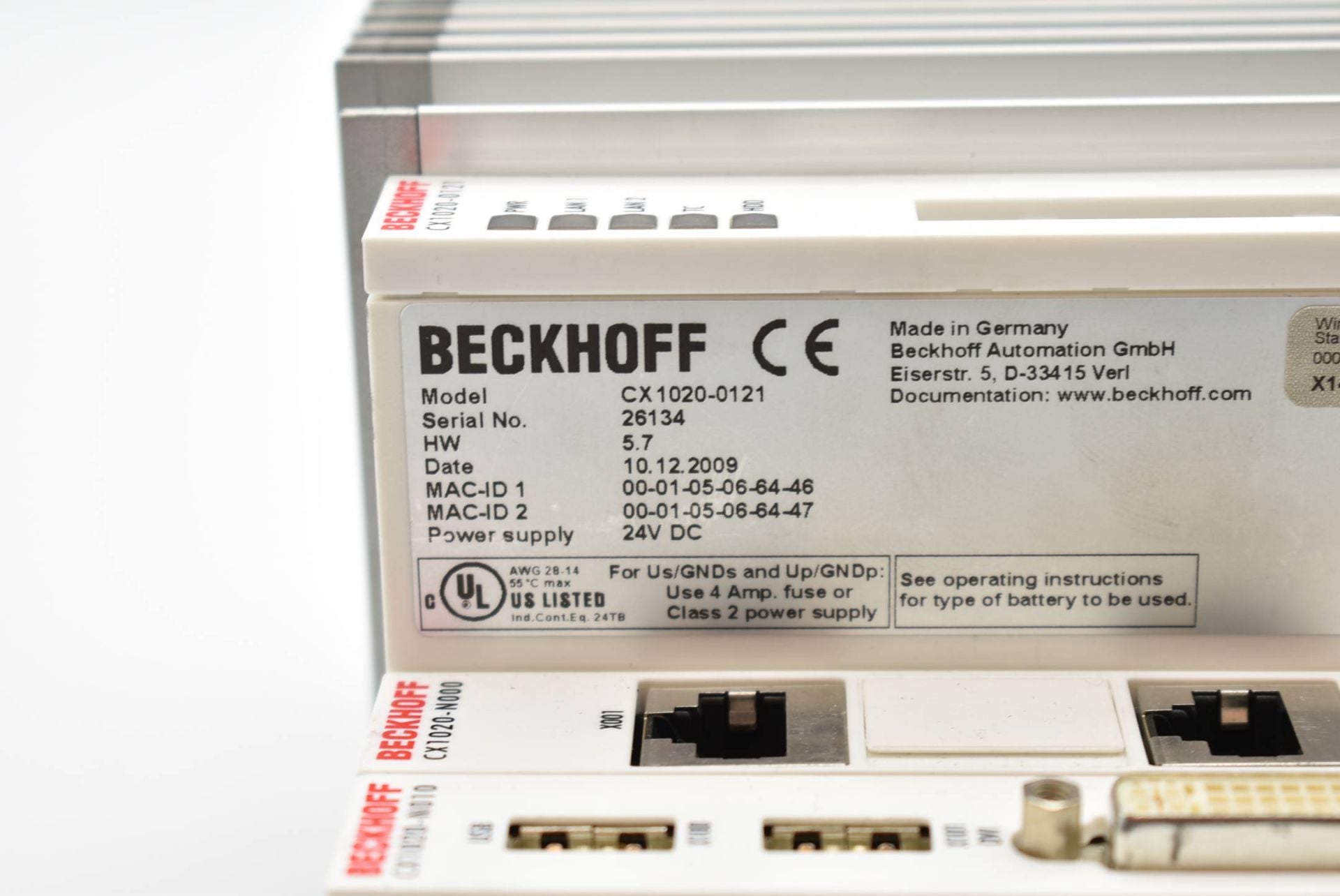

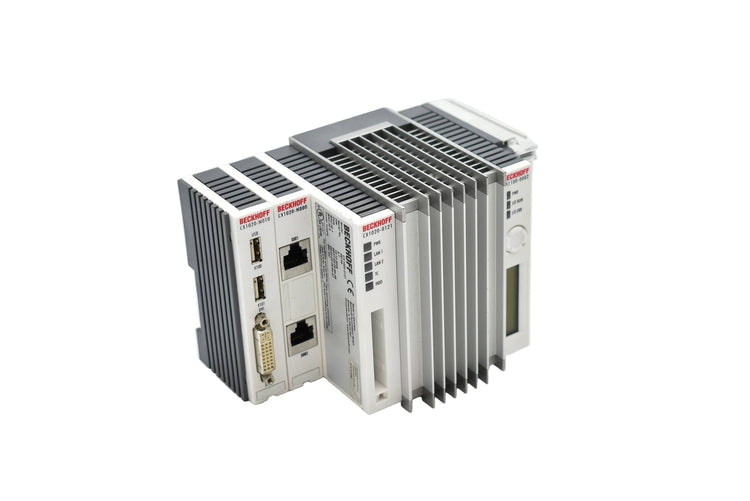

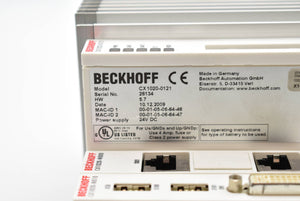

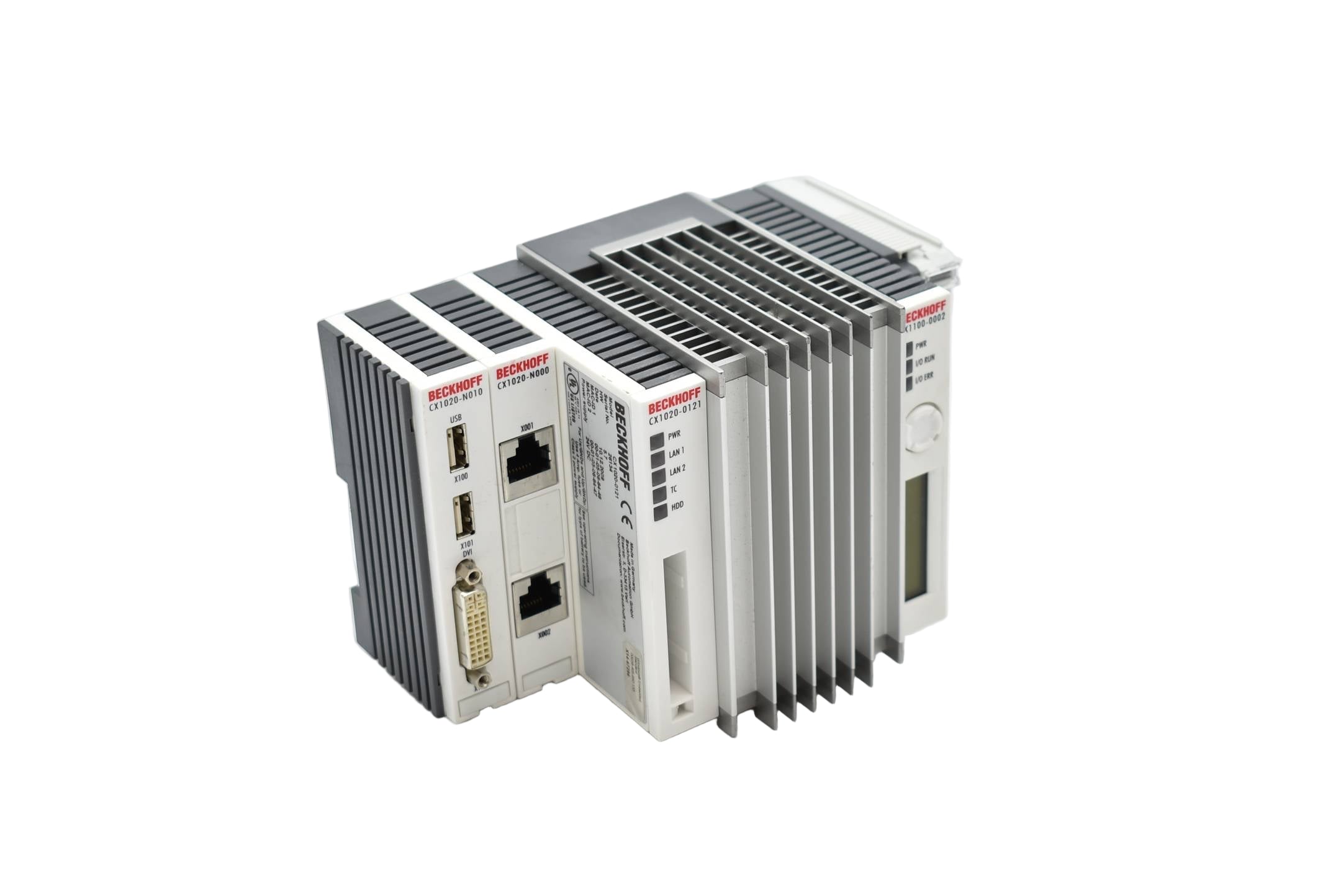

CX1020-0121 | Beckhoff Embedded PC Intel Celeron M 1 GHz with TwinCAT Runtime
- Regular price
- $3,650.00
- Sale price
- $3,650.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX1020-0121
Description
The Beckhoff CX1020-0121 is an embedded PC module powered by a 1 GHz Intel® Celeron® M ULV processor, designed for modular automation systems. With 256 MB DDR RAM, TwinCAT PLC runtime, and passive cooling, it provides efficient and compact control performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Embedded PCs |
| Part Number | CX1020-0121 |
| Subcategory | CPU Modules |
| Processor | Intel® Celeron® M ULV, 1 GHz |
| CPU Cores | 1 core |
| Main Memory | 256 MB DDR RAM (expandable up to 1 GB) |
| Flash Memory | Compact Flash slot, 128 MB included, expandable |
| Operating System | Windows Embedded Standard 2009 |
| Control Software | TwinCAT 2 PLC runtime |
| Cooling | Passive (optional active cooling factory-installed) |
| System Bus | 16-bit ISA (PC/104) |
| Interfaces | 2 × RJ45 Ethernet 10/100 Mbps (internal switch), 2 × USB, 1 × DVI-I |
| I/O Connection | Via power supply module (E-bus, K-bus, K-bus/IP-Link) |
| Diagnostics LEDs | 1 × Power, 2 × LAN Link/Activity, 1 × TwinCAT Status, 1 × Flash Access |
| Clock | Battery-backed real-time clock with replaceable battery |
| Max Power Consumption | 11 W |
| Power Supply | Via system bus, requires CX1100-xxxx module |
| Enclosure Protection | IP20 |
| Operating Temperature | 0…+50 °C |
| Storage Temperature | -25…+85 °C |
| Relative Humidity | Max. 95%, non-condensing |
| Dimensions (W × H × D) | 96 mm × 112 mm × 99 mm |
| Weight | Approx. 550 g |
Information About CX1020-0121
The CX1020-0121 is part of Beckhoff’s CX1020 series of embedded PCs, which provide scalable control solutions for automation applications. This unit integrates a 1 GHz Intel® Celeron® M processor with up to 1 GB of DDR RAM, making it capable of running PLC programs, visualization, and motion control applications. It operates on Windows Embedded Standard 2009 and includes TwinCAT 2 PLC runtime, enabling seamless integration into Beckhoff’s automation ecosystem. With multiple interfaces including Ethernet, USB, and DVI, along with E-bus and K-bus I/O connectivity, the module offers flexibility for different system designs while maintaining a compact form factor.
Key Features:
-
Intel Celeron M ULV Processor: Provides 1 GHz processing power with low energy consumption for stable automation tasks.
-
Integrated TwinCAT Runtime: Ships with TwinCAT 2 PLC runtime, supporting advanced control and motion applications.
-
Expandable Memory Options: Equipped with 256 MB DDR RAM, expandable to 1 GB, and Compact Flash storage with 128 MB included.
-
Multiple Connectivity Interfaces: Includes 2 Ethernet ports, 2 USB connections, and a DVI-I output for versatile integration.
-
Flexible I/O Support: Connects via Beckhoff’s E-bus, K-bus, or K-bus/IP-Link for modular system expansion.
-
Reliable Passive Cooling: Fanless design reduces maintenance needs while ensuring stable thermal performance.
-
Low Power Consumption: Operates with only 11 W, supporting energy-efficient industrial systems.
-
Compact Industrial Design: Small footprint with IP20 protection, suitable for installation in control cabinets.
The CX1020-0121 delivers the reliability and precision required for embedded industrial PC control in modular and scalable automation systems.
