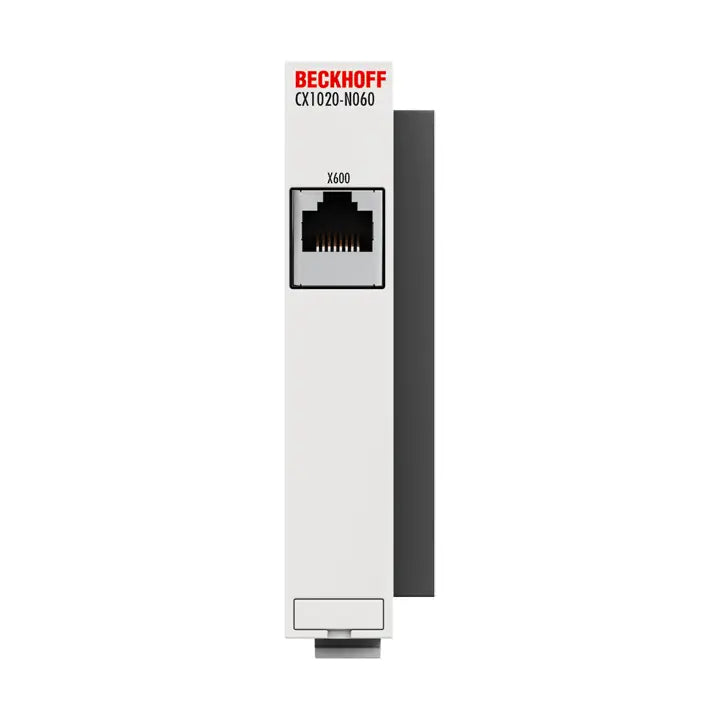

CX1020-N060 | Beckhoff Ethernet Interface Module for CX1020 Controllers (10/100 Mbit/s)
- Regular price
- $932.00
- Sale price
- $932.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CX1020-N060
Description
The Beckhoff CX1020-N060 is an Ethernet interface module designed to expand CX1020 CPU units with an additional internal LAN connection. It provides a 10/100 Mbit/s Ethernet interface via RJ45 for industrial communication tasks. The module integrates directly into the CX system architecture and is intended for cabinet-mounted automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation Controllers |
| Part Number | CX1020-N060 |
| Subcategory | Interface Modules |
| Interface Type | Ethernet |
| Ethernet Speed | 10/100 Mbit/s |
| Connection Type | 1 × RJ45 |
| Cable Length | Max. 20 m (Cat. 5) |
| Power Supply | Via system bus (CX1100 power supply modules) |
| Compatibility | CX1020 CPUs only |
| Protection Rating | IP20 |
| Relative Humidity | Up to 95%, no condensation |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | −25 to +85 °C |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| Dimensions (W×H×D) | 19 × 100 × 51 mm |
| Weight | Approx. 80 g |
Information About CX1020-N060
The CX1020-N060 is an interface expansion module developed specifically for Beckhoff CX1020 embedded CPU systems. It implements the second internal LAN controller, enabling additional Ethernet connectivity within the controller architecture. The module is powered directly through the system bus via compatible CX1100 power supply modules, eliminating the need for a separate power connection. It is designed for reliable operation in industrial environments and must be added to an existing CX1020 unit, with noted compatibility restrictions.
Key Features:
- Ethernet Interface Expansion: Adds a secondary 10/100 Mbit/s Ethernet connection to CX1020 CPU units.
- RJ45 Connection: Provides a standard RJ45 port for industrial Ethernet communication.
- Internal LAN Controller Implementation: Implements the second internal LAN controller of the CX1020 system.
- System Bus Power Supply: Powered directly via the system bus through CX1100 power supply modules.
- Compact Module Design: Slim form factor optimized for DIN-rail-mounted control cabinets.
- Industrial Environmental Compliance: Designed to operate under vibration, shock, and EMC standards.
- CX1020-Specific Integration: Intended exclusively for use with CX1020 CPUs and not combinable with CX1100-0004.
The CX1020-N060 delivers the reliability and precision required for expanding Ethernet connectivity in CX1020-based industrial control systems.
