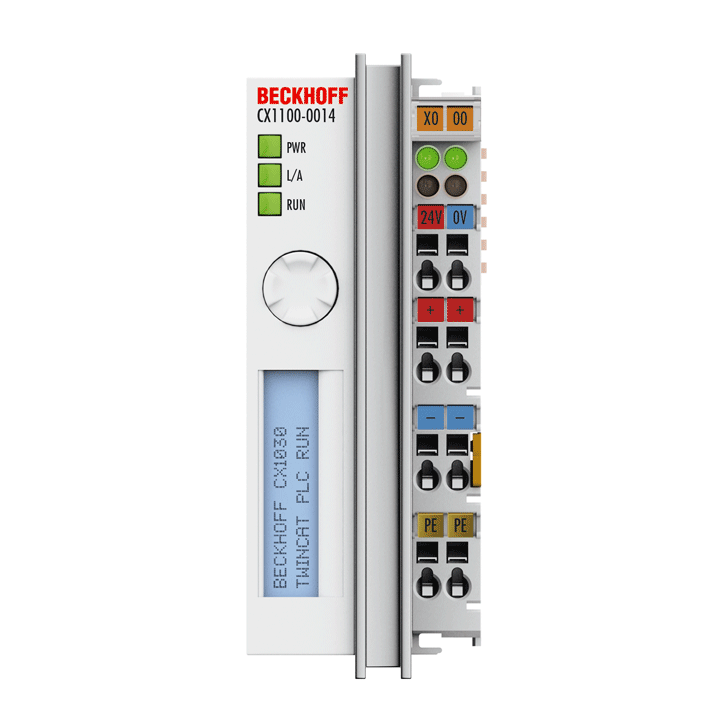

CX1100-0014 | Beckhoff Power Supply Unit with E-bus Interface for CX1030 24 V DC
- Regular price
- $1,344.00
- Sale price
- $1,344.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX1100-0014
Description
The Beckhoff CX1100-0014 is a power supply and I/O interface module designed for CX1030 Embedded PC systems. It provides 24 V DC input with E-bus connectivity for EtherCAT Terminals, featuring an integrated 8 kB NOVRAM for data retention and a two-line illuminated LC display for system and user messages.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX1100-0014 |
| Subcategory | Power Supply Unit |
| Compatible Systems | CX1030, CX1020, CX1010 |
| Power Supply | 24 V DC (-15% / +20%) |
| Current Supply (E-bus) | 2 A (max. 1.75 A for EtherCAT Terminals) |
| I/O Connection | E-bus (adapter terminal) |
| NOVRAM | 8 kB integrated |
| Display | FSTN LC display, 2 lines × 16 characters, illuminated |
| Diagnostics LEDs | PWR, L/A, Run |
| Connection Type | Spring-loaded terminal |
| Cooling | Passive, with internal heat sink and ventilation apertures |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 42 × 109 × 92 mm |
| Weight | Approx. 235 g |
Information About CX1100-0014
The CX1100-0014 belongs to Beckhoff’s CX1100 power supply family, tailored for Embedded PC systems such as the CX1030. Beyond supplying 24 V DC power to the CPU and connected modules, this variant serves as an E-bus interface, enabling direct connection of Beckhoff EtherCAT Terminals (ELxxxx). It supports up to 1.75 A of E-bus current, providing a robust backbone for complex I/O architectures. The integrated 8 kB NOVRAM ensures fail-safe storage of process data, while its backlit two-line LC display facilitates system diagnostics and user interaction. Equipped with internal heat dissipation and spring-loaded connections, the CX1100-0014 offers secure performance and ease of installation in industrial environments.
Key Features:
- E-bus Connectivity: Allows direct connection of EtherCAT Terminals, extending the I/O capabilities of CX1030-based systems.
- Integrated NOVRAM: Provides 8 kB of non-volatile memory for reliable process data retention during power interruptions.
- Visual System Feedback: Features a backlit FSTN display (2×16 characters) for displaying system and user messages.
- Comprehensive Diagnostics: Includes LEDs for power (PWR), link/activity (L/A), and run status to simplify monitoring.
- Efficient Power Distribution: Supplies 24 V DC input and delivers up to 2 A for E-bus components, ensuring stable system performance.
- Compact, Modular Design: Fits seamlessly into Beckhoff’s CX system architecture with easy field replacement capability.
- Enhanced Cooling and Ventilation: Integrated heat sink design ensures long-term operation in control cabinet environments.
- High Environmental Tolerance: Operates reliably from 0°C to +55°C and up to 95% humidity for industrial-grade durability.
The CX1100-0014 delivers the reliability and precision required for continuous operation of CX1030 Embedded PC systems with EtherCAT I/O expansion.
