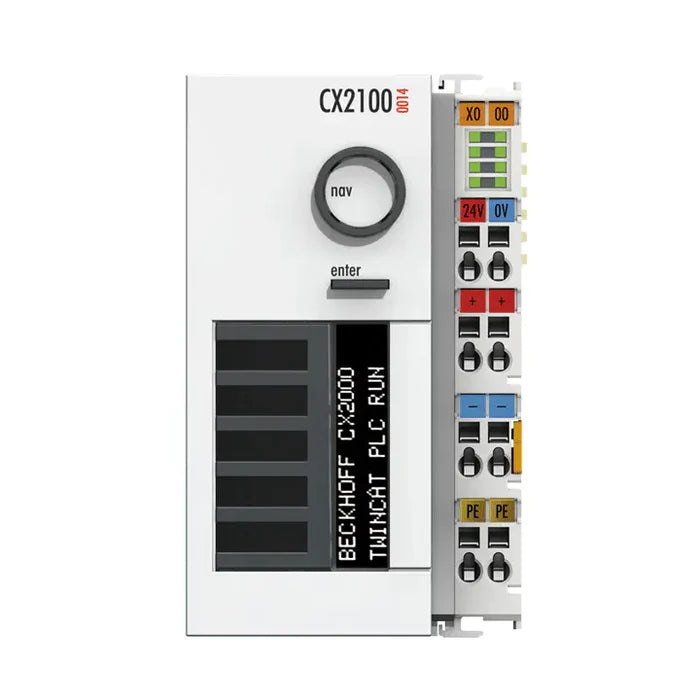

CX2100-0014 | Beckhoff Power Supply Module for CX20xx Embedded PC with Integrated UPS
- Regular price
- $919.00
- Sale price
- $919.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX2100-0014
Description
The Beckhoff CX2100-0014 is a 24 VDC power supply module designed for use with CX20xx embedded PC systems. It provides regulated system power along with integrated UPS functionality to maintain system integrity during power loss. This module ensures stable operation of embedded controllers in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Power Supply Module |
| Part Number | CX2100-0014 |
| Subcategory | Embedded PC Power Supply |
| Power Input | 24 VDC (–15% / +20%) |
| Maximum Power Output | 130 W |
| UPS Function | Capacitor-based energy storage |
| I/O Bus Support | E-bus or K-bus (auto recognition) |
| Current Supply to I/O | 2 A |
| Power Consumption | Max. 3.5 W |
| Connection Type | Spring-loaded terminals |
| Diagnostics | PWR, I/O Run, I/O Err LEDs |
| Display | 2×16 FSTN illuminated text display |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 60 × 100 × 91 mm |
| Operating Temperature | –25…+60 °C |
| Storage Temperature | –40…+85 °C |
| Relative Humidity | 95%, non-condensing |
| Approvals | CE, UL |
Information About CX2100-0014
The CX2100-0014 is part of the Beckhoff CX2100 power supply family, developed to deliver stable and uninterrupted power to CX embedded controllers. It operates on a 24V DC input and integrates an uninterruptible power supply (UPS) with capacitor-based energy storage, ensuring controlled system shutdown during power loss. This design prevents data corruption and reduces downtime. The module supplies system power to the CX CPU, system interfaces, and I/O components, and it includes built-in diagnostics and status LEDs for monitoring power and UPS status. Its compact form factor allows direct attachment to the side of CX20xx CPUs, simplifying installation and reducing panel space requirements.
Key Features:
- Design: Power supply module with integrated UPS for CX embedded PCs.
- Input Voltage: Operates on 24V DC input power.
- UPS Function: Capacitor-based energy storage enables safe system shutdown.
- Compatibility: Designed for use with Beckhoff CX20xx series embedded PCs.
- Diagnostics: Status LEDs indicate power and UPS condition.
- Reliability: Prevents data loss and reduces downtime during power interruptions.
- Installation: Compact, side-mounted design for space-saving integration.
- Application Range: Suitable for machine control, process automation, and industrial PC-based systems.
The CX2100-0014 delivers the stable power, backup capability, and reliability required for continuous operation of Beckhoff embedded PC control systems.
