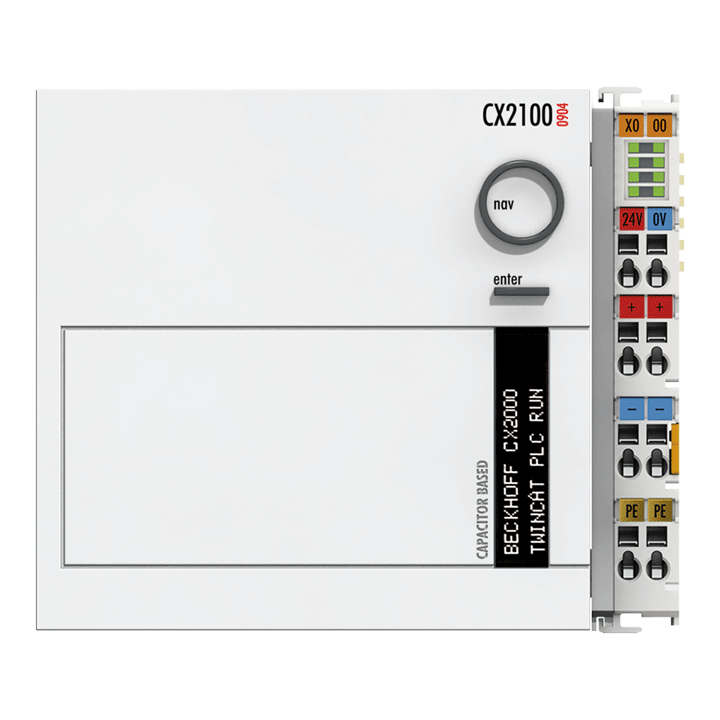

CX2100-0904 | Beckhoff Power Supply Unit with Integrated Capacitive UPS for CX2033 Controller
- Regular price
- $1,724.00
- Sale price
- $1,724.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX2100-0904
Description
The Beckhoff CX2100-0904 is a compact 24 V DC power supply unit with an integrated capacitive UPS, designed for use with CX2033 controller systems. It delivers up to 45 W output power and ensures safe data storage and system shutdown in case of power failure, providing high reliability for industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX2100-0904 |
| Subcategory | Power Supply Unit |
| Power Supply | 24 V DC (-15% / +20%) |
| Max. Power Output | 45 W |
| UPS Type | Integrated capacitive UPS |
| UPS Capacity | 75 As |
| Compatible Controllers | CX2020, CX2030, CX2033 |
| Not Suitable For | CX2040, CX2042, CX2062, CX2072 |
| I/O Connection | E-bus or K-bus (automatic recognition) |
| Current Supply to I/O Bus | 2 A at 5 V DC |
| Display | FSTN LC display, 2 lines × 16 characters, illuminated |
| Diagnostics Indicators | 1× PWR, 1× I/O Run, 1× I/O Err |
| Control Interface | TwinCAT software |
| Cooling | Passive (fanless design) |
| Max. Power Loss | 3.5 W |
| Power Consumption (E-bus/K-bus) | 10 W (5 V / max. 2 A) |
| Connection Type | Spring-loaded terminal |
| Operating Temperature | -25°C to +50°C |
| Storage Temperature | -25°C to +60°C |
| Dimensions (W × H × D) | 118 × 100 × 91 mm |
| Weight | Approx. 1025 g |
Information About CX2100-0904
The CX2100-0904 is part of Beckhoff’s modular CX controller system series, serving as a power supply and uninterruptible power module for compact industrial control PCs. It provides 24 V DC input with 45 W maximum output and integrates a capacitive UPS system to safeguard data during power loss by allowing orderly system shutdown. The module connects to CX2033 and similar models through an automatically recognized E-bus or K-bus interface, supplying 2 A at 5 V DC to the I/O terminals. Its FSTN LC display and diagnostic LEDs offer clear status visibility, while the fanless, passively cooled housing supports stable operation over a wide temperature range from -25°C to +50°C, ensuring dependable use in harsh environments.
Key Features:
- Integrated Capacitive UPS: Provides backup power for safe data saving and controlled system shutdown during outages, preventing data corruption.
- High Efficiency Power Supply: Delivers stable 24 V DC output with up to 45 W power for reliable operation of CX2033 system modules.
- Wide Compatibility: Designed for CX2020, CX2030, and CX2033 controllers with automatic E-bus or K-bus detection.
- Comprehensive Monitoring: Features an illuminated 2×16-character FSTN LC display for real-time status visualization and configuration.
- Robust Diagnostic System: Equipped with LED indicators (PWR, I/O Run, I/O Err) for continuous monitoring of system conditions.
- Passive Cooling Design: Fanless operation ensures low noise, minimal maintenance, and long service life in industrial environments.
- High Environmental Tolerance: Operates in extended temperature ranges from -25°C to +50°C for reliable field performance.
- Secure Connection System: Spring-loaded terminals guarantee strong electrical connections and easy installation.
The CX2100-0904 delivers the reliability and precision required for uninterrupted operation of Beckhoff CX controller systems in industrial automation environments.
