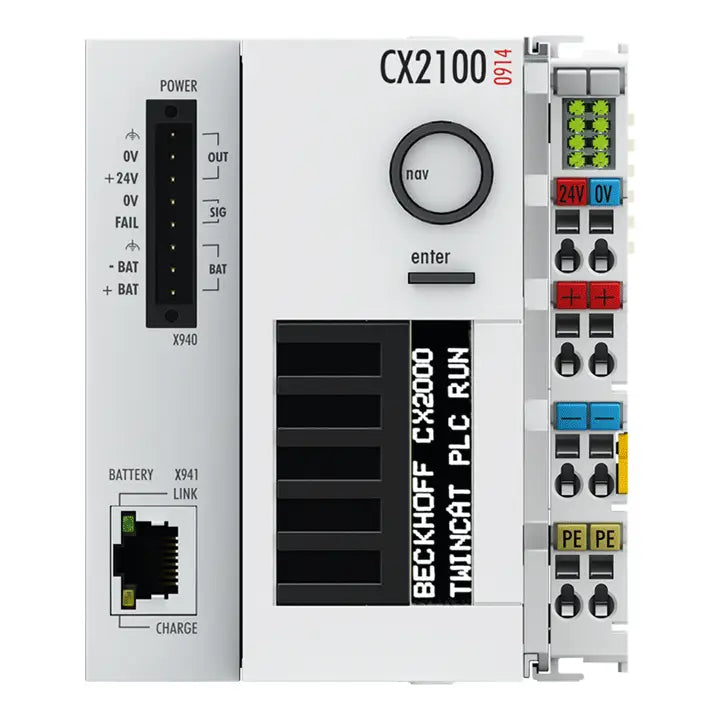

CX2100-0914 | Beckhoff 24 VDC 100 W Power Supply and UPS Module for CX20x3/CX2042 Systems
- Regular price
- $465.00
- Sale price
- $465.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX2100-0914
Description
The Beckhoff CX2100-0914 is a 24 VDC, 100 W power supply and UPS module designed for CX20x3 and CX2042 Embedded PC systems. It supports connection to an external battery pack, includes an integrated FSTN LCD display for status monitoring, and provides automatic E-bus/K-bus recognition for versatile I/O operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX2100-0914 |
| Subcategory | Power Supply and UPS Module |
| Power Supply Voltage | 24 V DC (-15% / +20%) |
| Maximum Power Output | 100 W |
| I/O Connection Type | E-bus or K-bus, automatic recognition |
| Current Supply (E-bus/K-bus) | 2 A at 5 V DC |
| UPS Capability | External battery pack supported |
| UPS Capacity | Dependent on external battery configuration |
| Connection Type | Spring-loaded (adapter terminal) |
| Display Type | FSTN LCD, 2 lines × 16 characters, illuminated |
| Diagnostics LEDs | PWR, I/O Run, I/O Err |
| Max. Power Loss | 3.5 W |
| Max. Power Consumption (E-bus/K-bus) | 10 W (5 V / max. 2 A) |
| Cooling Method | Passive (fanless) |
| UPS OCT-Capable | No |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Protection Rating | IP20 |
| Approvals | CE, UL |
| Dimensions (W × H × D) | 84 mm × 100 mm × 91 mm |
| Weight | 1.00 lbs (approx. 695 g) |
Information About CX2100-0914
The CX2100-0914 is part of Beckhoff’s CX2000 series of modular power supply units designed for high-performance Embedded PC systems. This model provides a robust 100 W output and supports external UPS battery packs for uninterruptible power supply functionality. It automatically detects and operates with either E-bus or K-bus I/O connections, ensuring seamless integration with Beckhoff EtherCAT and Bus Terminals. The built-in FSTN display allows users to view internal system values, diagnostics, and user-defined parameters directly on the module. With its fanless, passively cooled design, the CX2100-0914 maintains reliable operation across a wide temperature range, making it ideal for industrial automation systems requiring continuous and stable power delivery.
Key Features:
- High Power Output: Provides 100 W of total output power to supply CPU, system, and extension modules in CX20x3 and CX2042 systems.
- External UPS Integration: Compatible with external battery packs to maintain system operation during power interruptions.
- Automatic I/O Detection: Supports both E-bus (EtherCAT Terminals) and K-bus (Bus Terminals) with automatic system recognition.
- Integrated Display Interface: FSTN LCD (2×16 characters) with selector and enter keys for local monitoring and parameter display.
- Efficient Power Management: Delivers 2 A at 5 V DC to I/O terminals via an internal, galvanically separated power supply.
- Comprehensive Diagnostics: Equipped with PWR, I/O Run, and I/O Error LEDs for fast operational feedback.
- Industrial Durability: Operates reliably in -25°C to +60°C environments with IP20 protection and CE/UL certifications.
- Fanless Cooling: Passive thermal management ensures quiet, maintenance-free performance.
The CX2100-0914 delivers the reliability and precision required for continuous operation, system backup, and secure power management in Beckhoff embedded automation systems.
