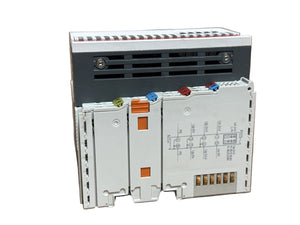

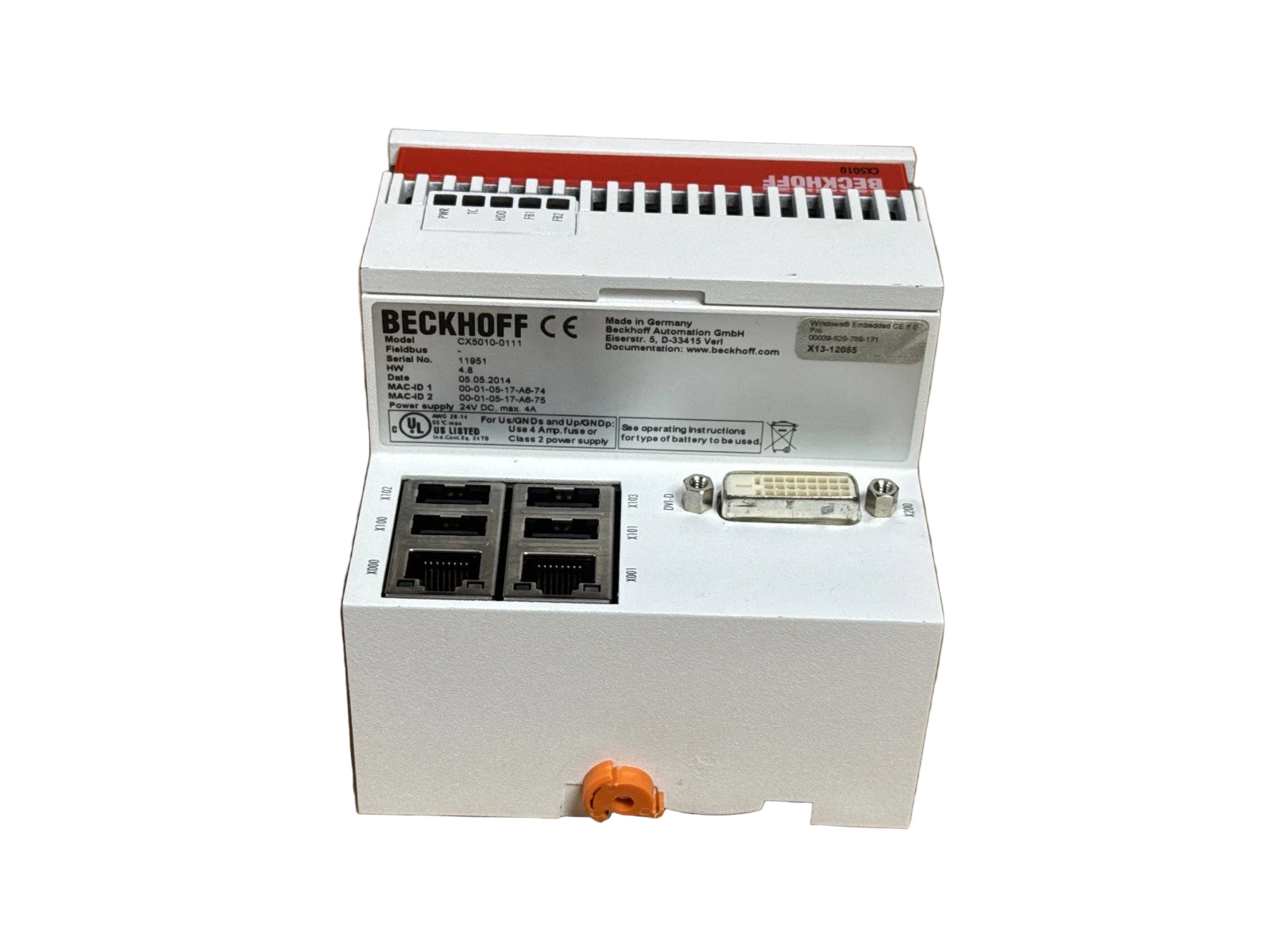

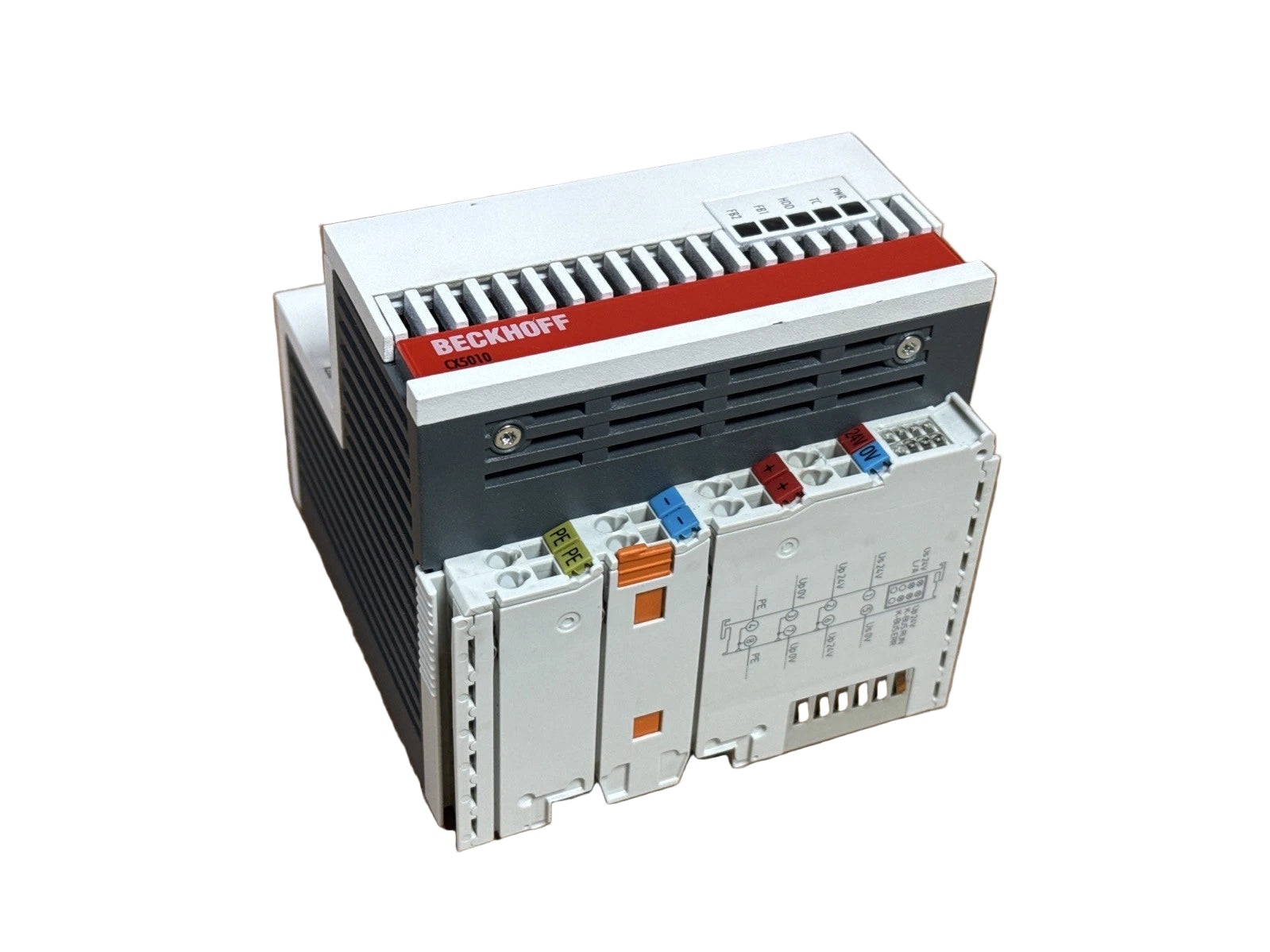

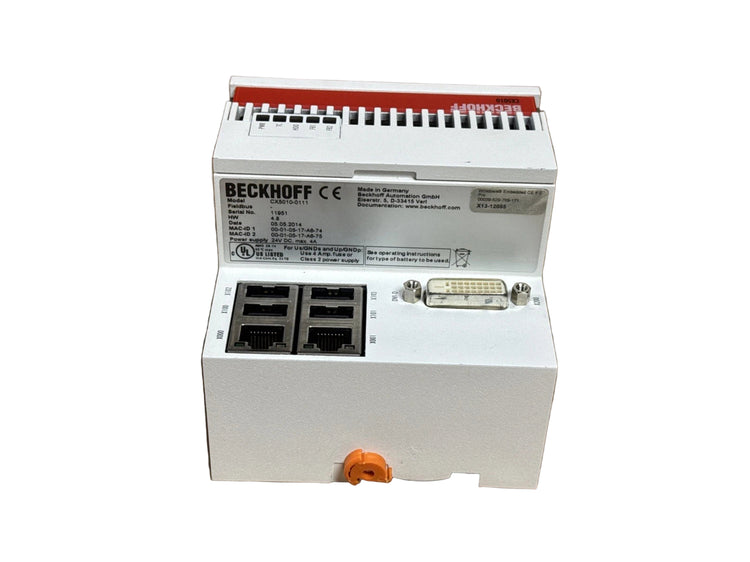

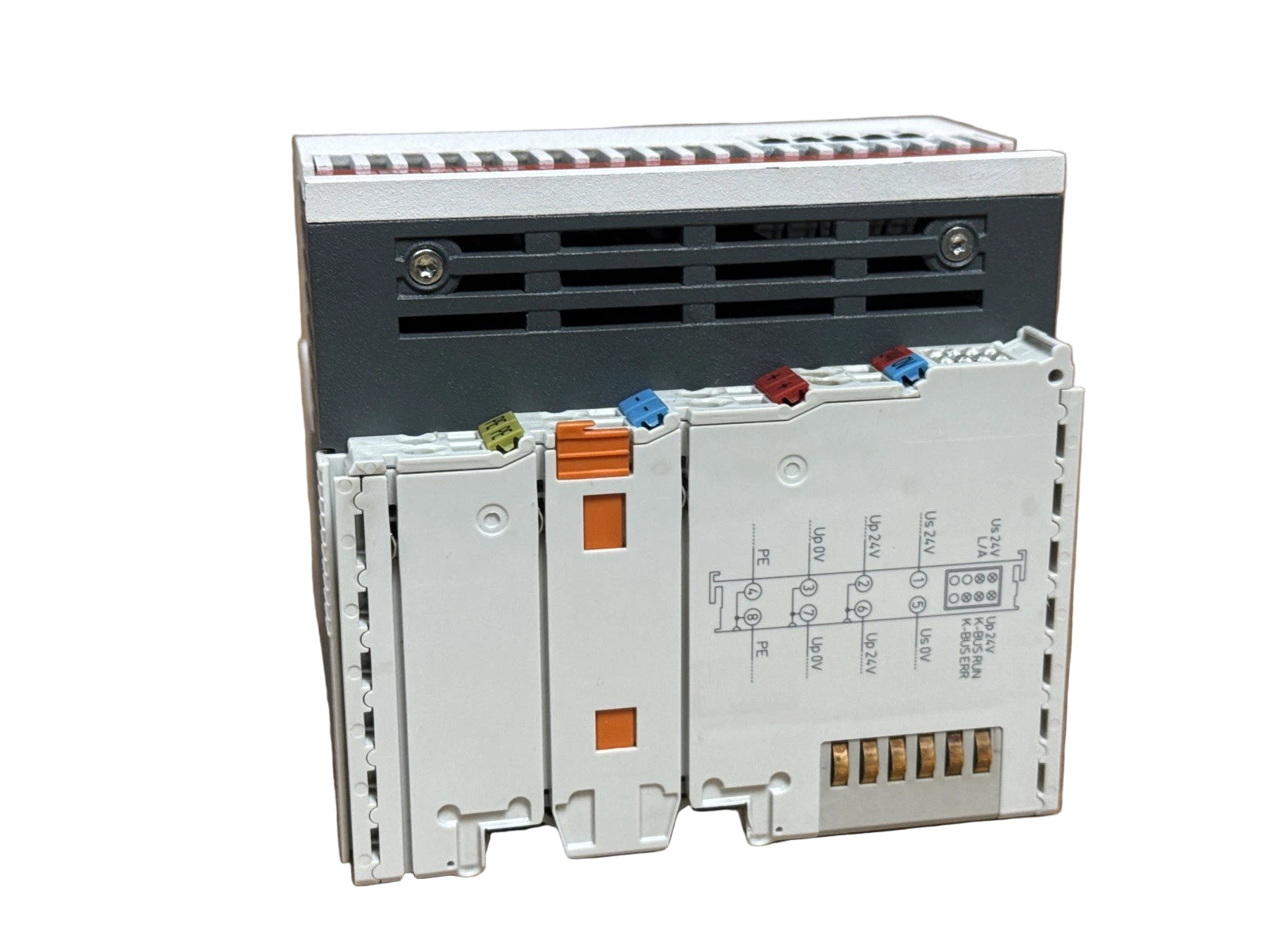

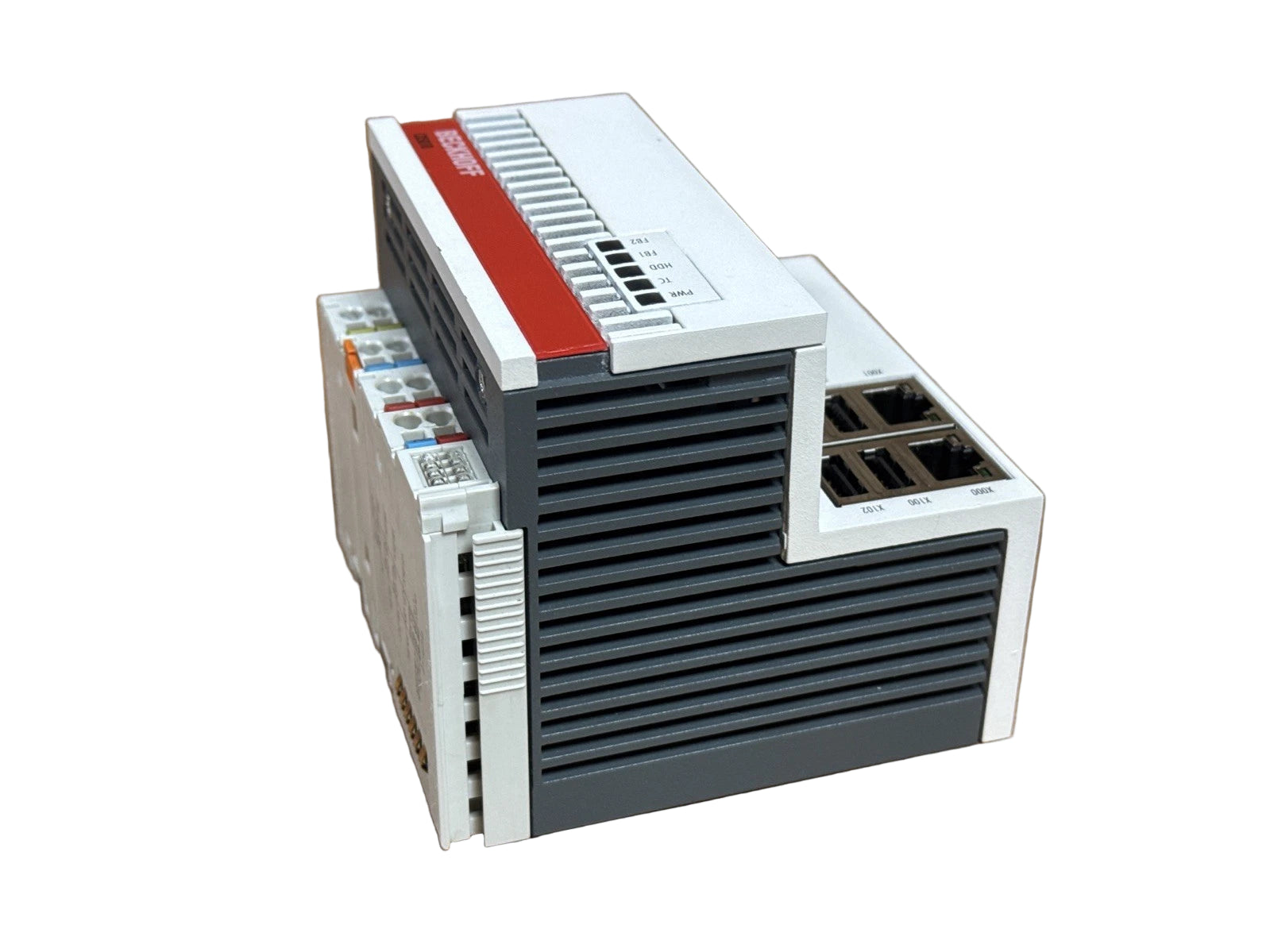

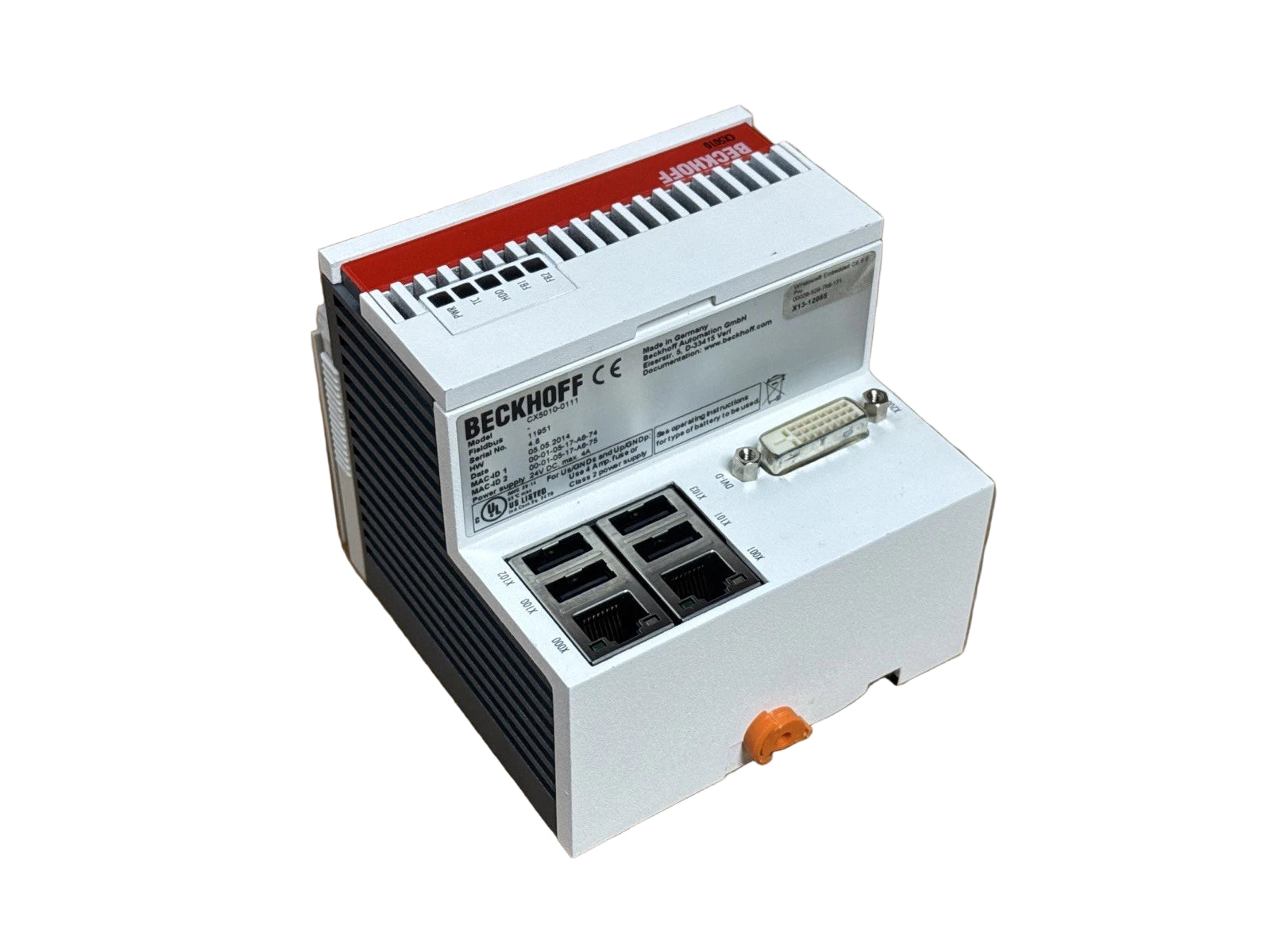

CX5010-0111 | Beckhoff Embedded PC with Intel Atom Z510
- Regular price
- $4,899.00
- Sale price
- $4,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5010-0111
Description
The Beckhoff CX5010-0111 is an Embedded PC featuring an Intel Atom Z510 processor at 1.1 GHz and 512 MB RAM for compact industrial control applications. Designed with E-bus connectivity, Windows CE 6.0, and TwinCAT 2 PLC run-time, it delivers reliable automation performance in modular system architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | CX5010-0111 |
| Subcategory | Embedded PCs |
| Processor | Intel Atom Z510, 1.1 GHz |
| Number of Cores | 1 |
| Memory | 512 MB RAM (fixed) |
| Flash Memory | CompactFlash card, 128 MB included (expandable) |
| Operating System | Windows Embedded CE 6.0, Windows Embedded Standard 2009 |
| Control Software | TwinCAT 2 PLC run-time, TwinCAT 3 runtime (XAR) |
| I/O Connection | E-bus or K-bus, automatic recognition |
| Interfaces | 2 × Gigabit Ethernet, 4 × USB 2.0, 1 × DVI-D, 1 × optional interface |
| UPS | Integrated 1-second UPS with 1 MB CompactFlash |
| Diagnostics LED | Power, TC status, Flash access, Bus status |
| Clock | Battery-backed RTC (replaceable battery) |
| Cooling | Passive |
| Power Supply | 24 V DC (-15%/+20%) |
| Current Supply E-bus/K-bus | 2 A |
| Max. Power Consumption | 12 W |
| Max. Power Consumption Bus | 10 W (5 V/max. 2 A) |
| Protection Rating | IP20 |
| Operating Temperature | -25…+60 °C |
| Storage Temperature | -40…+85 °C |
| Relative Humidity | 95%, no condensation |
| Dimensions (W x H x D) | 106 × 100 × 92 mm |
| Weight | 1.27 lbs (approx. 575 g) |
Information About CX5010-0111
The CX5010-0111 is part of Beckhoff’s CX5000 series of Embedded PCs, developed for scalable and flexible automation solutions. Powered by an Intel Atom Z510 single-core processor with passive cooling, it operates with 512 MB RAM and CompactFlash storage for system and application data. The device supports Microsoft Windows Embedded CE 6.0 and TwinCAT 2 PLC run-time while remaining compatible with TwinCAT 3 runtime environments, making it suitable for a wide range of control applications. With E-bus I/O connection, multiple communication interfaces including Gigabit Ethernet, DVI-D, and USB ports, and built-in diagnostic LEDs, the CX5010-0111 combines compact form with high reliability. It features a rugged housing with IP20 protection, operates from -25 to +60 °C, and includes a 1-second UPS for data security, making it a dependable choice for industrial environments.
Key Features:
-
Compact Processor Performance: Intel Atom Z510 single-core processor at 1.1 GHz optimized for embedded control.
-
Integrated Memory: 512 MB RAM with CompactFlash card slot including 128 MB, expandable for storage flexibility.
-
Operating System Support: Runs Microsoft Windows Embedded CE 6.0 with TwinCAT 2 PLC runtime and TwinCAT 3 runtime support.
-
Flexible I/O Connectivity: Supports Beckhoff E-bus or K-bus connections with automatic recognition.
-
Built-in Interfaces: Includes 2 × Gigabit Ethernet ports, 4 × USB 2.0, 1 × DVI-D, and optional interface expansion.
-
Data Security: Integrated 1-second UPS with 1 MB CompactFlash backup protects against sudden power loss.
-
Diagnostics and Monitoring: Equipped with multiple LEDs for power, bus status, TC runtime, and flash access.
-
Power Efficiency: Consumes only 12 W with 24 V DC input and supplies up to 2 A to I/O bus systems.
-
Industrial Reliability: Passive cooling design, IP20 protection, and wide operating temperature range from -25 to +60 °C.
-
Compact Build: Lightweight construction at 575 g with dimensions of 106 × 100 × 92 mm for easy DIN rail installation.
The CX5010-0111 delivers the reliability and precision required for embedded control, modular I/O integration, and industrial automation systems.
