Product Description P/N: CX5020-0111
Description

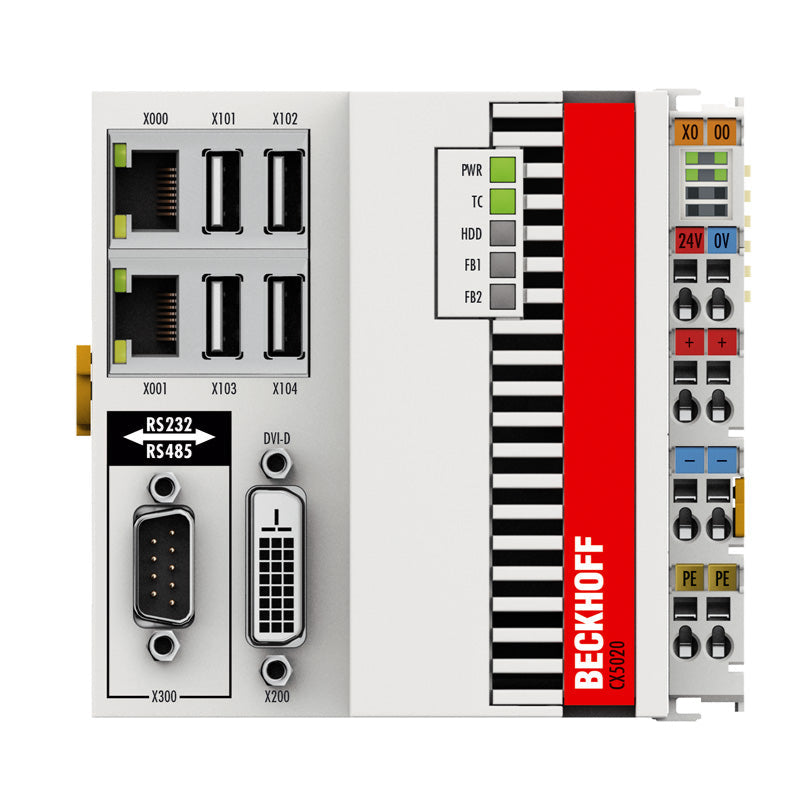

The Beckhoff CX5020-0111 is an Embedded PC with a 1.6 GHz Intel Atom processor and 512 MB RAM, designed for compact and efficient automation control. Operating on 24 V DC with TwinCAT 2 PLC run-time support, it delivers stable performance for industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | CX5020-0111 |
| Subcategory | Embedded PCs |
| Processor | Intel Atom, 1.6 GHz |
| Memory | 512 MB RAM |
| Power Supply | 24 V DC, max. 2 A |
| Power Consumption | 13 W |
| Operating System Support | TwinCAT 2 PLC run-time |
| Installation | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | -25…+60 °C |
| Storage | Without SD card (external storage options supported) |
| Interfaces | Modular I/O expansion (Beckhoff I/O system) |
| Certifications | CE, UL |
| Housing | Industrial-grade compact enclosure |
| Cooling | Passive |
| Dimensions | Compact embedded form factor |
| Weight | 1.28 lbs (approx. 0.58 kg) |
Information About CX5020-0111
The CX5020-0111 is part of Beckhoff’s CX5000 Embedded PC series, engineered for flexible and modular industrial control applications. With an Intel Atom processor running at 1.6 GHz and 512 MB RAM, it provides a balance of performance and energy efficiency in a small form factor. The unit is designed for DIN rail mounting, with IP20 protection and a wide operating temperature range of -25 to +60 °C, ensuring reliability in harsh industrial conditions. Supporting TwinCAT 2 PLC run-time, the CX5020-0111 is optimized for automation tasks and integrates easily into Beckhoff’s modular I/O system. With low power consumption of just 13 W and a 24 V DC supply, this embedded PC offers a cost-effective and durable control solution.
Key Features:
-
Efficient Processing: Intel Atom processor with 1.6 GHz clock frequency for compact industrial automation tasks.
-
System Memory: 512 MB RAM ensures smooth execution of control applications and PLC programs.
-
Software Support: Fully compatible with TwinCAT 2 PLC run-time environment for flexible automation programming.
-
Low Power Consumption: Consumes only 13 W while maintaining stable processing capabilities.
-
Reliable Power Supply: Operates on 24 V DC input with a maximum current draw of 2 A.
-
Environmental Tolerance: Wide operating temperature range from -25 to +60 °C ensures resilience in demanding conditions.
-
Compact Installation: Designed for space-saving DIN rail mounting within control cabinets.
-
Protection Standard: IP20 rating safeguards against dust and accidental contact.
-
Modular Expansion: Seamlessly integrates with Beckhoff I/O modules for scalable applications.
-
Lightweight Design: Weighs only 1.28 lbs, making it easy to handle and install.
The CX5020-0111 delivers the reliability and precision required for embedded control, PLC processing, and modular automation integration.
