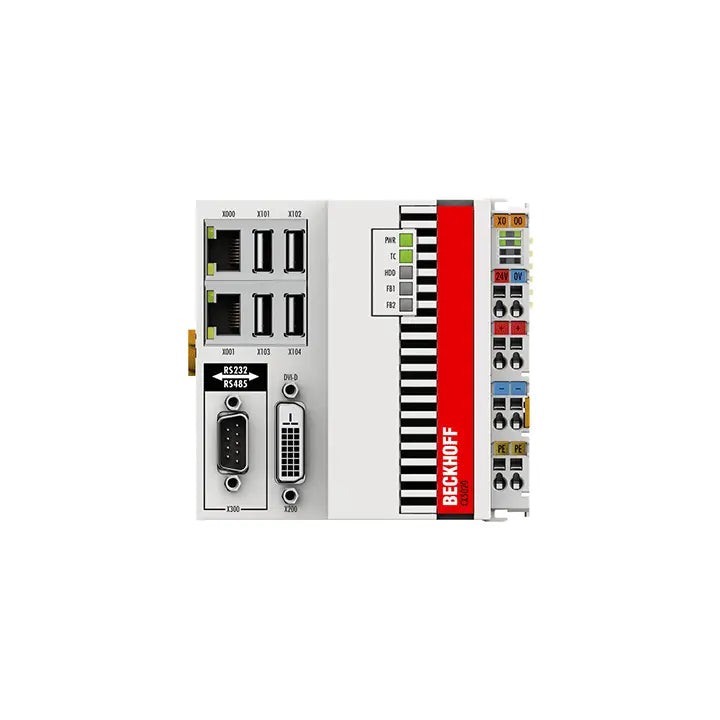

CX5020-0112 | Beckhoff Embedded PC with Intel Atom Z530, TwinCAT Runtime, Dual Ethernet
- Regular price
- $1,022.00
- Sale price
- $1,022.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5020-0112
Description
The Beckhoff CX5020-0112 is an embedded PC controller featuring an Intel Atom® Z530 1.6 GHz single-core processor with passive cooling. It supports both TwinCAT 2 and TwinCAT 3 runtimes, integrates dual Gigabit Ethernet interfaces, and includes a CompactFlash® slot for storage. Designed for industrial automation, it offers reliable operation in harsh conditions with extended temperature tolerance and IP20 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Controls & Indicators |
| Part Number | CX5020-0112 |
| Subcategory | CPU/Control Board |
| Processor | Intel Atom® Z530, 1.6 GHz, 1 core |
| Cooling | Passive |
| Main Memory | 512 MB RAM, expandable to 1 GB |
| Flash Memory | 128 MB CompactFlash®, expandable |
| Persistent Memory | Integrated 1-second UPS (1 MB on CF card) |
| Interfaces | 2× RJ45 (10/100/1000 Mbit/s), 4× USB 2.0, 1× DVI-D, 1× optional |
| Diagnostics LEDs | Power, TC status, flash access, 2× bus status |
| Clock | Battery-backed real-time clock |
| Operating System | Windows Embedded CE 6, Windows Embedded Standard 2009 |
| Control Software | TwinCAT 2 PLC, NC PTP; TwinCAT 3 runtime (XAR) |
| I/O Connection | E-bus or K-bus, automatic recognition |
| Power Supply | 24 V DC (-15 %/+20 %) |
| Current Supply (E-bus/K-bus) | 2 A (max. 10 W at 5 V) |
| Max. Power Consumption | 13 W |
| Operating Temperature | -25…+60 °C |
| Storage Temperature | -40…+85 °C |
| Relative Humidity | 95 %, non-condensing |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating | IP20 |
| Approvals/Markings | CE, UL, optional ATEX (II 3 G Ex nA IIC T4 Gc) |
| TwinCAT 3 Platform Level | Performance (40) |
| Dimensions (W × H × D) | 106 × 100 × 92 mm |
| Weight | 0.575 kg (≈1.20 lbs) |
Information About CX5020-0112
The CX5020-0112 is part of Beckhoff’s CX5000 Embedded PC series, engineered for compact yet powerful control applications. It includes 512 MB RAM (expandable to 1 GB ex factory) and a 128 MB CompactFlash® card, ensuring stable system performance and persistent data handling via its integrated 1-second UPS. The unit provides multiple interfaces including 2× RJ45 Gigabit Ethernet, 1× DVI-D, 4× USB 2.0, and one optional interface, making it highly adaptable for industrial networking and visualization tasks. Designed for rugged use, the CX5020-0112 supports E-bus or K-bus I/O with automatic recognition and conforms to EMC, vibration, and shock resistance standards.
Key Features:
- Intel Atom® Z530 CPU: 1.6 GHz single-core processor with efficient passive cooling.
- Dual runtime support: Compatible with TwinCAT 2 and TwinCAT 3 (XAR) for automation and motion control.
- Memory options: 512 MB RAM standard, expandable to 1 GB; CompactFlash® storage with 128 MB supplied.
- Integrated UPS: 1-second UPS ensures secure data storage in case of power failure.
- Interfaces: 2× Gigabit Ethernet, 4× USB 2.0, 1× DVI-D, and one optional expansion interface.
- I/O flexibility: Supports both E-bus and K-bus with automatic recognition.
- Industrial reliability: Wide operating temperature range from -25 to +60 °C and shock/vibration tested.
- Certifications: CE, UL, and optional ATEX approval with Ex marking for hazardous environments.
The CX5020-0112 delivers the processing power, flexibility, and durability required for advanced embedded control systems.
