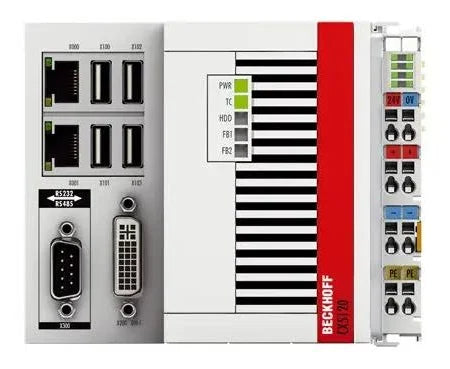

CX5120 | BECKHOFF Embedded PC with Intel Atom® Processor
- Regular price
- $2,164.00
- Sale price
- $2,164.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5120
Description
The CX5120 is an embedded PC featuring an Intel Atom® single-core processor clocked at 1.46 GHz. It maintains hardware interface compatibility with the CX5000 series, offering two independent Gigabit-capable Ethernet interfaces, four USB 2.0 ports, and a DVI-I interface. Optional interfaces can be factory-installed to enhance connectivity, supporting E-bus or K-bus terminals for versatile I/O configurations.
Technical Specifications
|
Part # |
CX5120-0155 |
|
Category |
Controls & Indicators |
|
Subcategory |
CPU/Control Board Processor |
|
Processor |
Intel Atom® E3815, 1.46 GHz |
|
Number of cores |
1 |
|
Flash memory |
Slot for CFast card and microSD card, cards not included |
|
Main memory |
2 GB DDR3 RAM (not expandable) |
|
Persistent memory |
Integrated 1-second UPS (1 MB on CFast card) |
|
Interfaces |
2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
|
Diagnostics LED |
1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
|
Clock |
Internal battery-backed clock for time and date (battery exchangeable) |
|
Control software |
TwinCAT 2 runtime, TwinCAT 3 runtime (XAR) |
|
I/O connection |
E-bus or K-bus, automatic recognition |
|
Power supply |
24 V DC (-15%/+20%) |
|
Current supply E-bus/K-bus |
2 A |
|
Max. power consumption |
11 W |
|
Max. power consumption (with loading UPS) |
18 W |
|
Dimensions (W x H x D) |
122 mm x 100 mm x 92 mm |
|
Weight |
Approx. 975 g |
|
Relative humidity |
95%, no condensation |
|
Operating/storage temperature |
-25…+60°C / -40…+85°C |
|
EMC immunity/emission |
Conforms to EN 61000-6-2/EN 61000-6-4 |
|
Vibration/shock resistance |
Conforms to EN 60068-2-6/EN 60068-2-27 |
|
Protection rating |
IP20 |
Information About CX5120
The CX5120 is an embedded PC featuring an Intel Atom® single-core processor clocked at 1.46 GHz. It shares hardware interfaces identical to those found in the CX5000 series, including two independent Gigabit-capable Ethernet ports, four USB 2.0 ports, and a DVI-I interface. Additional connectivity options or gateway functionalities can be enabled through an optional interface that can be factory-installed. The I/O level supports either E-bus or K-bus terminals, providing flexibility in system configuration.
Designed with a focus on efficiency, the CX5120 boasts low power consumption and operates without a fan, enhancing reliability and reducing maintenance needs in industrial environments. This design feature contributes to its suitability for applications requiring stable performance over extended periods.
The CX5120 supports various configurations of TwinCAT runtime environments, facilitating its use in PLC or PLC/motion control projects with or without visualization capabilities. It enables the execution of motion control applications that involve interpolating axis movements, ensuring precise and responsive control in automated processes.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
