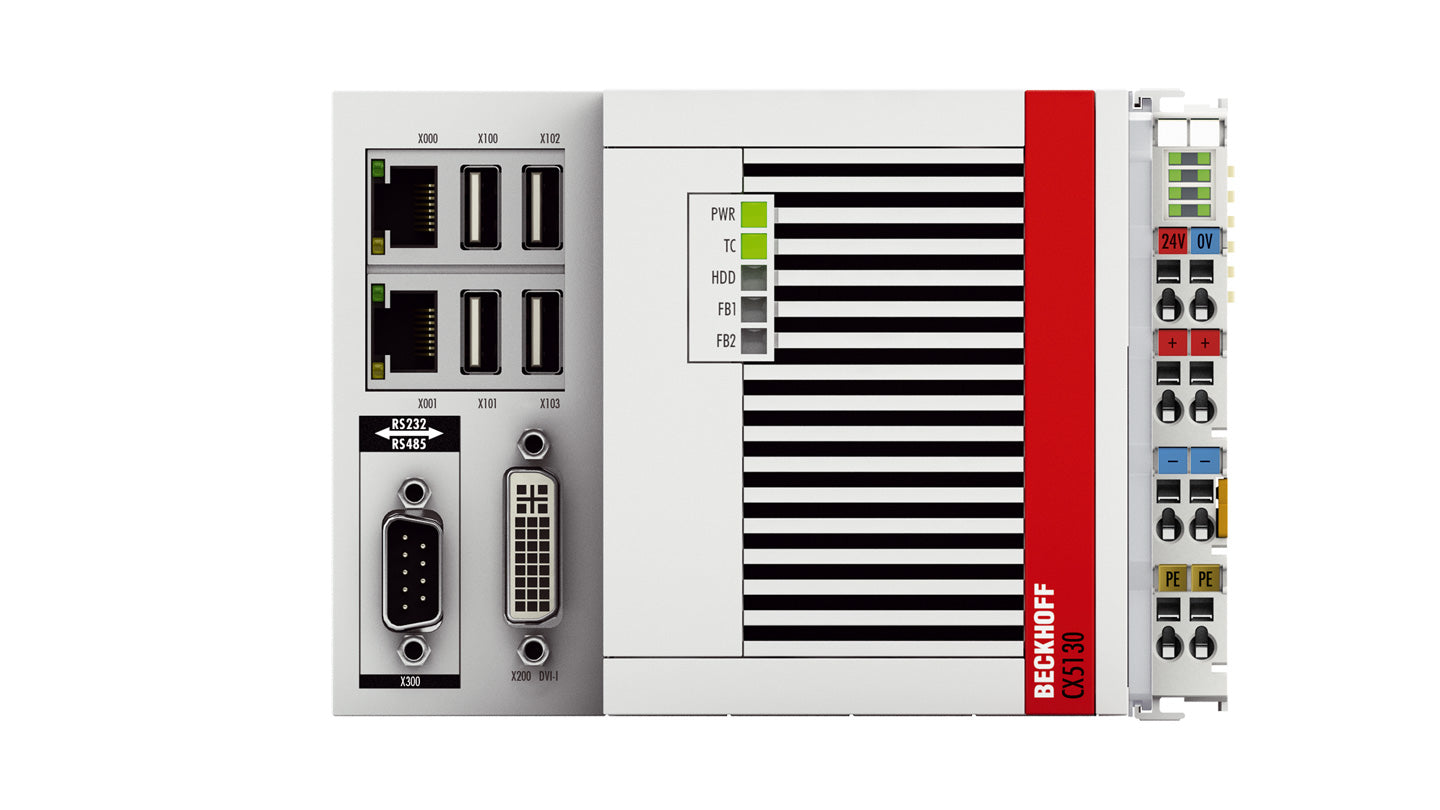

CX5130-0121 | Beckhoff DIN Rail Industrial PC, Intel® Atom® E3827 1.75 GHz Dual-Core
- Regular price
- $3,760.00
- Sale price
- $3,760.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5130-0121
Description
The Beckhoff CX5130-0121 is a high-performance DIN rail-mounted industrial PC powered by an Intel® Atom® E3827 dual-core processor running at 1.75 GHz. Equipped with 4 GB of internal DDR3 RAM and dual Gigabit Ethernet ports, it delivers efficient and compact control performance for automation, communication, and motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX5130-0121 |
| Subcategory | DIN Rail Industrial PC |
| Processor | Intel® Atom® E3827, 1.75 GHz, 2 cores |
| Processor Type | 64-bit dual-core CPU |
| Main Memory | 4 GB DDR3 RAM (non-expandable) |
| Storage | CFast card required (sold separately) |
| Ethernet Interfaces | 2 × RJ45 (10/100/1000 Mbit/s) |
| Operating System | Windows Embedded Standard or TwinCAT-compatible OS |
| Control Software | TwinCAT 3 PLC and motion control runtime support |
| Mounting Type | DIN rail mount |
| Cooling Method | Fanless, passive cooling |
| Bus System Compatibility | Supports EtherCAT and Beckhoff I/O terminals |
| Power Supply | 24 V DC (typical CX series input) |
| Protection Rating | IP20 |
| Expansion Options | Compatible with CX5000 extension modules |
| Indicators | Status and diagnostic LEDs |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Approvals | CE, UL |
| Weight | 2.29 lbs (approx. 1.04 kg) |
Information About CX5130-0121
The CX5130-0121 belongs to Beckhoff’s CX5000 Embedded PC family, designed for flexible and high-performance control in industrial environments. Featuring an Intel® Atom® E3827 1.75 GHz dual-core processor and 4 GB DDR3 RAM, it delivers powerful real-time computing capabilities suitable for machine automation, process control, and communication tasks. The unit supports both EtherCAT and traditional fieldbus connections, enabling seamless integration into Beckhoff I/O systems. Its fanless aluminum housing ensures silent and maintenance-free operation, while the modular design allows the use of CFast storage for fast, reliable data access. With robust construction and DIN rail mounting, the CX5130-0121 is well-suited for decentralized control applications in space-constrained installations.
Key Features:
- Dual-Core Processing Power: Intel® Atom® E3827 1.75 GHz CPU provides efficient performance for real-time automation.
- Integrated 4 GB DDR3 RAM: Non-expandable internal memory ensures stable multitasking and fast data handling.
- Flexible Networking: Dual RJ45 ports (10/100/1000 Mbit/s) enable Ethernet and EtherCAT connectivity.
- Modular Storage Design: Supports CFast cards (sold separately) for robust and high-speed data storage.
- Fanless Cooling: Passive heat dissipation ensures silent, long-term operation without maintenance.
- Compact DIN Rail Design: Saves cabinet space and integrates easily into control panels.
- Seamless TwinCAT Integration: Fully compatible with Beckhoff TwinCAT 3 for PLC, motion, and HMI applications.
- Industrial Durability: IP20-rated enclosure and CE/UL certification ensure reliable operation in demanding environments.
The CX5130-0121 delivers the reliability and precision required for industrial control, motion systems, and embedded automation platforms.
