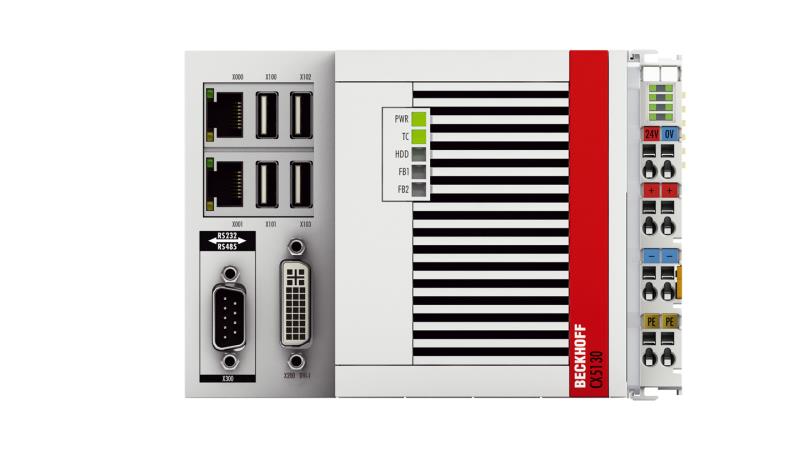

CX5130-0125 | Beckhoff Embedded PC, Intel Atom E3827 1.75 GHz, 4 GB DDR3 RAM
- Regular price
- $2,644.00
- Sale price
- $2,644.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5130-0125
Description
The Beckhoff CX5130-0125 is a DIN rail-mounted Industrial Embedded PC powered by an Intel Atom® E3827 dual-core 1.75 GHz processor. It includes 4 GB of onboard DDR3 RAM, dual Ethernet interfaces, and expandable storage via CFast and microSD card slots, offering a compact and efficient platform for industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Computers |
| Part Number | CX5130-0125 |
| Subcategory | Embedded PC |
| Mounting | DIN rail |
| Processor | Intel Atom® E3827 |
| Clock Speed | 1.75 GHz |
| CPU Cores | 2 (TwinCAT 3: 40) |
| Memory | 4 GB DDR3 RAM (soldered, not expandable) |
| Storage Options | CFast card slot and microSD card slot (cards not included) |
| Ethernet Ports | 2 x RJ45 (10/100/1000 Mbit/s) |
| Display Interface | 1 x DVI-I |
| USB Ports | 4 x USB 2.0 |
| Optional Interfaces | Expansion slot available |
| Cooling | Passive (fanless operation) |
| Control Software | TwinCAT 2 and TwinCAT 3 runtimes |
| Diagnostic LEDs | Power, TC, Flash, 2x Bus status |
| Real-Time Clock | Integrated, battery-backed |
| Power Supply | 24 V DC |
| Protection Class | IP20 |
| Operating Temperature | 0…55°C |
| Storage Temperature | -25…+85°C |
| Relative Humidity | 95%, non-condensing |
| Compliance | CE, UL certified |
| Weight | 3.00 lbs (approx. 1.36 kg) |
Information About CX5130-0125
The CX5130-0125 belongs to Beckhoff’s CX5000 Embedded PC series, designed for efficient machine control and automation environments. Equipped with an Intel Atom® E3827 processor, it combines robust computing performance with energy efficiency in a compact DIN-rail housing. The unit operates passively without fans, ensuring silent operation and reduced maintenance. Integrated with 4 GB DDR3 memory and expandable flash storage options, it supports flexible data management for demanding real-time applications. With TwinCAT 2 and TwinCAT 3 compatibility, the CX5130-0125 acts as both a PLC and motion controller, integrating seamlessly into EtherCAT-based automation systems.
Key Features:
- Powerful Dual-Core Processing: Features an Intel Atom® E3827 CPU with 1.75 GHz clock speed for stable, high-performance industrial computing.
- Integrated System Memory: Includes 4 GB DDR3 RAM (non-expandable) optimized for reliable multitasking and real-time control.
- Flexible Storage Options: Offers both CFast and microSD card slots for program and data storage, supporting scalable application needs.
- Comprehensive Connectivity: Equipped with two gigabit Ethernet ports, one DVI-I display interface, and four USB 2.0 ports for flexible communication.
- TwinCAT Software Compatibility: Fully supports Beckhoff TwinCAT 2 and TwinCAT 3 runtimes for integrated PLC and motion control functionality.
- Fanless Cooling Design: Passive cooling ensures silent operation, extended lifespan, and minimal maintenance.
- Advanced Diagnostics: Includes LEDs for power, TwinCAT, flash access, and bus communication for quick troubleshooting and system monitoring.
- Compact Industrial Housing: Designed for DIN rail mounting with IP20 protection for reliable operation in control cabinets.
The CX5130-0125 delivers the reliability and precision required for automation, motion control, and distributed system applications in industrial environments.
