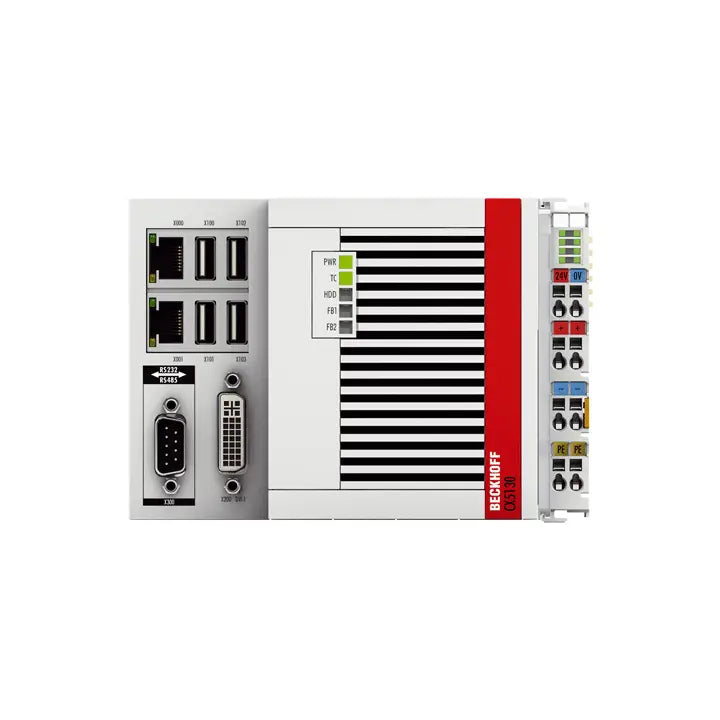

CX5130-0135 | Beckhoff Embedded PC CPU Module with Intel Atom Dual-Core and TwinCAT Runtime
- Regular price
- $3,266.00
- Sale price
- $3,266.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5130-0135
Description
The Beckhoff CX5130-0135 is a compact Embedded PC CPU module from the CX5100 series designed for industrial automation tasks. It is powered by an Intel Atom® E3827 dual-core 1.75 GHz processor with 4 GB DDR3 memory and supports TwinCAT 2 and TwinCAT 3 runtimes. Its modular architecture enables flexible I/O integration via K-bus or E-bus, making it suitable for scalable PLC, motion, and automation control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | PLCs/Machine Control |
| Part Number | CX5130-0135 |
| Subcategory | PLC Module/Rack |
| Processor | Intel Atom® E3827, 1.75 GHz, dual-core |
| Main Memory | 4 GB DDR3 RAM (non-expandable) |
| Flash Memory | Slots for CFast and microSD (cards not included) |
| Persistent Memory | Integrated 1-second UPS (1 MB on CFast card) |
| Interfaces | 2 x Gigabit Ethernet, 1 x DVI-I, 4 x USB 2.0, 1 optional interface |
| Control Software | TwinCAT 2 runtime, TwinCAT 3 runtime (XAR) |
| Operating Systems | Windows Embedded Compact 7, Windows Embedded Standard 7 P 64-bit, Windows 10 IoT Enterprise (LTSB/LTSC), TwinCAT/BSD |
| Bus Interface | K-bus/E-bus, auto detection |
| Cooling | Passive |
| Diagnostics | LEDs: Power, TC, Flash access, 2 x Bus status |
| Real-time Clock | Battery-backed, exchangeable |
| Power Supply | 24 V DC (-15% / +20%) |
| Current Supply (E/K-bus) | 2 A |
| Max. Power Consumption | 14 W (20 W with UPS) |
| Operating Temperature | -25…+60 °C |
| Storage Temperature | -40…+85 °C |
| Humidity | 95%, non-condensing |
| EMC Standards | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| Protection Rating | IP20 |
| Approvals/Markings | CE, UL, ATEX, IECEx, DNV GL (with options) |
| Dimensions (W x H x D) | 142 x 100 x 92 mm |
| Weight | Approx. 1095 g (2.96 lbs) |
Information About CX5130-0135
The CX5130-0135 is part of Beckhoff’s CX5100 series, optimized for machine control and automation within compact control cabinet environments. It features passive cooling for maintenance-free operation, a built-in 1-second UPS, and a battery-backed real-time clock. The system supports modern operating systems including Windows Embedded Standard 7 P 64-bit, Windows 10 IoT Enterprise, and Beckhoff TwinCAT/BSD. With dual Gigabit Ethernet, DVI-I, and USB 2.0 interfaces, the CX5130-0135 ensures connectivity and expandability, while compliance with CE, UL, ATEX, and IECEx standards confirms its suitability for industrial use.
Key Features:
- Dual-core processor: Intel Atom® E3827, 1.75 GHz for efficient industrial performance.
- Memory capacity: 4 GB DDR3 RAM (non-expandable) with integrated 1 MB UPS on CFast card.
- I/O compatibility: Automatic detection of K-bus or E-bus terminals.
- Connectivity options: Two Gigabit-capable Ethernet ports, one DVI-I, four USB 2.0, plus optional interface.
- Additional storage: Slots for CFast and microSD cards (user-supplied).
- Passive cooling: Fanless operation for reliability in harsh environments.
- Industrial durability: Certified for vibration, shock, EMC standards, and IP20 protection.
- Wide OS support: Windows Embedded, Windows 10 IoT Enterprise, and TwinCAT/BSD.
The CX5130-0135 delivers the reliability and versatility required for PLC, motion control, and automation in demanding industrial environments.
