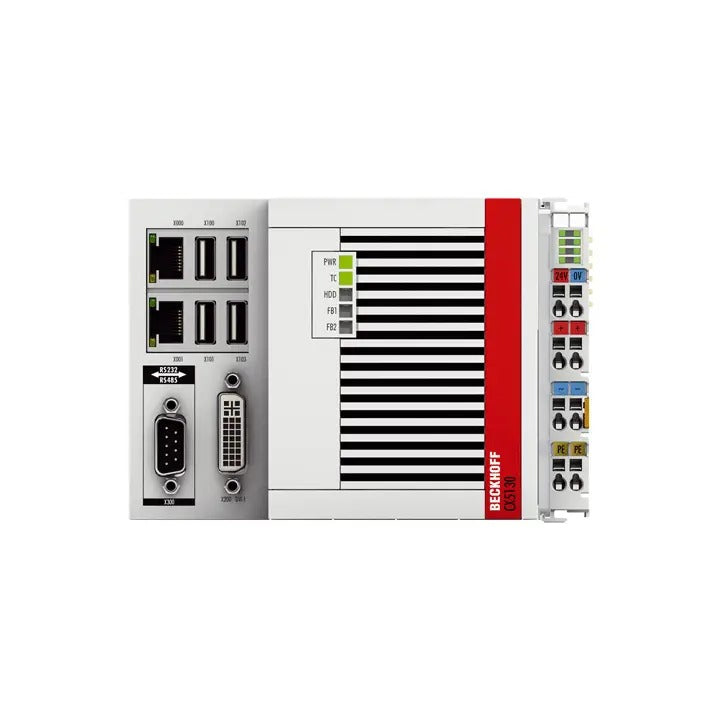

CX5130-0155 | Beckhoff DIN Rail Industrial PC, Intel® Atom E3827 1.75 GHz Dual-Core
- Regular price
- $1,762.00
- Sale price
- $1,762.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5130-0155
Description
The Beckhoff CX5130-0155 is a compact DIN rail-mounted industrial PC powered by an Intel® Atom® E3827 1.75 GHz dual-core processor. It integrates 4 GB DDR3 RAM, dual Ethernet ports, and slots for both CFast and MicroSD cards, providing reliable and efficient control for automation and process management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX5130-0155 |
| Subcategory | DIN Rail Industrial PC |
| Processor | Intel® Atom® E3827, 1.75 GHz, 2 cores |
| Processor Type | 64-bit dual-core CPU |
| Main Memory | 4 GB DDR3 RAM (non-expandable) |
| Storage Options | Slot for CFast card and MicroSD card (cards not included) |
| Ethernet Interfaces | 2 × RJ45, 10/100/1000 Mbit/s |
| Operating System | Windows Embedded Compact or TwinCAT-compatible OS |
| Control Software | TwinCAT 3 PLC and motion runtime support |
| Power Supply | 24 V DC (typical for CX series) |
| Mounting Type | DIN rail mountable |
| Cooling Method | Passive, fanless design |
| Protection Rating | IP20 |
| Bus System Compatibility | Supports EtherCAT, fieldbus, and other Beckhoff I/O modules |
| Expansion Options | Compatible with CX5000 extension modules |
| Dimensions (Approx.) | Compact modular format for control cabinet installation |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Approvals | CE, UL |
| Weight | 1.00 lbs (approx. 450 g) |
Information About CX5130-0155
The CX5130-0155 is part of Beckhoff’s CX5000 series of modular Embedded PCs, offering high performance in a compact DIN rail form factor. Equipped with an Intel® Atom® E3827 dual-core processor and 4 GB of integrated DDR3 RAM, it delivers reliable processing power for industrial automation tasks. The device supports both CFast and MicroSD storage options, allowing flexible configuration for program and data storage. With two Gigabit Ethernet interfaces, the CX5130-0155 enables fast and redundant network communication, ideal for EtherCAT and fieldbus control systems. Designed for maintenance-free operation, its fanless aluminum housing ensures long-term stability in demanding industrial environments.
Key Features:
- Efficient Dual-Core Processor: Intel® Atom® E3827 1.75 GHz provides robust performance for real-time automation tasks.
- Integrated 4 GB Memory: Non-expandable DDR3 RAM ensures stable operation of PLC, motion, and communication processes.
- Flexible Storage Options: Includes slots for CFast and MicroSD cards for easy software deployment and data logging.
- High-Speed Connectivity: Two Gigabit Ethernet ports allow rapid and redundant network communication.
- Fanless Cooling System: Passive heat dissipation enables quiet, reliable, and maintenance-free operation.
- Compact DIN Rail Design: Slim industrial form factor fits seamlessly into control cabinets and distributed systems.
- TwinCAT Compatibility: Fully supports Beckhoff’s TwinCAT 3 software for PLC, motion, and HMI integration.
- Industrial Durability: CE and UL certified, operating from 0°C to +55°C for reliable control in industrial environments.
The CX5130-0155 delivers the reliability and precision required for automation control, process management, and real-time Ethernet-based communication in industrial systems.
