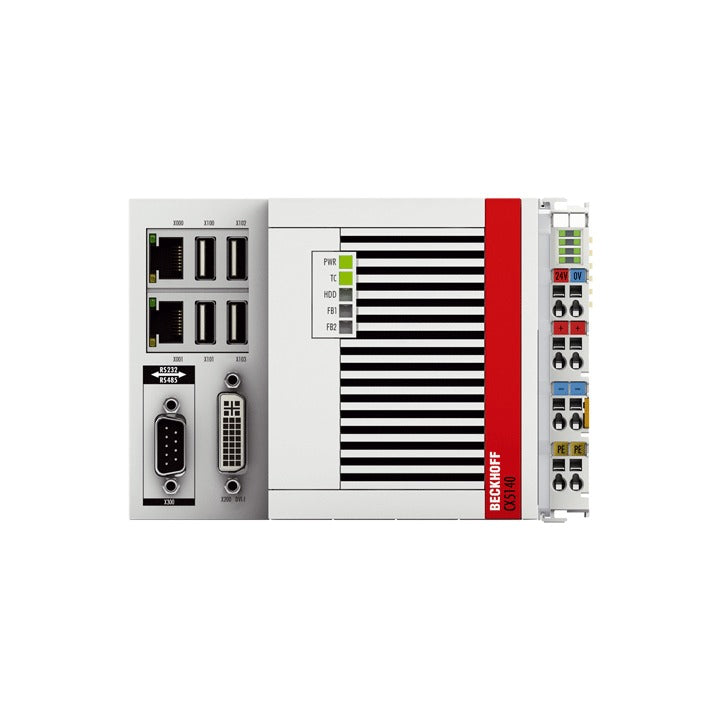

CX5140-0155 | Beckhoff Embedded PC Basic CPU Module Windows 10 IoT 64-bit TwinCAT 3
- Regular price
- $3,348.00
- Sale price
- $3,348.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CX5140-0155
Description
The Beckhoff CX5140-0155 is a basic CPU module from the CX5000 Embedded PC series, equipped with Microsoft Windows 10 IoT Enterprise 2016 LTSB (64-bit) and TwinCAT 3 Runtime (XAR). It provides flexible control and communication performance for industrial automation systems, supporting both E-bus and K-bus interfaces with automatic recognition.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX5140-0155 |
| Subcategory | Embedded PC |
| Operating System | Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64-bit |
| Runtime Environment | TwinCAT 3 Runtime (XAR), no licenses included |
| Processor | Intel® Atom® Quad-Core (CX5140 family) |
| Power Supply | 24 V DC (-15% / +20%) |
| I/O Connection | E-bus or K-bus, automatic recognition |
| UPS OCT-Capable | No |
| Current Supply (E-bus/K-bus) | 2 A |
| Max. Power Consumption | 16 W |
| Max. Power Consumption (with UPS load) | 23 W |
| Max. Power Consumption (E-bus/K-bus) | 10 W (5 V / max. 2 A) |
| Storage Medium | CFast card required (not included) |
| Communication Interfaces | 2 × RJ45 Ethernet, USB, DVI, and optional expansion ports |
| Mounting Type | DIN-rail mounting |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 142 × 100 × 92 mm |
| Weight | Approx. 1095 g |
Information About CX5140-0155
The CX5140-0155 belongs to Beckhoff’s CX5000 series of Embedded PCs, designed to deliver modular and scalable control solutions for automation, building management, and industrial networking applications. Running on Microsoft Windows 10 IoT Enterprise 2016 LTSB, it supports 64-bit operation and includes the TwinCAT 3 Runtime (XAR) for integrated real-time control and logic processing. The system automatically recognizes either E-bus or K-bus I/O connections, enabling flexible integration with Beckhoff I/O terminals. With a low power consumption of just 16 W and a robust 24 V DC supply input, it ensures stable performance for continuous operation. The CX5140-0155’s compact form factor, fanless cooling, and durable design make it suitable for harsh industrial environments and long-term automation deployments.
Key Features:
- Quad-Core Intel® Atom® Processor: Provides efficient multitasking and responsive performance for control and monitoring tasks.
- Windows 10 IoT Enterprise OS: Offers 64-bit compatibility with extended lifecycle support for industrial applications.
- TwinCAT 3 Runtime Integration: Supports Beckhoff’s automation platform for PLC, motion, and data handling tasks (no license included).
- Flexible I/O Connectivity: Automatically detects and supports both E-bus and K-bus I/O systems for seamless hardware expansion.
- Compact and Fanless Design: Ensures quiet, maintenance-free operation and reliable performance in harsh environments.
- Low Power Consumption: Consumes only 16 W under normal conditions, supporting efficient energy management.
- Industrial-Grade Build: Operates in temperatures from -25°C to +60°C and up to 95% humidity without condensation.
- Scalable Architecture: Supports system upgrades with CFast card storage and optional communication interfaces.
The CX5140-0155 delivers the reliability and precision required for embedded control, industrial automation, and machine operation within compact and energy-efficient architectures.
Description
The Beckhoff CX5140-0155 is a basic CPU module from the CX5000 Embedded PC series, equipped with Microsoft Windows 10 IoT Enterprise 2016 LTSB (64-bit) and TwinCAT 3 Runtime (XAR). It provides flexible control and communication performance for industrial automation systems, supporting both E-bus and K-bus interfaces with automatic recognition.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX5140-0155 |
| Subcategory | Embedded PC |
| Operating System | Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64-bit |
| Runtime Environment | TwinCAT 3 Runtime (XAR), no licenses included |
| Processor | Intel® Atom® Quad-Core (CX5140 family) |
| Power Supply | 24 V DC (-15% / +20%) |
| I/O Connection | E-bus or K-bus, automatic recognition |
| UPS OCT-Capable | No |
| Current Supply (E-bus/K-bus) | 2 A |
| Max. Power Consumption | 16 W |
| Max. Power Consumption (with UPS load) | 23 W |
| Max. Power Consumption (E-bus/K-bus) | 10 W (5 V / max. 2 A) |
| Storage Medium | CFast card required (not included) |
| Communication Interfaces | 2 × RJ45 Ethernet, USB, DVI, and optional expansion ports |
| Mounting Type | DIN-rail mounting |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 142 × 100 × 92 mm |
| Weight | Approx. 1095 g |
Information About CX5140-0155
The CX5140-0155 belongs to Beckhoff’s CX5000 series of Embedded PCs, designed to deliver modular and scalable control solutions for automation, building management, and industrial networking applications. Running on Microsoft Windows 10 IoT Enterprise 2016 LTSB, it supports 64-bit operation and includes the TwinCAT 3 Runtime (XAR) for integrated real-time control and logic processing. The system automatically recognizes either E-bus or K-bus I/O connections, enabling flexible integration with Beckhoff I/O terminals. With a low power consumption of just 16 W and a robust 24 V DC supply input, it ensures stable performance for continuous operation. The CX5140-0155’s compact form factor, fanless cooling, and durable design make it suitable for harsh industrial environments and long-term automation deployments.
Key Features:
- Quad-Core Intel® Atom® Processor: Provides efficient multitasking and responsive performance for control and monitoring tasks.
- Windows 10 IoT Enterprise OS: Offers 64-bit compatibility with extended lifecycle support for industrial applications.
- TwinCAT 3 Runtime Integration: Supports Beckhoff’s automation platform for PLC, motion, and data handling tasks (no license included).
- Flexible I/O Connectivity: Automatically detects and supports both E-bus and K-bus I/O systems for seamless hardware expansion.
- Compact and Fanless Design: Ensures quiet, maintenance-free operation and reliable performance in harsh environments.
- Low Power Consumption: Consumes only 16 W under normal conditions, supporting efficient energy management.
- Industrial-Grade Build: Operates in temperatures from -25°C to +60°C and up to 95% humidity without condensation.
- Scalable Architecture: Supports system upgrades with CFast card storage and optional communication interfaces.
The CX5140-0155 delivers the reliability and precision required for embedded control, industrial automation, and machine operation within compact and energy-efficient architectures.
