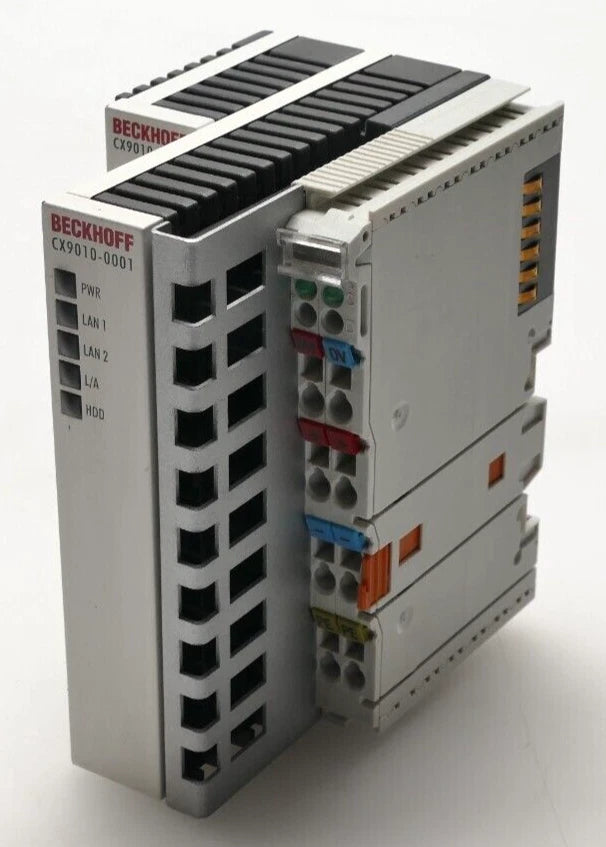

CX9010-0001 | Beckhoff CX9000 Embedded PC CPU Module with Intel XScale 533 MHz
- Regular price
- $1,242.00
- Sale price
- $1,242.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CX9010-0001
Description
The Beckhoff CX9010-0001 is an Embedded PC CPU controller module designed for compact and modular industrial automation systems. It is powered by an Intel IXP420 (XScale) processor running at 533 MHz and operates with Windows CE 5 for deterministic control tasks. The module serves as the central processing unit for CX Embedded PC systems using EtherCAT and E-bus I/O terminals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation Controllers |
| Part Number | CX9010-0001 |
| Subcategory | Embedded PC CPU Modules |
| Series | CX9000 |
| Processor | Intel IXP420 (XScale) |
| Processor Clock Frequency | 533 MHz |
| Operating System | Microsoft Windows CE 5 |
| RAM | 128 MB internal, non-expandable |
| Flash Memory | 32 MB internal, non-expandable |
| NVRAM | 128 kB |
| DPRAM | 4 kB |
| Ethernet Interfaces | 2 × RJ45, 10/100 Mbps (internal switch) |
| I/O Connection | EtherCAT E-bus terminals |
| EtherCAT Bus Current | 2 A |
| Control Software | TwinCAT 2 CE PLC or NC PTP runtime |
| Power Supply | 24 V DC (−15% / +20%) |
| Max. Power Loss | 6.5 W (incl. CX9010 interfaces) |
| Diagnostics LEDs | Power, LAN, link/activity, flash |
| Real-Time Clock | Battery-backed RTC, replaceable battery |
| Dimensions (W × H × D) | 59 × 100 × 91 mm |
| Weight | Approx. 0.4 kg |
Information About CX9010-0001
The CX9010-0001 is part of the Beckhoff CX9000 series Embedded PC platform, developed for PLC and motion-related control applications in space-constrained environments. It combines control, communication, and fieldbus integration in a single DIN-rail-mounted CPU module. The device supports TwinCAT 2 PLC or NC PTP runtime and interfaces directly with EtherCAT E-bus terminals for scalable I/O expansion. With integrated Ethernet networking, real-time clock, and non-volatile memory, it is well suited for continuous industrial operation where reliability and compact design are essential.
Key Features:
- CX9000 Series CPU Module: Designed as the central controller for Beckhoff CX Embedded PC systems.
- Intel XScale Processor: Equipped with an Intel IXP420 CPU operating at 533 MHz for reliable control performance.
- TwinCAT Runtime Support: Compatible with TwinCAT 2 CE PLC and NC PTP runtime environments.
- EtherCAT E-bus Interface: Direct connection to EtherCAT I/O terminals for modular system expansion.
- Dual Ethernet Ports: Two integrated RJ45 interfaces with internal switch, supporting 10/100 Mbps.
- Windows CE Operating System: Runs Microsoft Windows CE 5 for embedded real-time control.
- Integrated Memory Resources: Includes 128 MB RAM, 32 MB flash memory, and NVRAM for data retention.
- Real-Time Clock: Battery-backed RTC with replaceable battery for accurate timekeeping.
- Compact DIN-Rail Design: Optimized for control cabinet installations with limited space.
- Low Power Consumption: Designed for energy-efficient operation with controlled heat dissipation.
The CX9010-0001 delivers the reliability and precision required for PLC control, EtherCAT-based automation, and modular embedded control systems.
