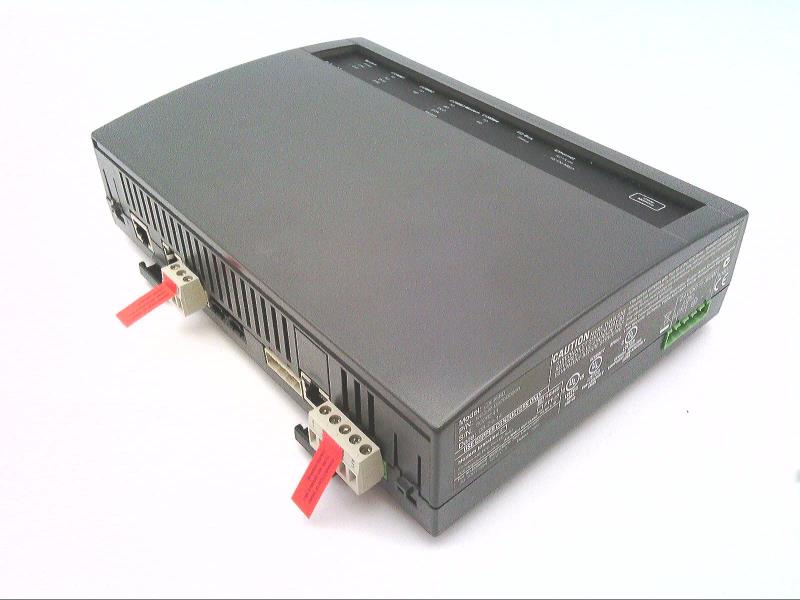

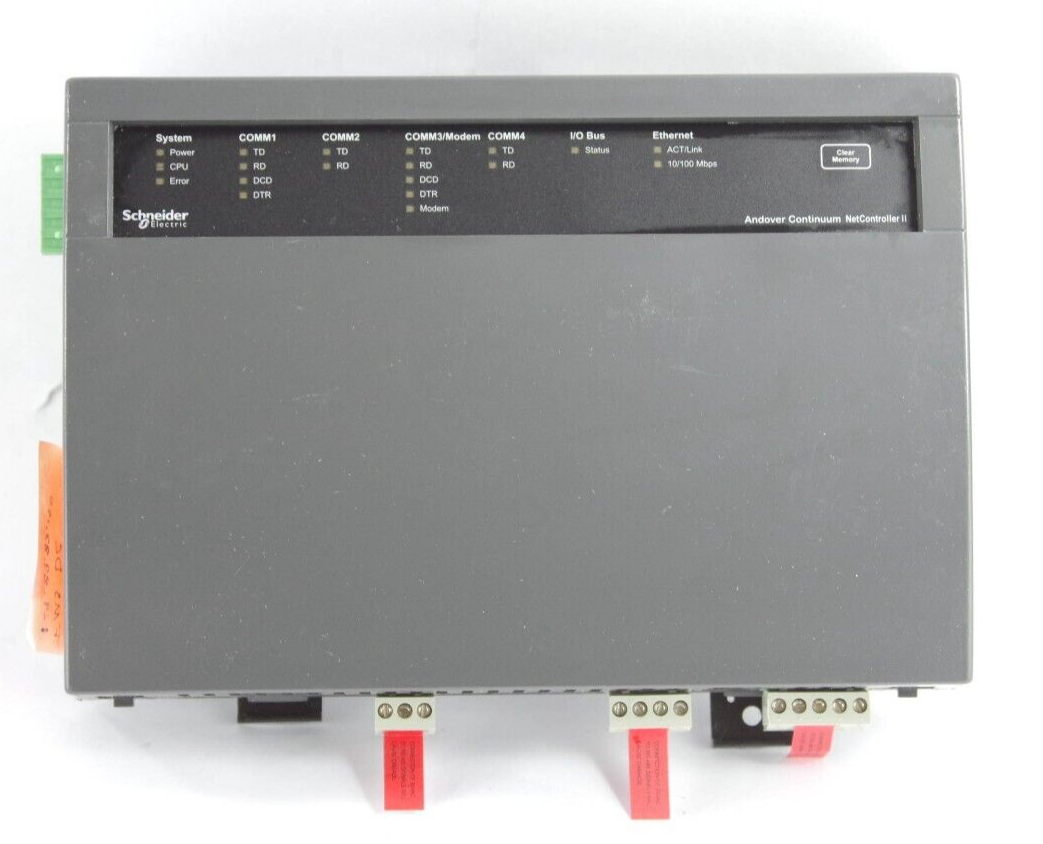

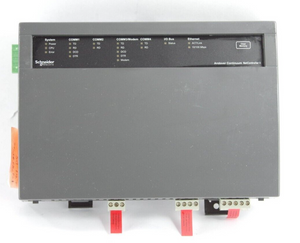

CX9680-NC2 | Schneider Electric PC Board PLC/Add-On Board

Description

Part # CX9680-NC2 is a PC board PLC add-on board under the PLCs/machine control category. It is designed to extend control capabilities within automation systems, enhancing machine control functionality.

Technical Specifications

Information About CX9680-NC2

The CX9680-NC2 is a programmable logic controller (PLC) add-on board designed specifically for the PLCs/machine control category, offering expanded control and automation capabilities in various industrial environments. It belongs to the NC2 Series, recognized for enhancing the flexibility and efficiency of machine control operations within complex systems. The board model, identified as Net Controller II, is tailored for seamless integration into existing automation frameworks, allowing for streamlined operation and enhanced communication between control units and external devices. With the model number NC2-R-000000000, this unit is built to align with stringent technical requirements, making it ideal for precision-oriented applications where reliability and consistent performance are critical.

The CX9680-NC2 is engineered to provide a stable and efficient RS-485 I/O bus interface, a communication standard well-suited for industrial environments due to its robust resistance to electrical noise and its ability to maintain signal integrity over long distances. This interface allows the CX9680-NC2 to connect with multiple devices and transmit data with minimal signal degradation, making it a practical choice for facilities where communication lines are exposed to industrial interference. The RS-485 standard supports differential signaling, ensuring that data integrity is preserved even in environments where electrical noise is prevalent. This feature is advantageous for automation systems that require reliable, long-distance communication across numerous interconnected devices within the control network.

A defining characteristic of the CX9680-NC2 is its 0-node configuration, indicating that it functions without adding extra nodes to the network, simplifying the integration process within pre-established control architectures. This 0-node setup is beneficial in systems where device count restrictions are enforced or where additional nodes could complicate data flow or network management. The absence of extra nodes minimizes network overhead and reduces potential latency, resulting in efficient data processing and optimized system performance. By omitting additional nodes, the CX9680-NC2 facilitates straightforward deployment in settings where it can supplement existing control schemes without requiring extensive reconfiguration or additional hardware investments.

As a part of the Net Controller II lineup, the CX9680-NC2 benefits from design features tailored to demanding automation applications, providing compatibility with a wide range of industrial control systems. Its add-on board form factor allows it to extend the functionality of main PLC units effectively, offering enhanced control options without occupying significant physical space. This compact design is ideal for installations with limited space, as it enables functionality expansion while maintaining a streamlined control system layout. Additionally, the board’s construction ensures durability, making it suitable for deployment in environments where control components are subject to continuous operation and require long-term reliability.
