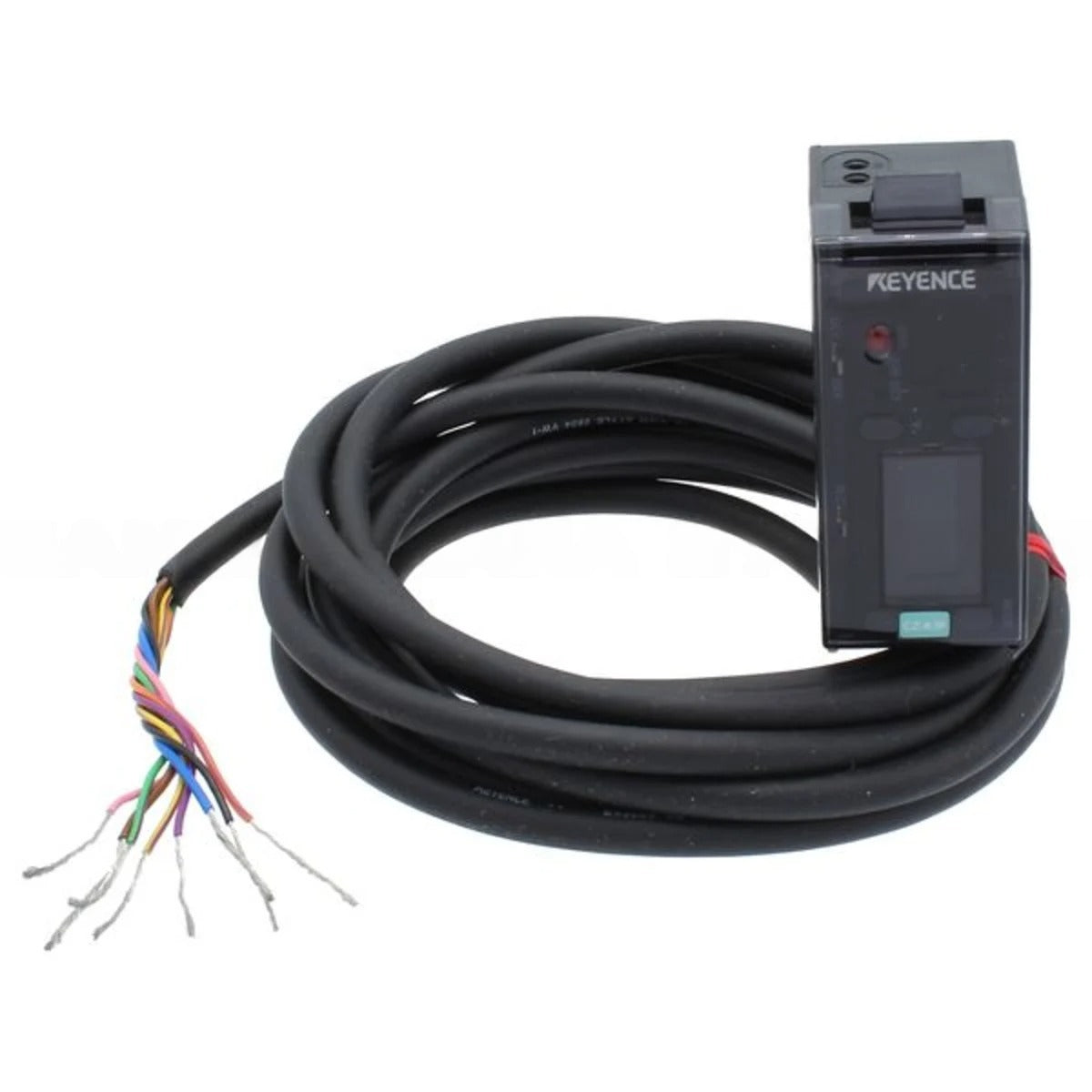

CZ-K1P | Keyence Color Sensor Amplifier, PNP Output, RGB LED, 12–24 VDC
- Regular price
- $317.00
- Sale price
- $317.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: CZ-K1P
Description
The Keyence CZ-K1P is a digital color sensor amplifier unit with PNP output, designed for high-speed and precise color differentiation in industrial automation applications. This amplifier features a multi-color LED light source (red, green, and blue) and advanced color detection algorithms to distinguish subtle color differences on various surfaces. Engineered for stability and reliability, the CZ-K1P provides consistent performance under variable lighting and environmental conditions.
Technical Specifications
| Condition | Discontinued by Manufacturer |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | CZ-K1P |
| Subcategory | Sensor Amplifier |
| Type | Digital Fiberoptic Color Sensor Amplifier (PNP Output) |
| Light Source | Red LED, Green LED, Blue LED |
| Response Time | 300 µs / 1 ms (switch-selectable) |
| Indicator Lamps | Red LED (output), Orange LED (calibration), Green LED (external sync) |
| Display | LCD display showing matching rate and received light intensity |
| Error Indication | Excess/insufficient light intensity, insufficient color difference |
| Calibration Method | 1-point / 2-point (switch-selectable) |
| Tolerance Adjustment | Numeric value setting via digital display |
| Differentiation Mode | C mode, C+I mode, I mode (switch-selectable) |
| Timer Function | OFF-delay (40 ms) / ON-delay / Timer OFF (switch-selectable) |
| Output Function | Match output (ON when color matches) / Mismatch output (ON when color differs) |
| External Synchronization Input | Response: 500 µs max |
| External Calibration Input | Response time: 20 ms min |
| Registered Color Selection | 8-bank via external input, non-volatile memory |
| Control Output | PNP open-collector, 40 VDC max, 100 mA max, residual voltage ≤1.0 V |
| Protection Circuit | Reverse polarity, overcurrent, surge absorber |
| Power Supply | 12–24 VDC ±10% (Ripple P-P 10% or less) |
| Current Consumption | 75 mA or less |
| Ambient Light Resistance | Incandescent lamp: 5000 lux max / Sunlight: 10,000 lux max |
| Operating Temperature | −10°C to +55°C (14°F to 131°F, no freezing) |
| Relative Humidity | 35%–85% RH (no condensation) |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude, 2 hours in each X/Y/Z direction |
| Shock Resistance | 500 m/s², 3 times each in X, Y, and Z directions |
| Case Material | Polycarbonate |
| Weight | Approx. 0.25 lbs (115 g including 2 m / 6.6 ft cable) |
Information About CZ-K1P
The CZ-K1P is part of the Keyence CZ series, a high-performance family of color sensors that use RGB LED illumination and a digital amplifier for detecting differences in color, shade, or gloss. The unit’s 1-point/2-point calibration, switchable differentiation modes (C mode, C+I mode, I mode), and numerical tolerance adjustment ensure flexibility for a range of applications, from packaging and labeling to printed material inspection.
With a response time as fast as 300 µs, the sensor is ideal for high-speed production lines. The LCD indicator provides real-time feedback on received light intensity and match rate, while its robust polycarbonate housing ensures long life in demanding environments.
Key Features:
- Tri-Color Light Source: Red, Green, and Blue LEDs enable precise color recognition and differentiation.
- Fast Response: Switchable response times — 300 µs or 1 ms for high-speed or stable detection.
- Adjustable Calibration: 1-point/2-point calibration for simple setup and reliable operation.
- PNP Output: Open-collector transistor output up to 40 VDC, 100 mA max.
- High Stability: Digital display with numeric tolerance adjustment minimizes false detections.
- External Inputs: Synchronization and calibration input terminals for process integration.
- Multiple Detection Modes: C, C+I, and I modes selectable for color, intensity, or combined detection.
- Environmental Resistance: Withstands industrial lighting and vibration, rated for IP40-equivalent conditions.
- 8-Bank Color Memory: Stores up to 8 registered colors for quick selection via external input.
- Compact Design: Lightweight and easily mountable amplifier for tight control panels.
