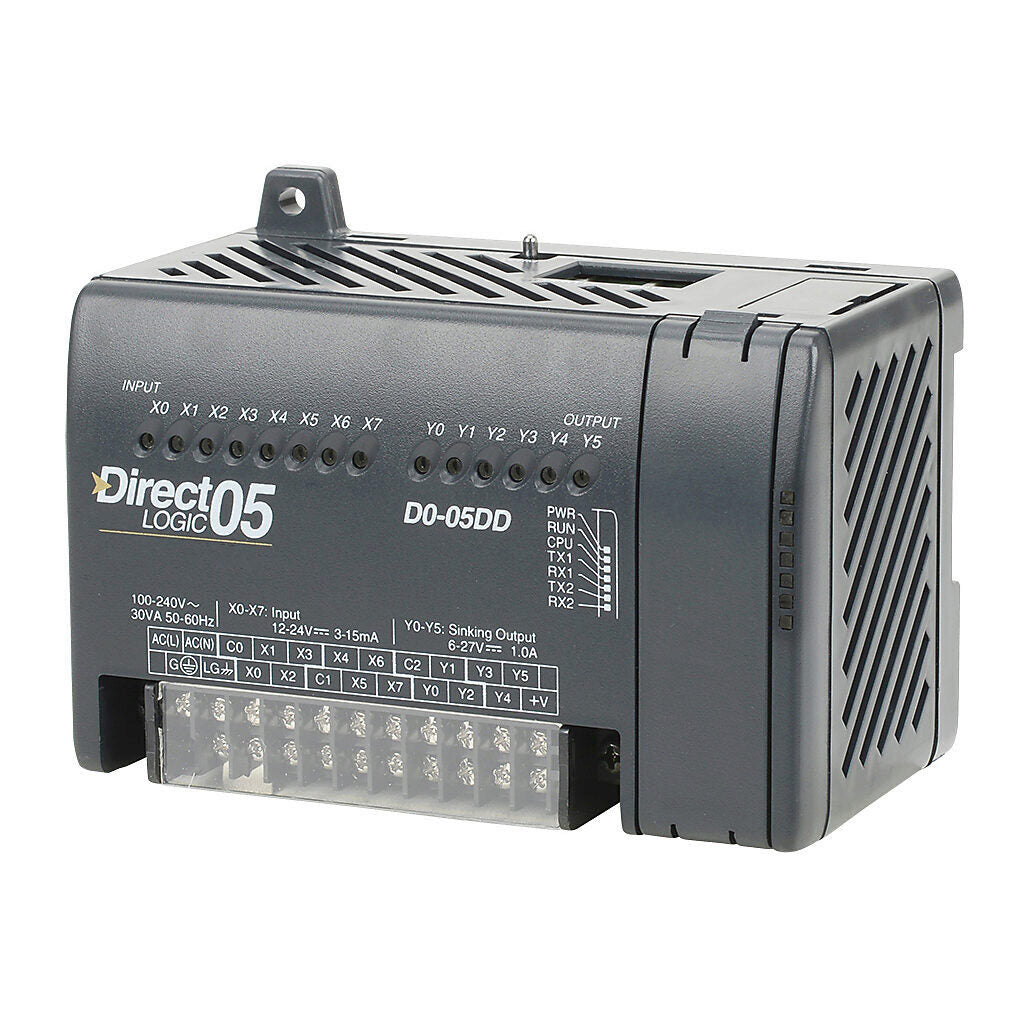

D0-05DD | Automation Direct DirectLOGIC PLC
- Regular price
- $759.00
- Sale price
- $759.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: D0-05DD
Description
The DL05 Micro PLC Model D0-05DD must have 95-240 VAC external power. And the amperage must be up to 30 VA. The input voltage must be between 10.8 and 26.4 VDC.
Technical Specifications
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | D0-05DD |
| Subcategory | PLC Module/Rack |
| Product Type | PLC |
Information About D0-05DD
The operating voltage must be between 12 and -24 VDC. There are two banks of four inputs. Each of the two banks common terminal that is isolated. Each can be configured as either sourcing sinking or inputs.
The output voltage must be between 5 and 30 VDC. The operating voltage range is required to be between 6 and 27 VDC. The terminal on the right side of the connector are used by the current sinking DC output channels and they use the same electrical common.The temperature must be between 32ºF and 131ºF (0º to 55ºC) and the ambient humidity range must be between 5 and 95% relative humidity (non-condensing).
Two RS–232C communication ports are featured. The DL05 Micro PLC Model D0-05DD also has DC inputs (8) and DC outputs (6).
Operating modes are available from a switch on the device. They are also accessible from a handheld programming device or optional DirectSOFT 5 programming software. Use the modes for troubleshooting.
You can connect a handheld programming device to Port 1 on the D0-05DD. You can also connect an operator interface, or other device containing DirectSOFT 5. Port 2 offers RS-232 communications only and it also is a is a 6-pin modular connector.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
