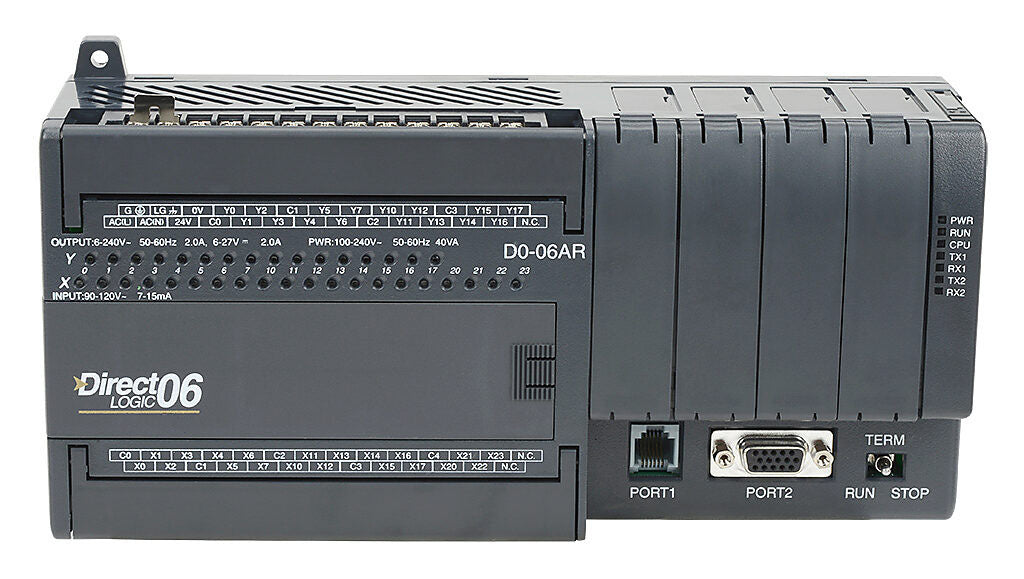

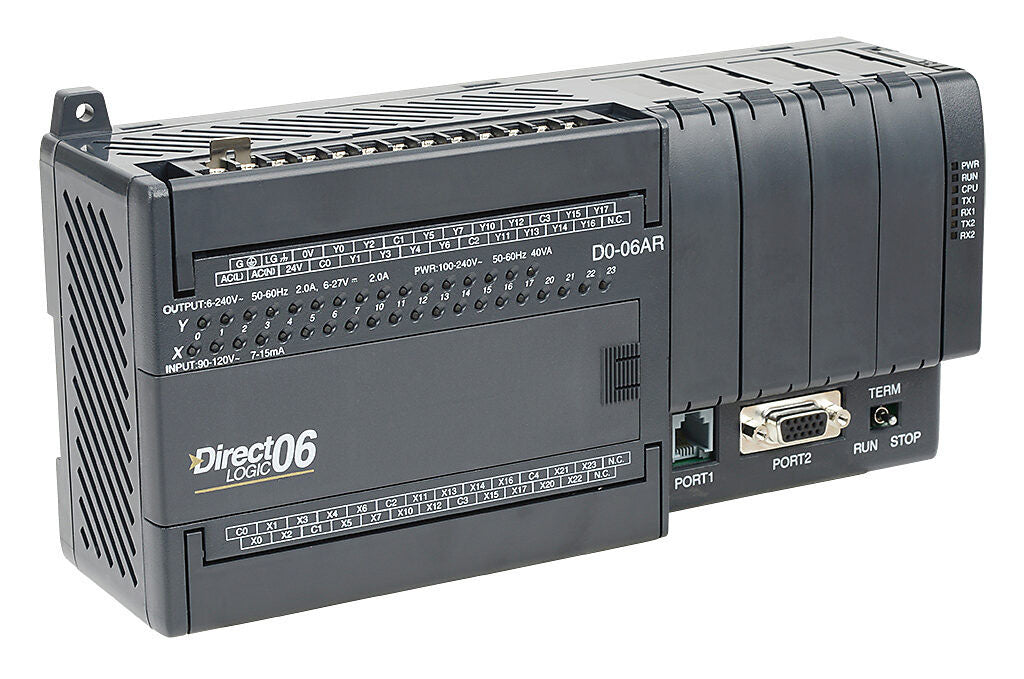

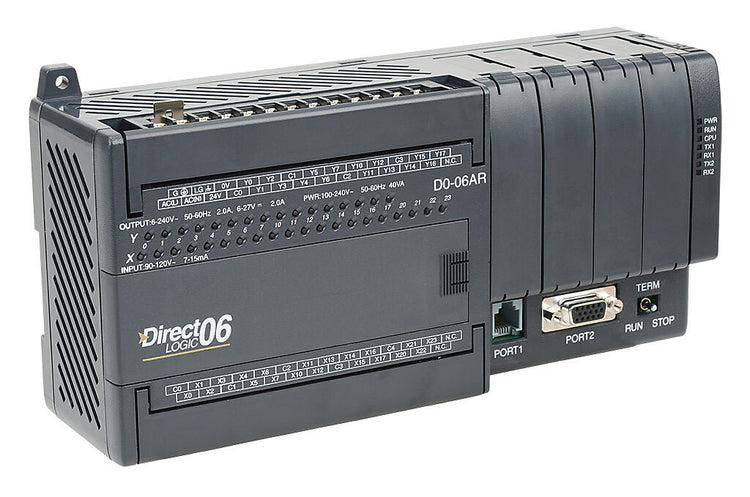

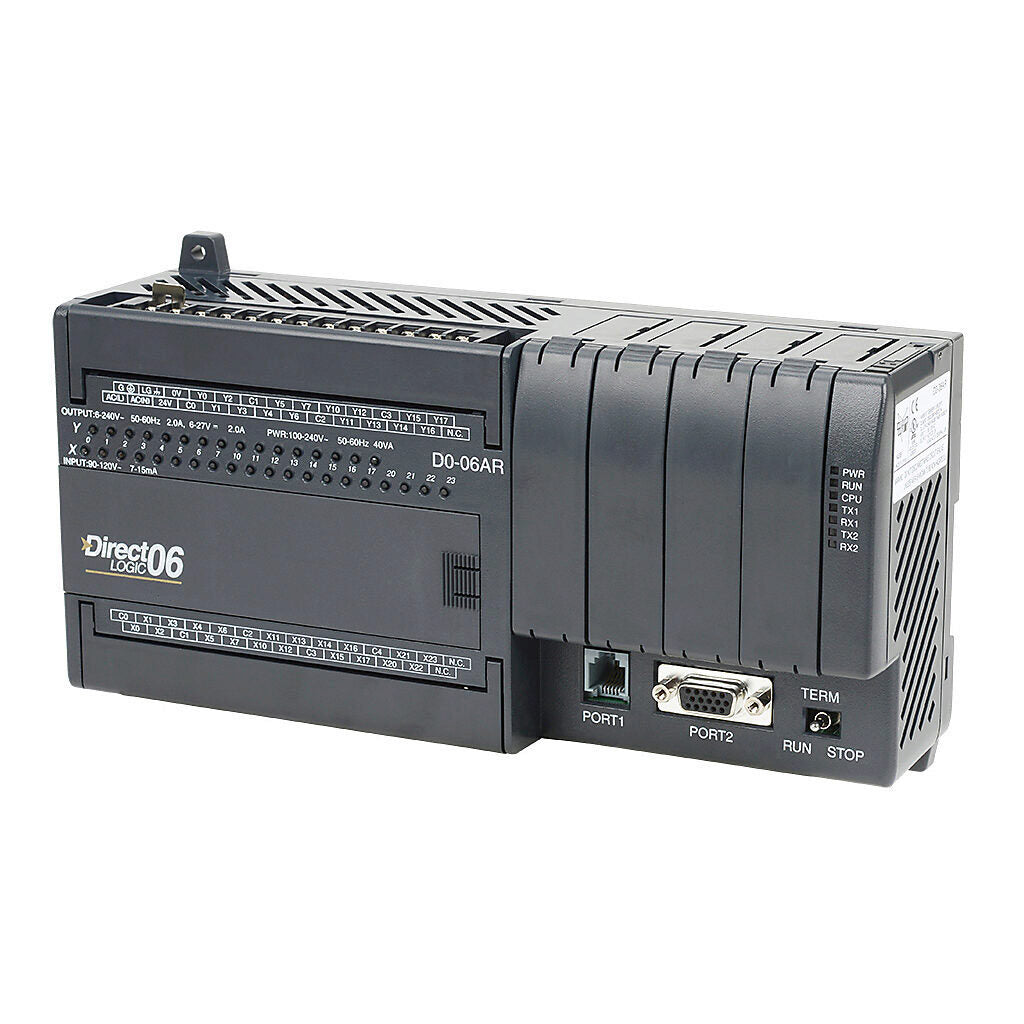

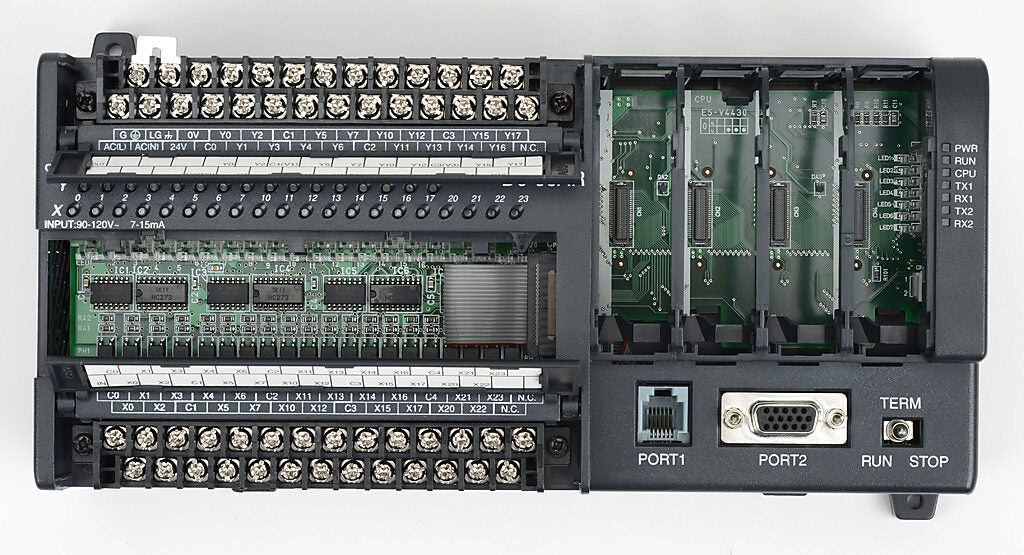

D0-06AR | Automation Direct DirectLOGIC DL06 PLC, 120-240 VAC required, serial ports, Discrete Input: 20-point, AC, Discrete Output: 16-point, relay.

Description

DL06 CPU, 20 AC in / 16 Relay out, requires external 110-220 VAC power, includes 300mA 24VDC auxiliary device power supply. 14.8k words total (7679 words ladder - flash, 7488 words V-memory), RLL/RLLPLUS programming (DirectSOFT32 Version 4.0 or higher), two built-in RS-232C communication ports. Secondary communications port supports RS-232C/RS-422/RS-485, DirectNET Master/Slave, MODBUS RTU, Master/Slave, and ASCII In/Out. Inputs: 20 AC inputs, 90-120 VAC, 5 isolated commons (4 inputs per common). Outputs: 16 relay outputs, 6-27 VDC, 6-240 VAC, 2A/point max., 4 isolated commons (4 points per common).

Technical Specifications

Information About D0-06AR

The Automation Direct D0-06AR is an advanced PLC unit from the DL06 series, meticulously designed to enhance the efficiency and control of industrial automation systems. This powerful and versatile PLC offers a robust set of features tailored to meet the demands of complex industrial environments, providing reliable performance and extensive functionality.

The D0-06AR boasts a total memory capacity of 14.8k words, divided into 7k words of ladder memory and 7k words of user data memory. This ample memory allocation ensures that the unit can handle extensive programming and data storage needs, making it ideal for sophisticated control applications. The ladder memory is specifically designed for developing detailed control logic, while the user data memory supports extensive data handling capabilities.

Operating on an external power requirement of 120-240 VAC, the D0-06AR is versatile and compatible with a wide range of power sources, ensuring seamless integration into various industrial setups. The unit is equipped with 20 discrete input points, each designed to accept a nominal input voltage of 120 VAC. This AC voltage type input is common in many industrial applications, providing flexibility and ease of use.

The D0-06AR features five isolated discrete input commons, with each common supporting four discrete input points. This configuration enhances signal integrity and reduces the risk of interference, ensuring accurate input signal processing. On the output side, the unit offers 16 discrete output points with a nominal output voltage range of 6-24 VDC or 6-240 VAC. These outputs are managed by relay types, specifically (16) Form A (SPST) relays, each capable of handling a load current of 2A per point.

The output section includes four isolated discrete output commons, each supporting four discrete output points. This isolation ensures that signals are managed effectively, reducing potential cross-talk and enhancing overall system reliability. The relay configuration allows for versatile control of various devices, accommodating both DC and AC loads, making the D0-06AR suitable for a wide array of industrial applications.

One of the standout features of the D0-06AR is its capability to manage up to eight PID loops. This advanced control functionality enables precise process control, essential for maintaining optimal performance in complex industrial systems. The ability to handle multiple PID loops makes this unit particularly valuable for applications requiring stringent control and regulation.

The Automation Direct D0-06AR is a comprehensive solution for industrial automation, providing a blend of high memory capacity, versatile input and output configurations, and advanced control capabilities. Its robust design and extensive features ensure that it can meet the demands of modern industrial environments, delivering reliable and efficient performance. Whether used for new installations or upgrading existing systems, the D0-06AR from the DL06 series represents a powerful tool for enhancing industrial automation and control.

In summary, the Automation Direct D0-06AR is a high-quality PLC unit designed for demanding industrial applications. With its extensive memory, versatile input and output configurations, and advanced control features, it offers unmatched reliability and performance. This PLC unit exemplifies Automation Direct's commitment to innovation and excellence in industrial automation, providing a robust solution that enhances operational efficiency and control precision.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
