D0-06DD2-D | Automation Direct Koyo PLC Direct 20 DC Input 16 DC Source Output with DC Power Supply
- Regular price
- $747.00
- Sale price
- $747.00
- Regular price
-
Do you need more quantity?
Product Description P/N: D0-06DD2-D
Description

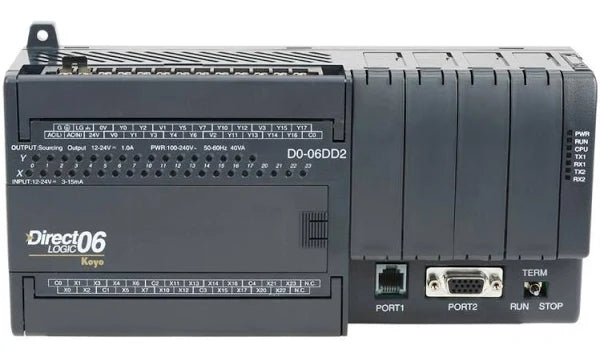

The Automation Direct Koyo PLC D0-06DD2-D offers compact control with 20 DC inputs and 16 DC source outputs. Featuring an integrated DC power supply, it provides efficient and reliable automation for various industrial applications.
Technical Specifications
Brand | Automation Direct |
Power Source Type | AC power source |
Part Number | D0-06DD2-D |
Points | 20 |
Input Function | 12 to 24 V DC Sink/source |
Points | 16 |
Output Function | 12 to 24 V DC Source |
Program Memory Capacity (Word) | 14.8 K |
Ladder Memory Capacity (Word) | 7,680 |
Connection | 6-pin modular Protocol: K sequence (S), DirectNET (S), MODBUS (S)Communication Function (Port 2): RS-232C/RS-422/RS-485 |
Transmission speed | 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400 bps |
Standard Scan Time (During 1K Boolean Operation) | 1 to 2 ms |
Information About D0-06DD2-D
The D0-06DD2-D is a DL06 base unit belonging to the Direct Logic 06 series by Automation Direct. This base unit has a DC power supply with a voltage range from 12-24 Volts DC or 20 Watts. It has 20 sink/source DC input points and 5 isolated commons. The D0-06DD2-D unit can sustain an input voltage range from 12 to 24 Volts DC. Its input impedance rating is either 1.8K at 12 to 24 Volts DC (X0-X3) or 2.8K at 12 to 24 Volts DC (X4-423). The on current is 5mA with a voltage level of 10 Volts DC or higher and the off current is 0.5mA with a voltage level of 2 Volts DC or lower. The typical off to on and on to off response time is 4mS; however, the response time can range from 2 to 8mS.
Automation Directs’ D0-06DD2-D base unit also has 16 sourcing DC output points with 4 isolated commons. The rated output voltage range is from 12 to 24 Volts DC with a peak voltage of 30 Volts DC. The maximum frequency supported by points Y0 and Y1 are 10kHz. The on voltage drop at points Y0 and Y1 is 0.5 Volts DC at 1 ampere and the on voltage drop at points Y2-Y17 is 1.2 Volts DC at 1 ampere. The output points on this unit can support a maximum current of either 0.5A or 1.0A—it is important to double check which output point is being utilized and the output specifications of that point. The maximum leakage current you can expect from this unit is 15 µA at 30 Volts DC. The status indicators for the D0-06DD2-D are located on the logic side of the unit. Please note that this unit does not have fuses and external fuses are recommended to protect the system.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
