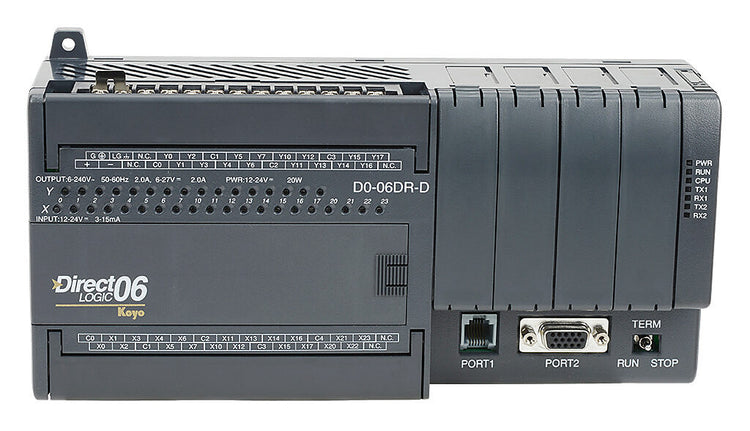

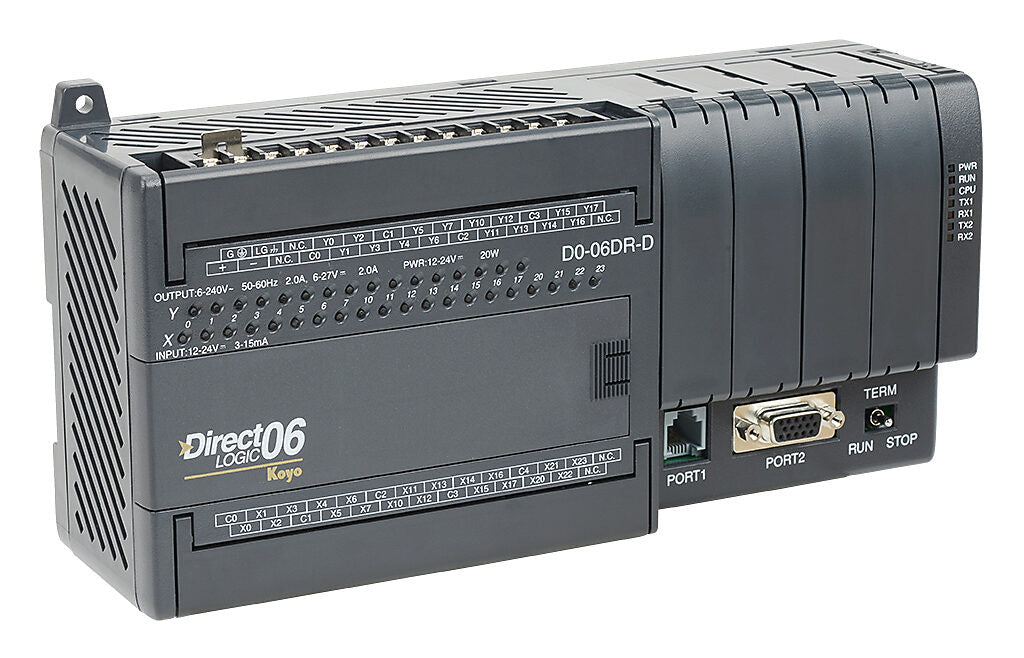

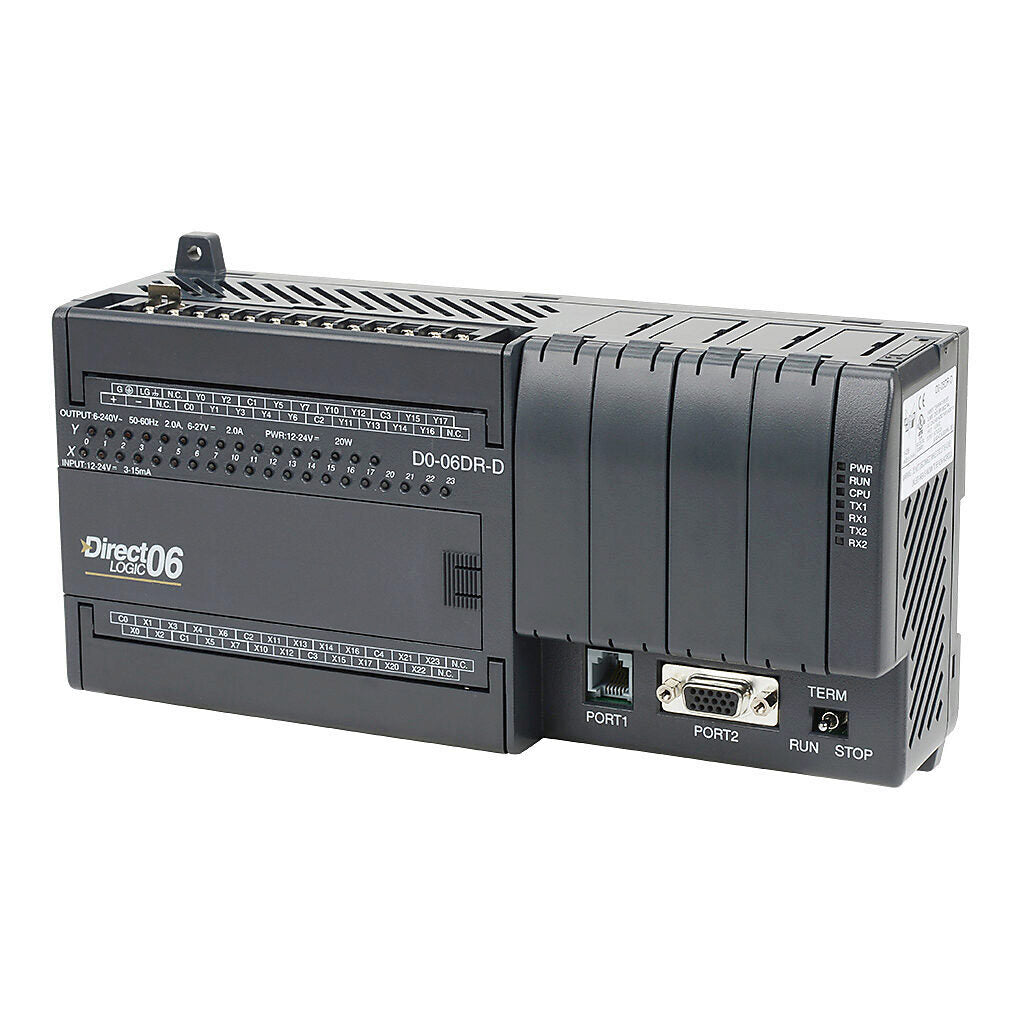

D0-06DR-D | Automation Direct Direct Logic 06 Micro PLC Model
- Regular price
- $712.00
- Sale price
- $712.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D0-06DR-D
Description
The D0-06DR-D is a micro programmable logic controller (PLC) from the Direct Logic 06 series. It features six discrete inputs and four relay outputs, designed for small-scale automation applications. The unit operates with a 12-24V DC power supply. It supports ladder logic programming and is compatible with DirectSOFT programming software. The PLC has built-in communication ports for RS-232 and RS-485, enabling integration into existing networks. It is suitable for use in environments requiring simple control tasks, providing basic automation functionalities in compact form.
Technical Specifications
|
Part # |
D0-06DR-D |
|
Category |
Controls & Indicators |
|
Subcategory |
CPU/Control Board 12-24 VDC Required |
|
Serial Ports |
Yes |
|
Discrete Input |
20-Point DC |
|
Discrete Output |
16-Point Relay |
Information About D0-06DR-D
The D0-06DR-D is a highly reliable and compact programmable logic controller (PLC) designed for a variety of industrial control and automation applications. It is equipped with essential features for small to medium-scale automation systems. This micro PLC is part of the Direct Logic 06 series and offers a combination of flexibility and robust performance. The D0-06DR-D is classified as a CPU/Control Board, with a required input voltage range of 12-24 VDC. Its power requirements make it suitable for a wide range of industrial environments where low voltage DC power is commonly used. The unit's discrete input and output capabilities provide efficient control over various types of machinery and equipment, ensuring consistent operation in both simple and complex control tasks.
This PLC is equipped with 20 discrete DC inputs, making it highly versatile for connecting with various sensors, switches, and other input devices. The DC input interface is designed for rapid and accurate signal processing, enabling precise detection and control of equipment status. Additionally, the D0-06DR-D includes 16 discrete relay outputs, which are commonly used for driving loads such as solenoids, motor starters, and other output devices that require switching. These relay outputs ensure durability and are capable of handling moderate to high-power switching applications.
The D0-06DR-D comes with built-in serial communication ports, enabling seamless integration into existing automation networks. The presence of RS-232 and RS-485 ports allows the PLC to communicate with other devices, controllers, or monitoring systems. This communication capability enhances the versatility of the D0-06DR-D by enabling data exchange with human-machine interfaces (HMIs), supervisory control and data acquisition (SCADA) systems, and other networked automation devices. With serial communication, this PLC can be incorporated into complex distributed control systems, ensuring data consistency and synchronized operation across all components.
The D0-06DR-D supports ladder logic programming, a widely used method for programming PLCs that simplifies the creation and modification of control systems. The PLC is compatible with DirectSOFT programming software, a comprehensive tool that allows for efficient programming, troubleshooting, and monitoring of the control system. DirectSOFT provides an intuitive interface for users to develop and deploy their control logic, ensuring that the PLC can be tailored to meet the specific needs of any application. With a wide range of instructions and programming flexibility, the D0-06DR-D offers enhanced functionality in automation tasks.
With its compact and durable design, the D0-06DR-D is ideal for applications where space is limited. The unit can be easily mounted in control panels, reducing the need for additional space and infrastructure. The form factor is designed to fit into standard industrial enclosures, ensuring that it can be integrated into a variety of environments without significant modification to existing setups. This compact design is particularly beneficial in industries where control equipment must be densely packed, such as in manufacturing, food processing, and material handling.
The D0-06DR-D micro PLC is suitable for a wide array of applications in industries that require reliable and efficient automation solutions. It can be used to control processes ranging from basic machinery operation to more complex systems involving multiple sensors and actuators. Its input and output configuration, combined with serial communication capabilities, makes it a valuable component in automated production lines, packaging systems, HVAC systems, and other industrial operations that require consistent monitoring and control.
Additionally, the robust relay outputs of the D0-06DR-D make it well-suited for applications where electrical isolation or high-power switching is required. The relays can handle higher loads compared to solid-state outputs, providing reliable control over devices such as motors, valves, and other high-current devices.
Designed for industrial environments, the D0-06DR-D is built to withstand harsh conditions, including temperature fluctuations, electrical noise, and mechanical vibrations. Its relay outputs are engineered for longevity, ensuring that the PLC can operate reliably over extended periods without failure. This durability makes it a dependable choice for continuous operation in industrial settings, where downtime and equipment failure can result in costly delays.
The D0-06DR-D also includes protective features such as overcurrent protection for its relay outputs, ensuring that the unit can safely operate even in demanding conditions. This added layer of protection helps to prevent damage to the PLC and connected devices, extending the overall lifespan of the system.
The D0-06DR-D micro PLC is a versatile, compact, and reliable solution for industrial automation applications that require efficient control of input and output devices. Its combination of 20 discrete DC inputs, 16 discrete relay outputs, and built-in serial communication ports makes it an ideal choice for controlling and monitoring a wide range of processes. With support for ladder logic programming and compatibility with DirectSOFT software, the D0-06DR-D is easy to program and adaptable to various automation needs.
Its robust design, relay output capabilities, and ease of integration into existing systems make the D0-06DR-D a suitable choice for industries that demand reliable performance and long-term durability. Whether used in small-scale machinery control or as part of a larger distributed control system, the D0-06DR-D offers the functionality and performance needed to ensure efficient and reliable automation in any industrial environment.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
