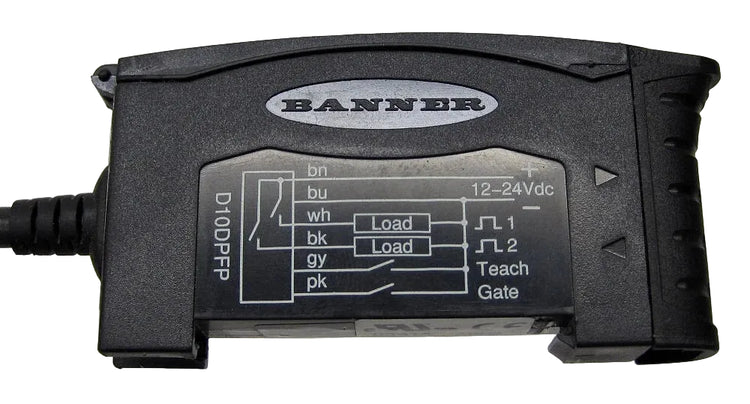

D10DPFP | Banner Engineering D10 Expert Fiber Optic Photoelectric Sensor
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D10DPFP
Description
The Banner Engineering D10DPFP is a D10 Series fiber optic photoelectric sensor designed for precise object detection using plastic fiber optics and a red beam light source. It provides selectable sensing modes and fast response times to support reliable detection in industrial automation systems. This sensor is DIN rail mountable and intended for control cabinet installations where space-efficient fiber optic sensing is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | D10DPFP |
| Subcategory | Fiber Optic Sensors |
| Series | D10 Series |
| Sensor Type | Fiber Optic Photoelectric |
| Light Source | Red LED |
| Sensing Mode | Selectable |
| Output Type | PNP |
| Input/Output | Discrete |
| Supply Voltage | 24 VDC |
| Switching Current | 150 mA |
| Response Time | 50 µs, 200 µs, 1 ms, 2.5 ms |
| Mounting Type | DIN Rail |
| Connection | 2 m Cable |
| Housing Material | Thermoplastic |
| Cover Material | Polycarbonate |
| IP Rating | IP50 |
| NEMA Rating | NEMA 1 |
| Operating Temperature | -20°C to 55°C |
| Number of Pins | 6 |
| Weight | 0.23 lbs |
Information About D10DPFP
The D10DPFP is part of Banner Engineering’s 10 Expert (D10) Series, developed for flexible and accurate fiber optic sensing applications. It is designed to operate with plastic fiber optic cables and offers selectable sensing modes to adapt to different detection requirements. The sensor features a rugged thermoplastic housing with a DIN rail mounting style for organized panel installation. Its discrete PNP output and integrated display support straightforward setup, diagnostics, and integration into industrial control systems.
Key Features:
- D10 Expert Series Platform: Designed for reliable fiber optic sensing in industrial environments.
- Red Beam Photoelectric Technology: Provides consistent detection using plastic fiber optics.
- Selectable Sensing Modes: Allows configuration for various detection requirements.
- Fast Response Options: Supports response times from 50 µs to 2.5 ms for high-speed applications.
- DIN Rail Mounting: Enables clean and efficient installation inside control panels.
- Discrete PNP Output: Compatible with standard 24 VDC control systems.
- Integrated Digital Display: Assists with setup, monitoring, and diagnostics.
The D10DPFP delivers the reliability and precision required for fiber optic photoelectric sensing in industrial automation applications.
