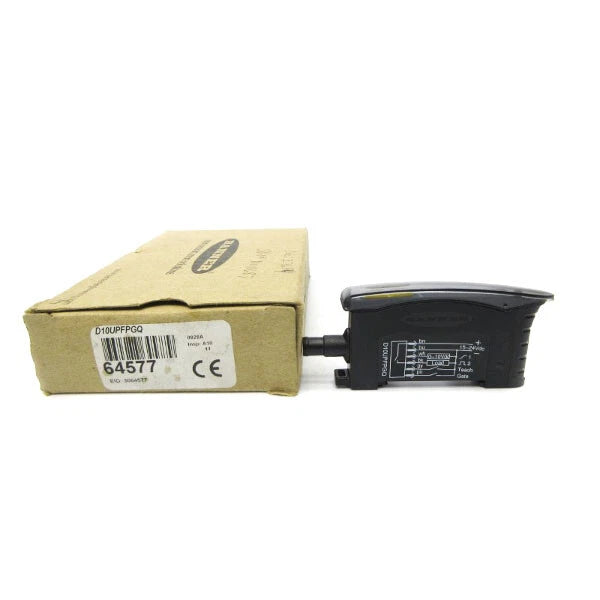

D10UPFPGQ | Banner Engineering D10 Fiber Optic Amplifier, PNP Output, DIN Rail Mount
- Regular price
- $885.00
- Sale price
- $885.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D10UPFPGQ
Description
The Banner Engineering D10UPFPGQ is a fiber optic sensor amplifier designed to interface with plastic or glass fiber optic cables for industrial photoelectric sensing. It provides both analog and discrete PNP outputs and uses a visible green LED light source for reliable signal detection. The unit is intended for DIN rail mounting in control panels and automated systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | D10UPFPGQ |
| Subcategory | Fiber Optic Amplifier |
| Series | D10 |
| Sensing Method | Fiber Optic |
| Accepted Fiber Types | Plastic and Glass |
| Accepted Termination | Unterminated or T5 |
| Light Source | Visible Green LED |
| Output Type | PNP |
| Output Configuration | Analog (0–10 VDC) and Discrete |
| Supply Voltage | 15–24 VDC |
| Minimum Response Time | 0.05 ms |
| Repeatability | 25–100 µs |
| Mounting Type | DIN Rail |
| Connection Type | Integral Quick Disconnect |
| Quick Disconnect | M8, 6-pin |
| Housing Material | Thermoplastic |
| Environmental Rating | IP50 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | 90% at 50°C (max) |
| Indicators | Single Digital Display |
Information About D10UPFPGQ
The D10UPFPGQ is part of the Banner Engineering D10 Series fiber optic amplifiers, developed for flexible sensing configurations using remote fiber optics. It accepts unterminated plastic fibers or T5-terminated fibers and supports crosstalk avoidance for multi-sensor installations. The amplifier operates on a 15–24 VDC power supply and includes teach-button adjustment and remote teach capability for simplified setup. Its thermoplastic housing and compact DIN rail form factor make it suitable for panel-mounted industrial control environments.
Key Features:
-
Fiber optic sensing method: Supports remote sensing using plastic or glass fiber cables.
-
Visible green LED source: Provides stable illumination for fiber optic detection.
-
Analog and discrete outputs: Combines 0–10 VDC analog output with PNP discrete switching.
-
Fast response time: Minimum response of 0.05 ms for high-speed detection.
-
Crosstalk avoidance function: Enables reliable operation in multi-amplifier installations.
-
Teach-button adjustment: Allows quick setup without external tools.
-
DIN rail mounting: Designed for organized installation inside control cabinets.
The D10UPFPGQ delivers the reliability and precision required for industrial fiber optic sensing and signal processing applications.
