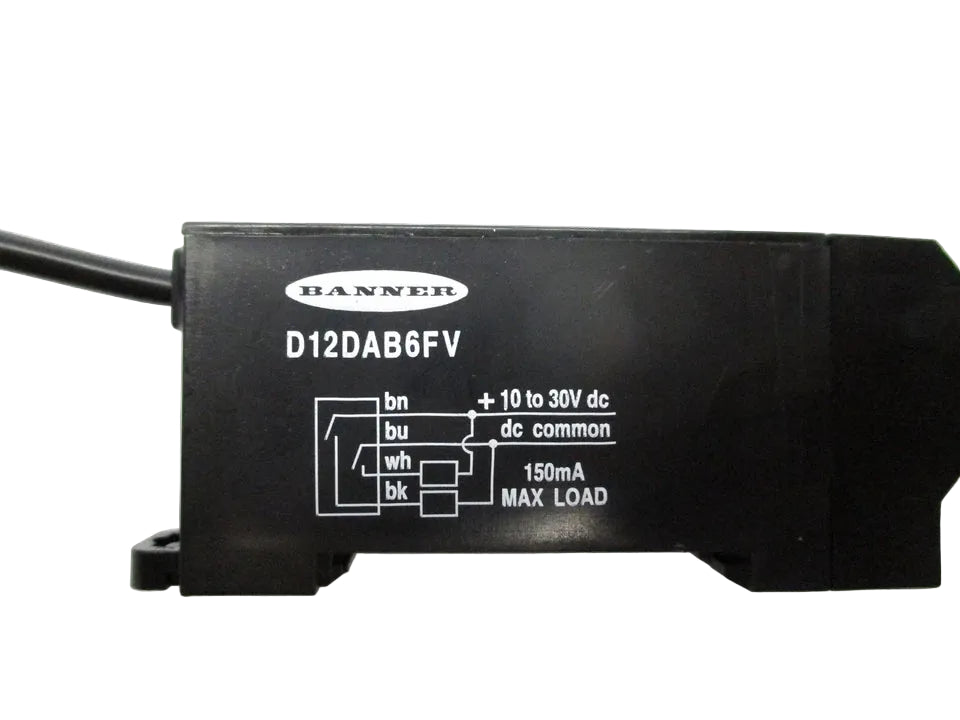

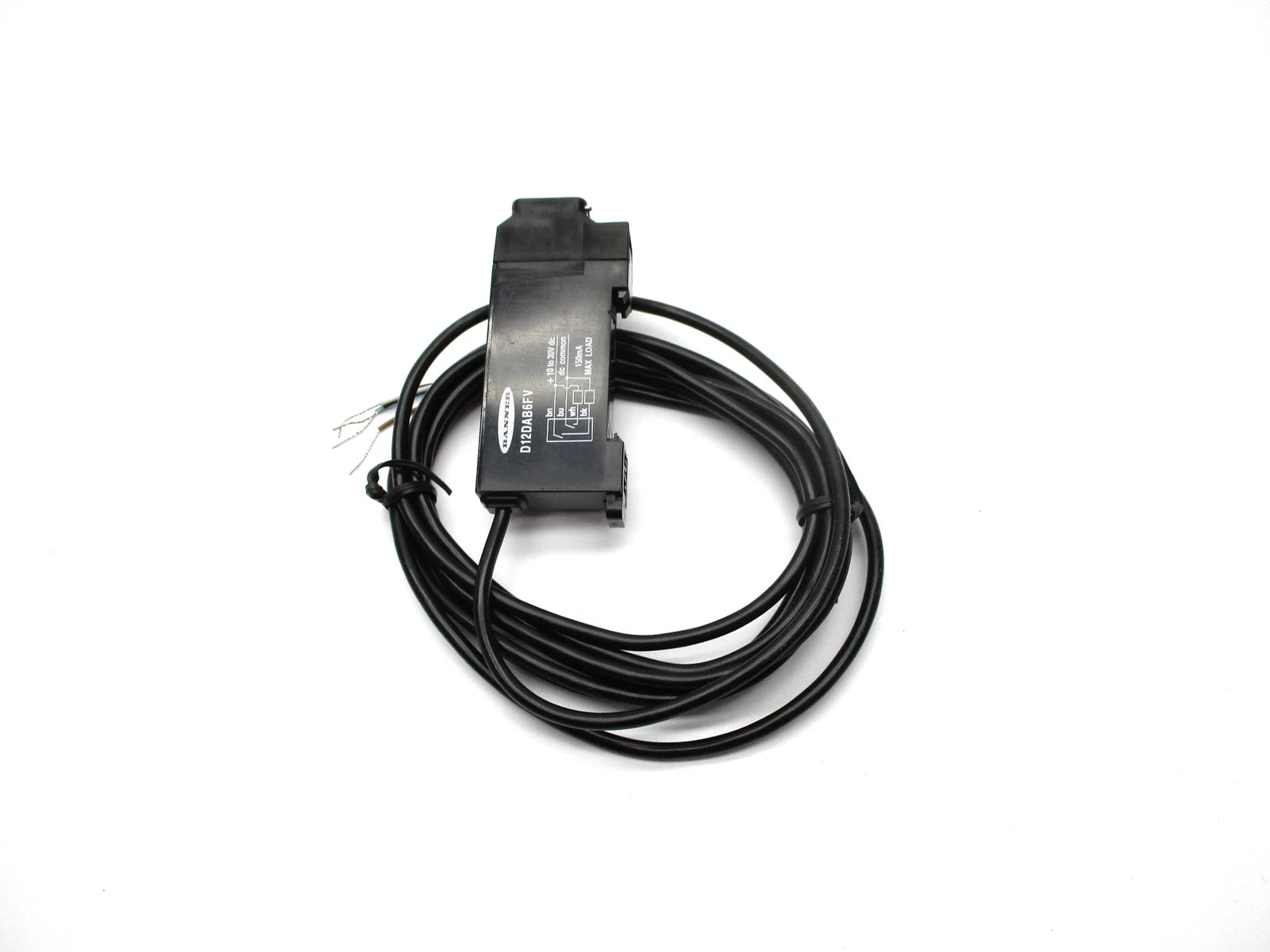

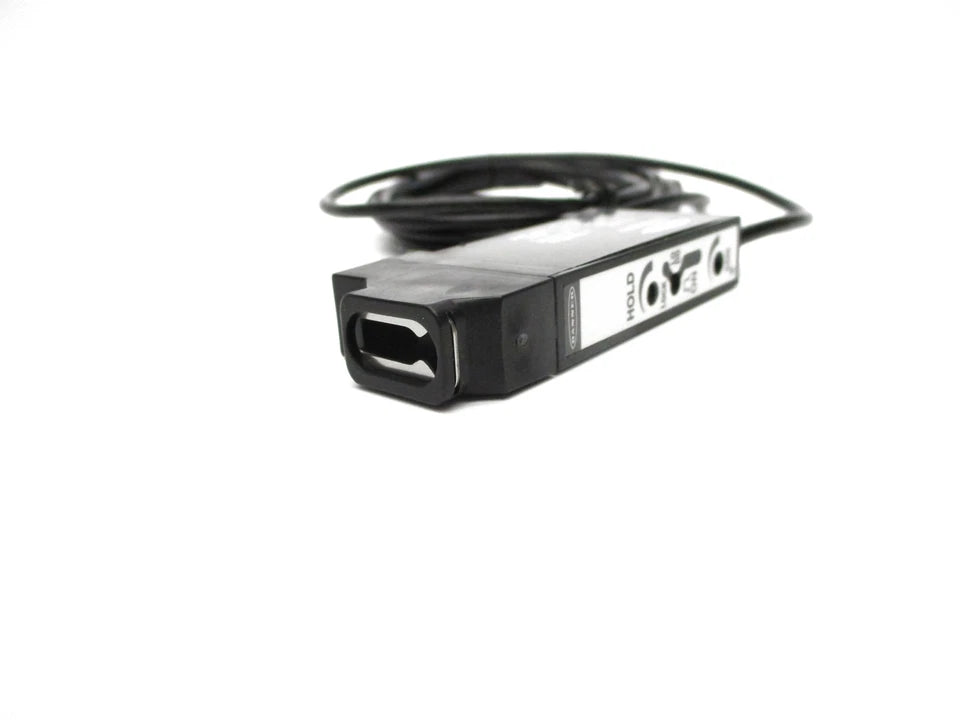

D12DAB6FV | Banner Engineering D12 Glass Fiber Optic Amplifier, Bipolar Output
- Regular price
- $417.00
- Sale price
- $417.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D12DAB6FV
Description
The Banner Engineering D12DAB6FV is a D12 Series glass fiber optic amplifier designed to provide fast, reliable discrete sensing for industrial automation applications. Operating on a 10–30 VDC supply, this amplifier supports bipolar NPN/PNP outputs and delivers high-speed response for precise object detection and counting tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | D12DAB6FV |
| Subcategory | Fiber Optic Amplifiers |
| Series | D12 Series |
| Product Type | Glass Fiber Optic Amplifier |
| Fiber Type Supported | Glass Fiber Only |
| Supply Voltage | 10–30 VDC |
| Output Type | Discrete |
| Output Configuration | Bipolar (1 NPN, 1 PNP) |
| Minimum Response Time | 0.05 ms |
| Repeatability | 15 µs |
| Delay at Power-Up | 100 ms |
| Connection Type | Cable |
| Cable Length | 2 m (6.5 ft) |
| Housing Style | DIN Rail |
| Housing Material | Thermoplastic |
| Indicators | Red LED Indicators |
| Adjustment Method | Potentiometer |
| IP Rating | IP11 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | Up to 90% RH at 50°C |
| Application | Object Counting |
| Weight | 0.15 lbs |
Information About D12DAB6FV
The D12DAB6FV is part of Banner Engineering’s D12 Series fiber optic amplifiers, engineered for use exclusively with glass fiber terminations. This unit functions as a discrete-output amplifier where sensing range is determined by the connected fiber optic assembly. It features a DIN-rail-mountable thermoplastic housing with LED indicators and potentiometer adjustment for straightforward setup and monitoring. Designed for harsh industrial environments, it supports wide operating temperatures and consistent performance in automation and inspection systems.
Key Features:
- Glass Fiber Optic Amplifier: Designed for use with glass fiber terminations only for precise optical sensing.
- Bipolar Discrete Outputs: Provides both NPN and PNP outputs for flexible PLC integration.
- High-Speed Response: Minimum response time of 0.05 ms supports fast object detection and counting.
- DIN Rail Mount Housing: Enables clean and secure installation inside control panels.
- LED Status Indicators: Red LED indicators provide clear operational and alignment feedback.
- Adjustable Sensitivity: Potentiometer adjustment allows fine-tuning based on application needs.
- Wide Operating Temperature Range: Supports reliable operation from -40°C to 70°C.
The D12DAB6FV delivers the reliability and precision required for high-speed fiber optic sensing and object counting applications in industrial automation.
