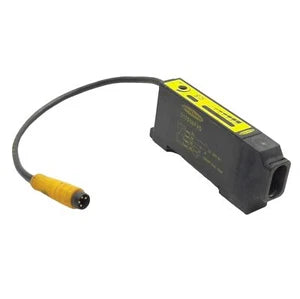

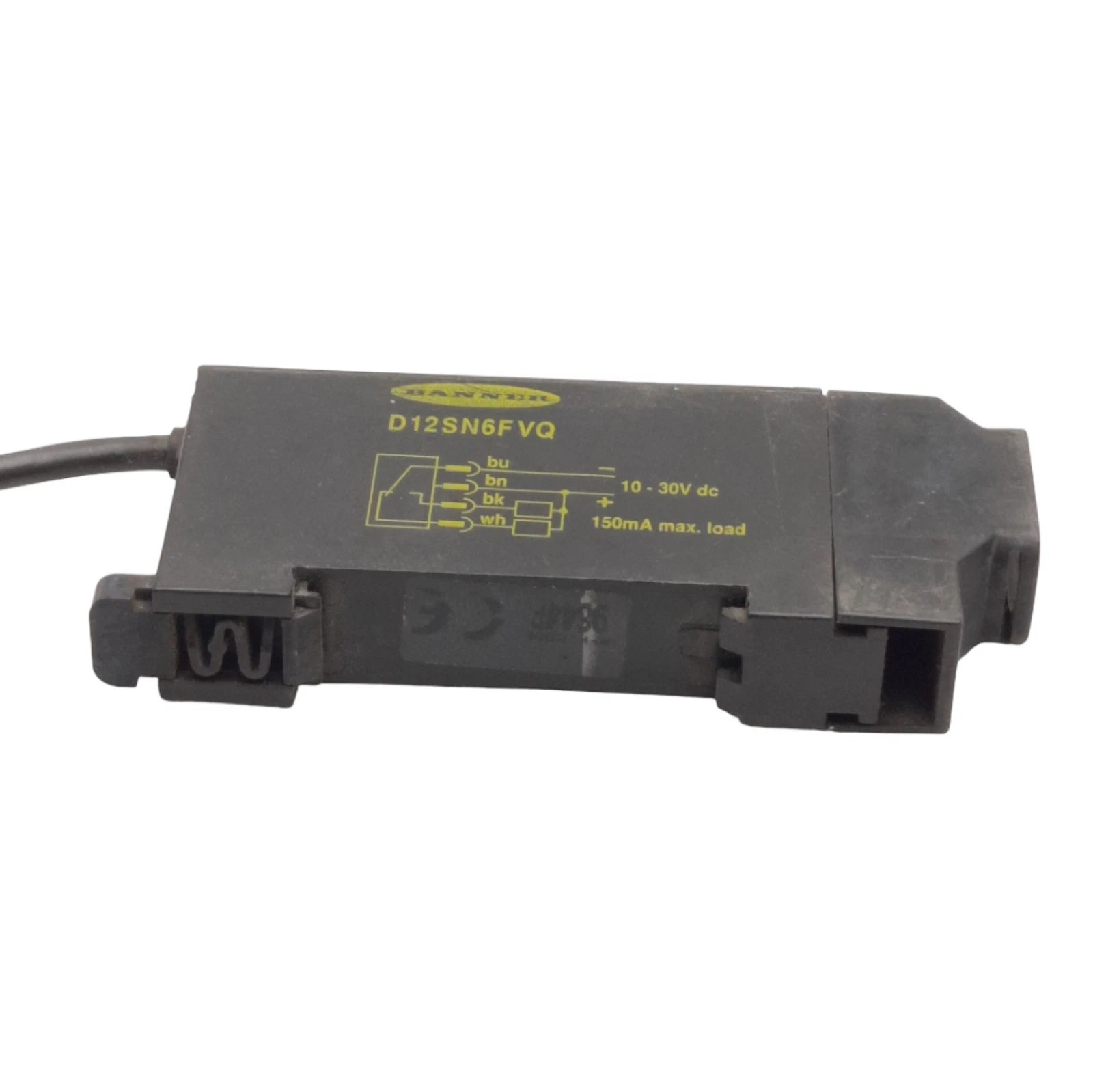

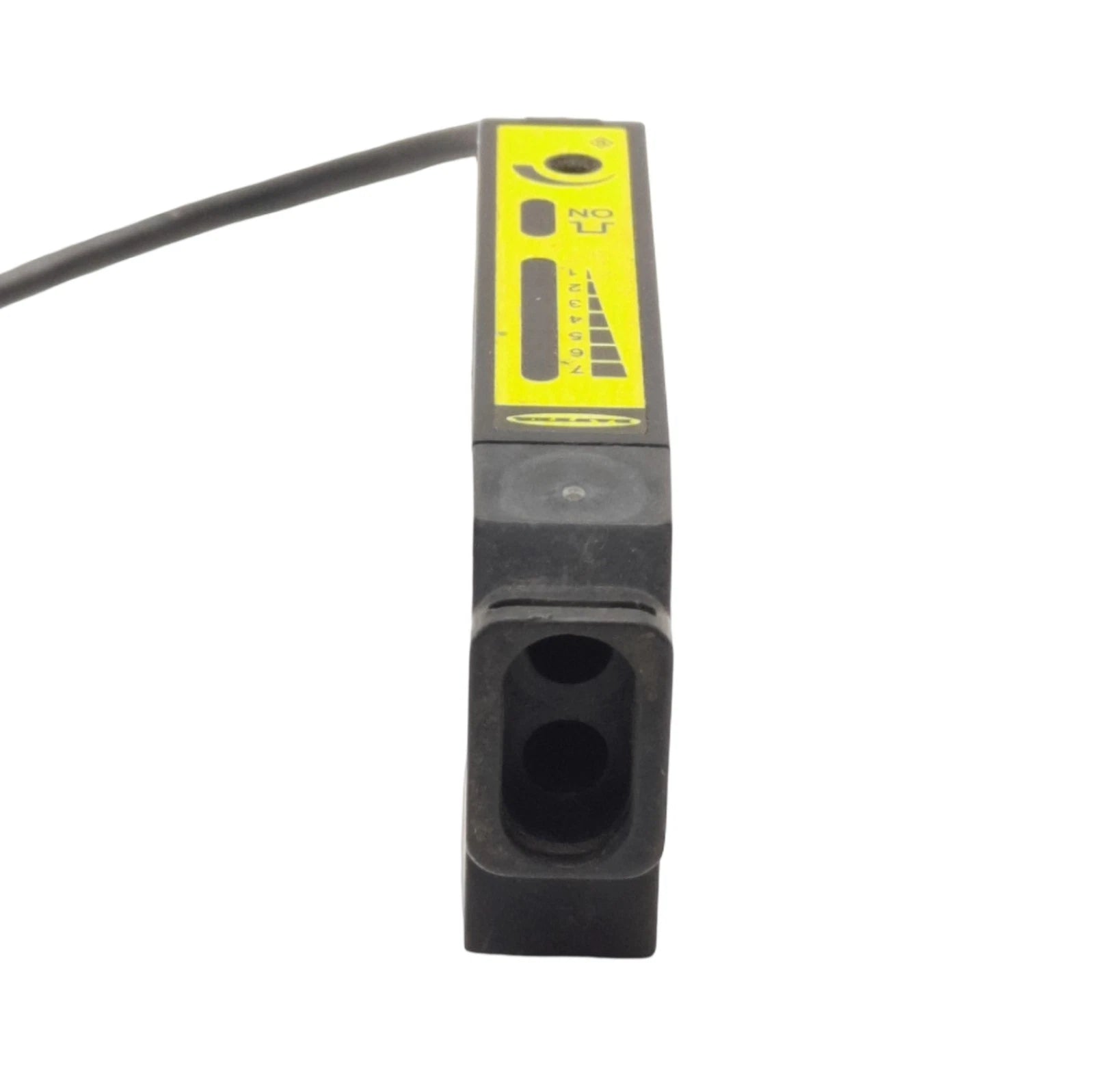

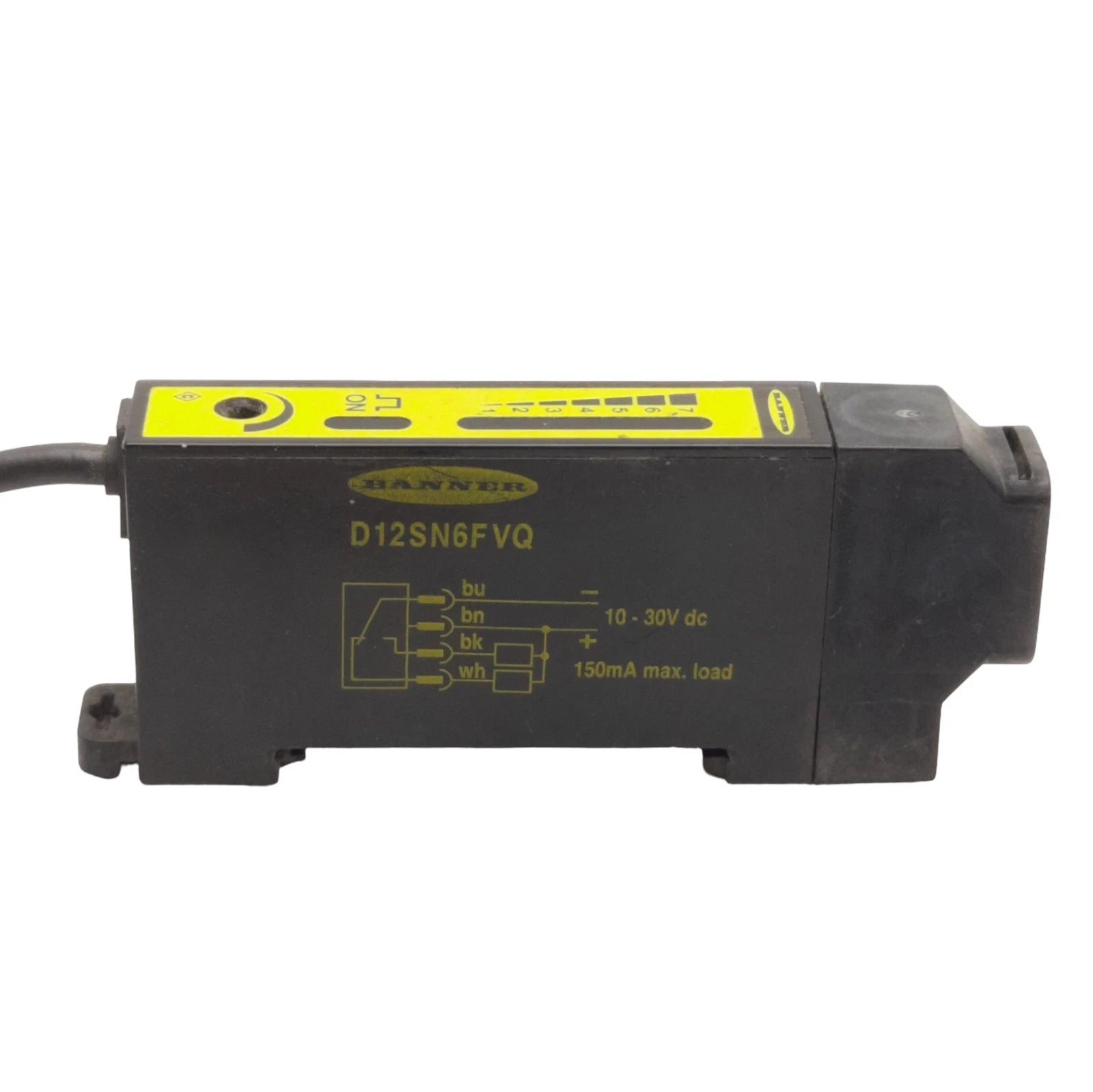

D12SN6FVQ | Banner Engineering D12 Glass Fiber Optic Amplifier, NPN Output
- Regular price
- $419.00
- Sale price
- $419.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D12SN6FVQ
Description
The Banner Engineering D12SN6FVQ is a D12 Series glass fiber optic amplifier designed for fast and reliable discrete sensing in industrial automation systems. Operating on a 10–30 VDC supply, this unit provides an NPN discrete output with rapid response for object counting and high-speed detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | D12SN6FVQ |
| Subcategory | Fiber Optic Amplifiers |
| Series | D12 Series |
| Product Type | Glass Fiber Optic Amplifier |
| Fiber Type Supported | Glass Fiber Only |
| Supply Voltage | 10–30 VDC |
| Output Type | Single Discrete |
| Output Configuration | NPN |
| Minimum Response Time | 0.5 ms |
| Repeatability | 130 µs |
| Delay at Power-Up | 100 ms |
| Connection Type | Pigtail Quick Disconnect |
| Quick Disconnect Type | M8 |
| Cable Length | 0.15 m (6 in) |
| Housing Style | DIN Rail |
| Housing Material | Thermoplastic |
| Indicator Type | Bargraph LED |
| IP Rating | IP11 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | Up to 90% RH at 50°C |
| Application | Object Counting |
| Weight | 0.13 lbs |
Information About D12SN6FVQ

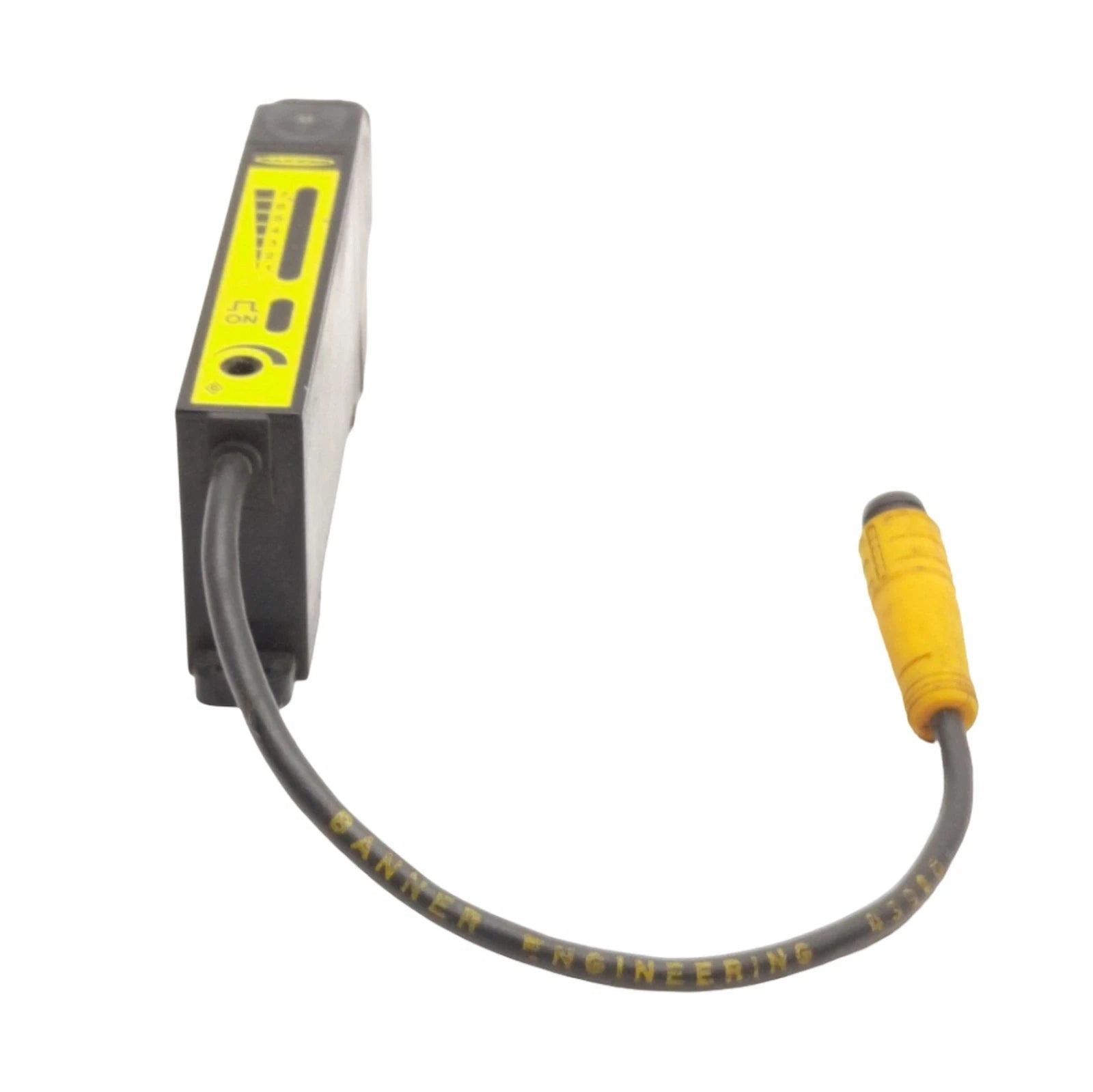

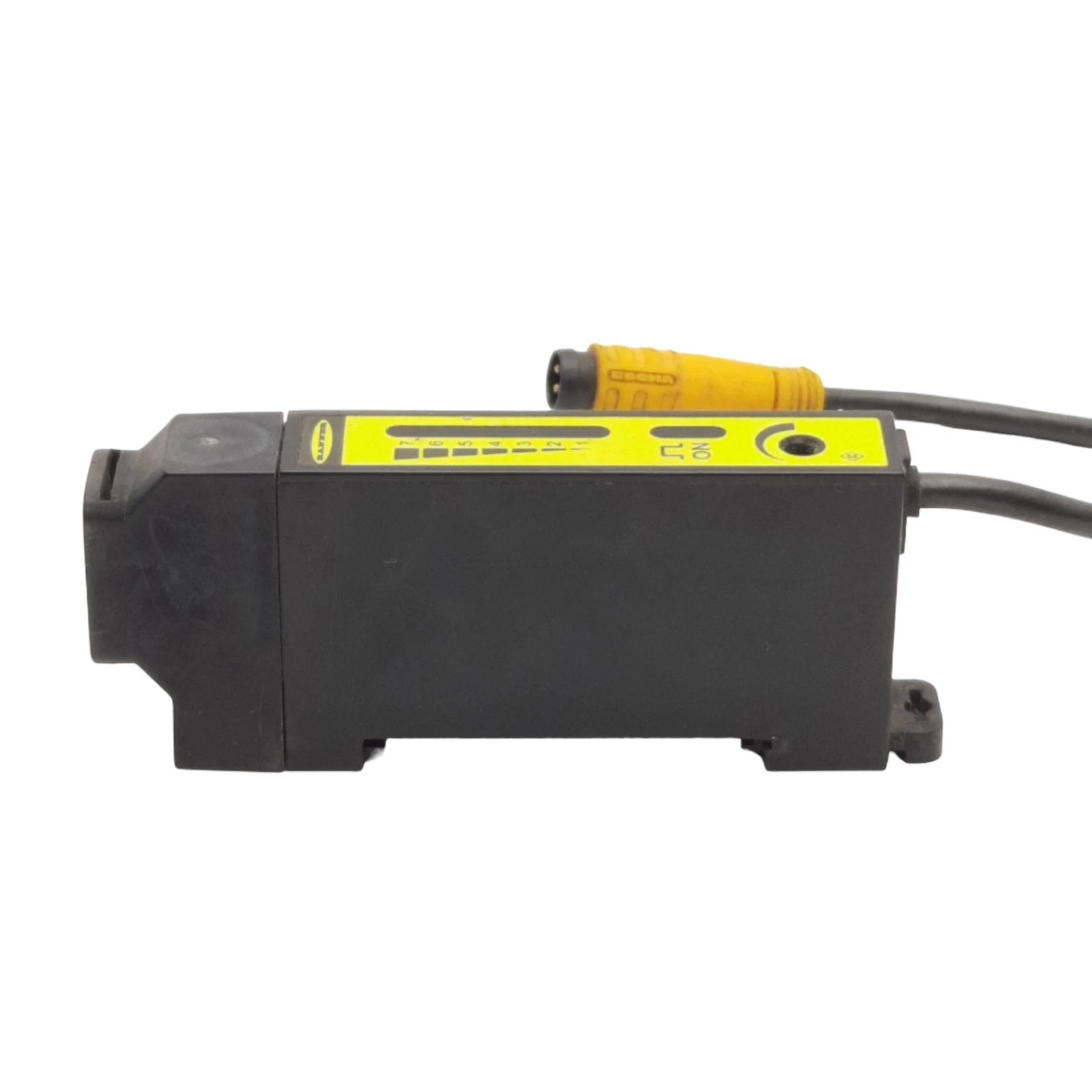

The D12SN6FVQ is part of Banner Engineering’s D12 Series fiber optic amplifiers, engineered specifically for use with glass fiber terminations. This amplifier features a compact DIN-rail-mount housing with an integrated bargraph LED indicator for clear signal and alignment feedback. It uses a pigtail quick-disconnect connection with an M8 interface, simplifying installation and maintenance. Designed for industrial control panels, it delivers consistent performance in environments requiring precise and repeatable sensing.
Key Features:
- Glass Fiber Optic Amplifier: Designed exclusively for use with glass fiber optic sensing elements.
- Discrete NPN Output: Provides a single NPN output suitable for PLC and control system inputs.
- High-Speed Response: Minimum response time of 0.5 ms supports fast object detection and counting.
- Bargraph LED Indicator: Displays signal strength and operating status for easy setup and diagnostics.
- DIN Rail Mount Housing: Enables clean and secure installation in control cabinets.

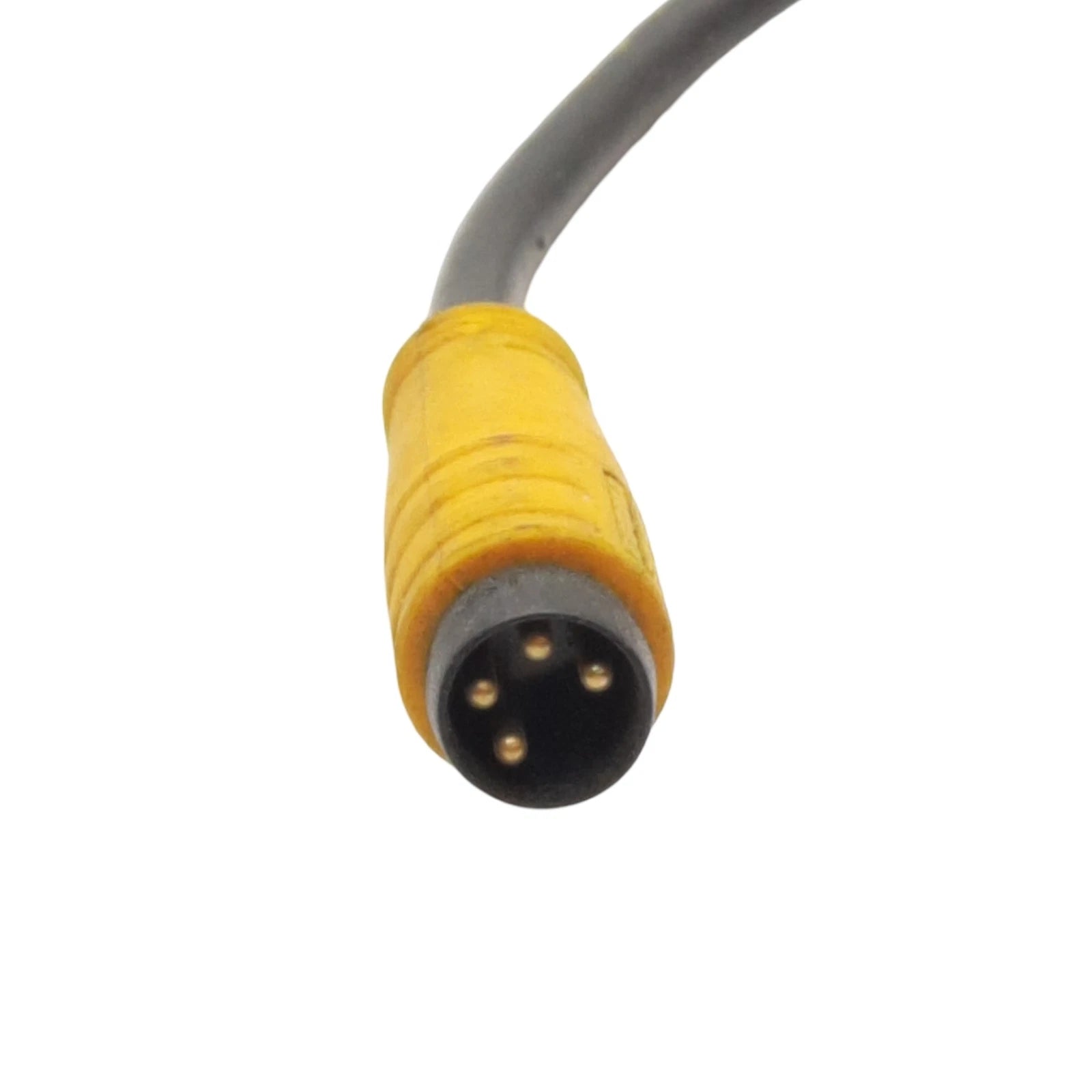

- Quick-Disconnect Interface: Features a pigtail with M8 quick-disconnect for simplified wiring.
- Object Counting Capability: Optimized for applications requiring accurate and repeatable detection.
The D12SN6FVQ delivers the reliability and precision required for glass fiber optic sensing and high-speed industrial automation applications.
