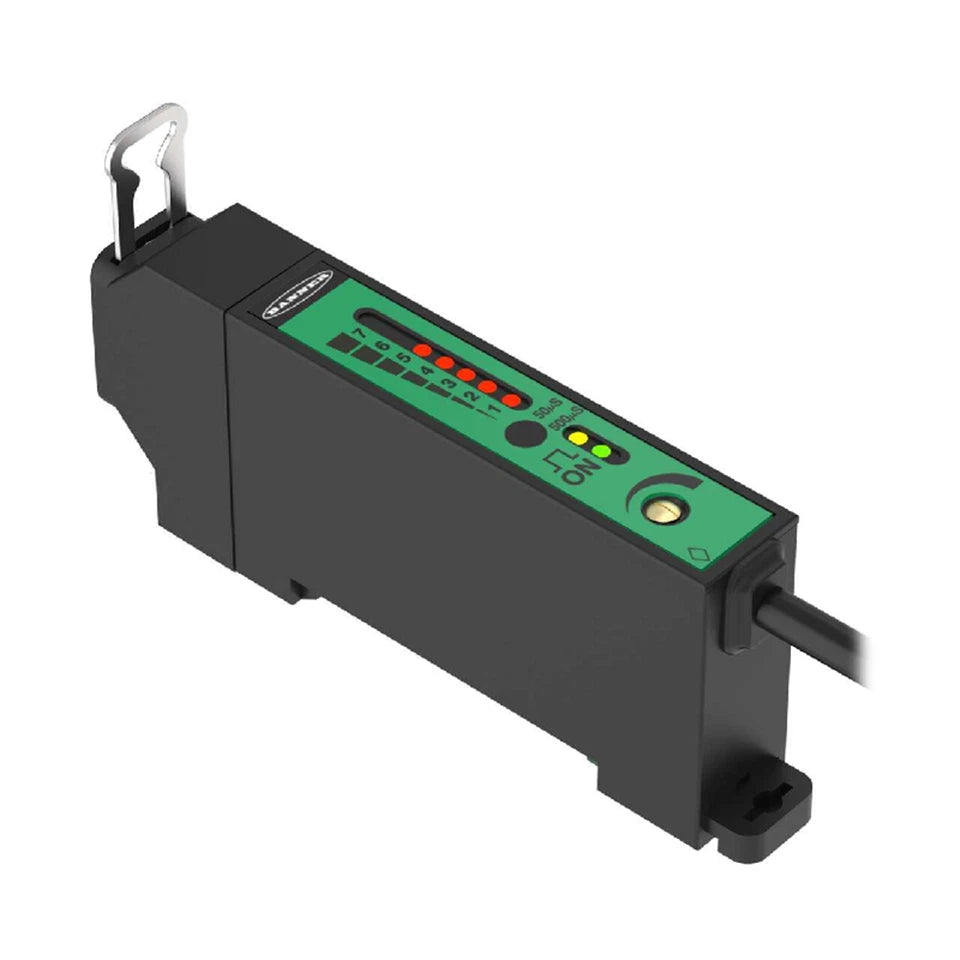

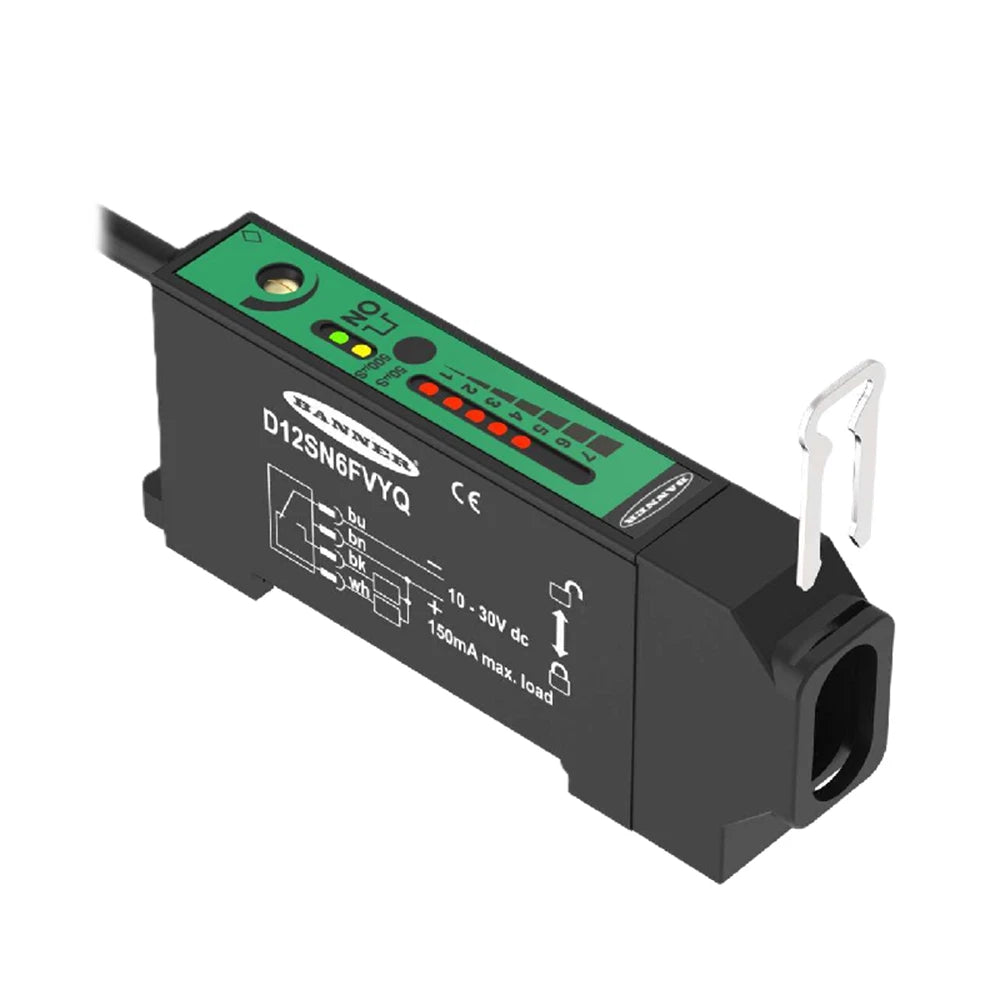

D12SN6FVYQ | Banner Engineering D12 Through-Beam Fiber Amplifier NPN
- Regular price
- $1,239.00
- Sale price
- $1,239.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D12SN6FVYQ
Description
The Banner Engineering D12SN6FVYQ is a DIN rail–mounted through-beam fiber optic amplifier with an NPN discrete output, designed for high-speed object detection in industrial automation systems. Operating on 10–30 VDC power, it provides rapid response and stable signal processing for precision sensing tasks. Its compact thermoplastic housing and M8 quick-disconnect connection support efficient panel integration in control cabinets.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | D12SN6FVYQ |
| Subcategory | Fiber Optic Amplifiers |
| Series | D12 Series |
| Sensing Method | Through-Beam |
| Output Configuration | NPN, Single Discrete |
| Supply Voltage | 10–30 V DC |
| Minimum Response Time | 0.05 ms |
| Typical Response Time | 500 µs |
| Repeatability | 15–130 µs |
| Light Source | Red LED (680 nm) |
| Fiber Compatibility | Glass Fiber Only |
| Connection Type | Connector |
| Quick Disconnect Type | M8, 4-Pin |
| Housing Style | DIN Rail Mount |
| Housing Material | Thermoplastic |
| Ingress Protection | IP11, NEMA 2 |
| Operating Temperature Range | -20°C to 70°C |
| Max Relative Humidity | 90% at 50°C |
| Delay at Power-Up | 100 ms |
| Adjustment Type | 15-Turn Potentiometer |
| Indicator Type | Bargraph LED |
| Cable Length | 0.15 m |
| Weight | Approx. 0.2 kg |
Information About D12SN6FVYQ
The D12SN6FVYQ is part of Banner Engineering’s D12 Series fiber optic amplifiers, engineered specifically for use with glass fiber terminations in through-beam sensing configurations. It features a rugged thermoplastic DIN rail housing with NEMA 4X construction, suitable for industrial control panel environments. The amplifier incorporates a 15-turn potentiometer for precise sensitivity adjustment, enabling accurate setup without remote teach functionality. With a 4-pin M8 connector interface and bargraph signal indicator, it allows straightforward wiring and visual alignment during installation and maintenance.
Key Features:
- Through-Beam Sensing Configuration: Designed for emitter/receiver fiber pairs to achieve reliable object detection.
- NPN Discrete Output: Provides a single NPN switching output compatible with PLC inputs.
- High-Speed Response: Minimum response time of 0.05 ms supports fast-moving production lines.
- Glass Fiber Compatibility: Accepts glass fiber terminations for durable, high-temperature applications.
- 15-Turn Potentiometer Adjustment: Enables precise manual sensitivity tuning.
- Bargraph Signal Indicator: Visual display assists with alignment and signal strength monitoring.
- Wide Voltage Range (10–30 VDC): Allows flexible integration into standard DC control systems.
- DIN Rail Mount Design: Compact form factor optimized for control cabinet installation.
The D12SN6FVYQ delivers the reliability and precision required for high-speed industrial fiber-optic sensing and object counting applications.
