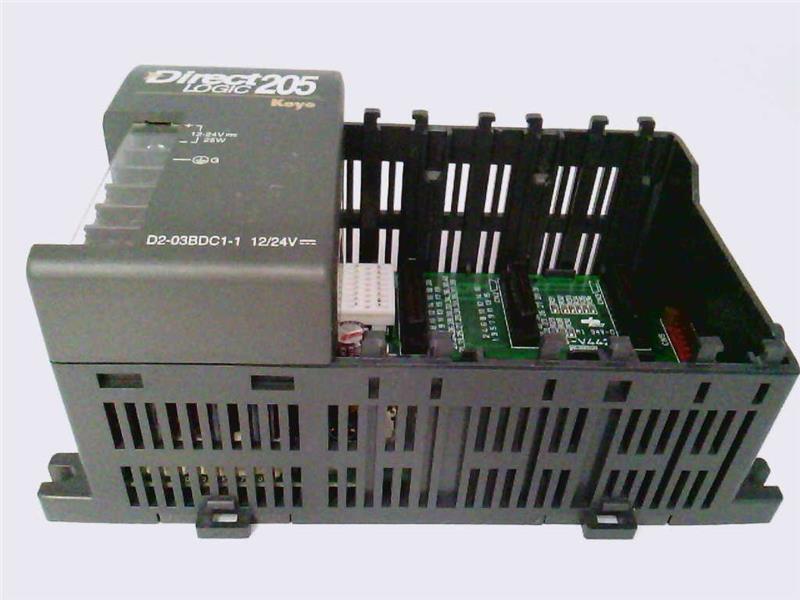

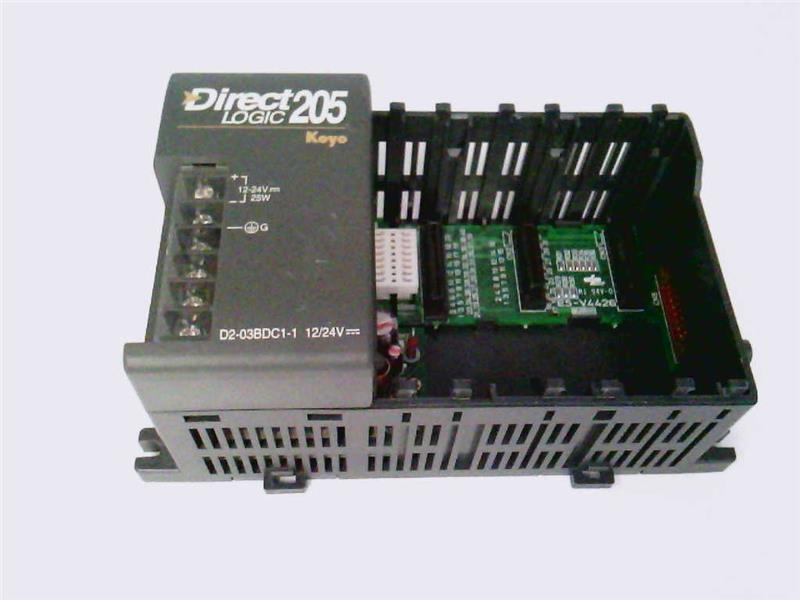

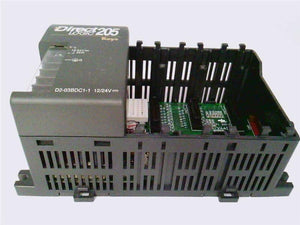

D2-03BDC1-1 | Automation Direct I/O Base w/Aux Output Power

Description

Technical Specifications

Information About D2-03BDC1-1

The D2-03BDC1-1 is a versatile I/O base module designed by Automation Direct for use in PLC (Programmable Logic Controller) systems, specifically within the PLCs/Machine Control category. As a part of the PLC Module/Rack subcategory, this module provides a robust foundation for expanding and integrating input/output operations, making it a critical component for various industrial automation tasks. The D2-03BDC1-1 is engineered to accommodate a range of control requirements, offering flexibility and reliability in a compact form factor.

Weighing just 1.00 lbs, the D2-03BDC1-1 is lightweight yet durable, ensuring ease of handling and installation. Its compact design allows it to be easily integrated into existing control systems, making it an ideal choice for both new installations and upgrades. The lightweight construction also facilitates easy transportation and handling, reducing the effort required during setup and maintenance.

This module features a three-slot configuration, providing space for up to three expansion modules or cards. The three-slot design allows users to customize their PLC systems based on specific needs, whether for additional input/output capacity, communication interfaces, or specialized control functions. The modularity of the D2-03BDC1-1 ensures that it can adapt to various applications, supporting scalable system architecture and enabling future expansions without requiring significant changes to the existing setup.

The D2-03BDC1-1 offers flexible mounting options, including both DIN rail and panel mount capabilities. The DIN rail mounting option allows for quick and secure installation within control cabinets, making it easy to integrate into standardized industrial setups. Panel mounting provides an alternative for applications where space constraints or specific mounting configurations require direct attachment to control panels or other surfaces. These mounting options enhance the versatility of the module, enabling it to be used in a wide range of industrial environments.

Powering the D2-03BDC1-1 requires an external 12-24 VDC power supply, which is a standard requirement in industrial control systems. The use of a 12-24 VDC power supply ensures compatibility with various industrial power sources, providing stable and reliable operation. The external power requirement also contributes to the module's safety and performance, as it allows the system to isolate the module from higher-voltage power sources, reducing the risk of electrical interference and enhancing overall system stability.

The D2-03BDC1-1 serves as an essential building block for creating flexible and powerful PLC-based control systems. Its ability to accommodate multiple expansion modules makes it a versatile choice for diverse automation tasks, from simple machine control to complex process automation. The module's design supports efficient wiring and connectivity, ensuring that signal integrity is maintained across the entire control system.

In summary, the D2-03BDC1-1 is a high-quality I/O base module from Automation Direct, designed to provide reliable and scalable input/output integration for PLC systems. With its three-slot configuration, flexible DIN rail or panel mounting options, and standard 12-24 VDC power requirement, this module offers a practical and adaptable solution for various industrial automation applications. Its lightweight and compact design, combined with robust performance characteristics, make the D2-03BDC1-1 an excellent choice for enhancing the functionality and flexibility of PLC-based control systems in manufacturing, processing, and other industrial environments.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
