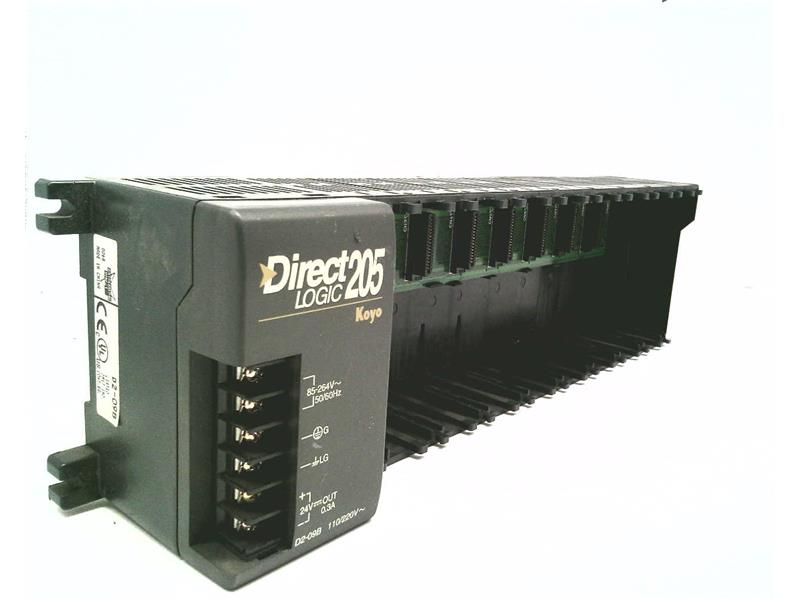

D2-09B | Automation Direct I/O Base DL205 DirectLOGIC 205
- Regular price
- $515.00
- Sale price
- $515.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D2-09B
Description
The D2-09B is an Automation Direct I/O Base designed for the DL205 DirectLOGIC 205 series. It accommodates up to nine I/O modules, offering a robust platform for expanding and integrating industrial automation systems. This base ensures reliable connectivity and supports flexible, scalable automation solutions.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | D2-09B |
| Subcategory | PLC Module/Rack |
| Series | DirectLOGIC 205 |
| Product Type | I/O Base Module |
| Number of Slots | 9 Slots |
| Compatible CPUs | Supports DL240, DL250, DL260 CPUs |
| Compatible I/O Modules | Supports all DL205 series I/O modules |
| Backplane Current Capacity | 1.0 A @ 5 VDC |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
Information About D2-09B
The Automation Direct D2-09B I/O Base Module is a key component within the DirectLOGIC 205 series, designed to provide a robust and flexible foundation for industrial automation systems. As a part of the PLCs and machine control category, this I/O base module is specifically engineered to accommodate a variety of CPUs and I/O modules, ensuring a versatile and scalable solution for complex control systems.
The D2-09B features 9 slots, offering ample space for the integration of different modules, making it a critical element for expanding system capabilities. This modular design allows users to configure their systems according to specific application requirements, supporting both current and future needs. The base module is compatible with a range of DL205 series CPUs, including the DL240, DL250, and DL260, ensuring that it can handle a variety of processing tasks with ease. This compatibility makes the D2-09B an ideal choice for both new installations and upgrades of existing systems, where different levels of processing power may be required.
In addition to supporting a variety of CPUs, the D2-09B is also compatible with all DL205 series I/O modules. This broad compatibility ensures that users can integrate a wide range of input and output modules, from simple digital I/O to more complex analog and specialty modules. This flexibility is crucial for tailoring the system to meet specific control and monitoring needs, whether in manufacturing, process control, or other industrial environments.
The backplane of the D2-09B has a current capacity of 1.0 A at 5 VDC, providing sufficient power to support the connected modules without the need for external power sources. This integrated power distribution simplifies system design and reduces the need for additional components, making the overall setup more streamlined and efficient.
Designed for use in industrial environments, the D2-09B operates within a temperature range of 0°C to 60°C (32°F to 140°F). This wide operating temperature range ensures reliable performance in a variety of conditions, from standard room temperatures to more challenging environments where temperature fluctuations may occur. Additionally, the module can be stored in temperatures ranging from -20°C to 70°C (-4°F to 158°F), providing durability and protection during transport or periods of inactivity.
The D2-09B also boasts a humidity range of 5% to 95% non-condensing, which further enhances its suitability for use in environments with varying moisture levels. This feature ensures that the module can perform reliably in both dry and humid conditions, making it a dependable choice for installation in control cabinets and other industrial settings.
With its robust construction and wide compatibility, the D2-09B I/O Base Module is designed to meet the demands of modern automation systems. Its ability to support a variety of CPUs and I/O modules allows for the creation of customized control solutions tailored to specific application needs. Whether used in a small-scale system or as part of a larger, more complex setup, the D2-09B provides the necessary infrastructure to ensure seamless operation and integration of all system components.
The D2-09B is also designed with ease of installation and maintenance in mind. The modular nature of the base allows for quick and simple addition or replacement of modules, minimizing downtime and ensuring that the system can be easily adapted to changing requirements. This feature is particularly valuable in dynamic industrial environments where system flexibility and responsiveness are critical.
In conclusion, the Automation Direct D2-09B I/O Base Module is a versatile and reliable foundation for building and expanding DirectLOGIC 205 series control systems. Its 9-slot capacity, broad compatibility with CPUs and I/O modules, and robust operating specifications make it an ideal choice for a wide range of industrial applications. Whether for new installations or upgrades, the D2-09B provides the flexibility, power, and reliability needed to create efficient and effective automation solutions.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
