D2-09BDC-1 | Automation Direct I/O Base

Description

Technical Specifications

Information About D2-09BDC-1

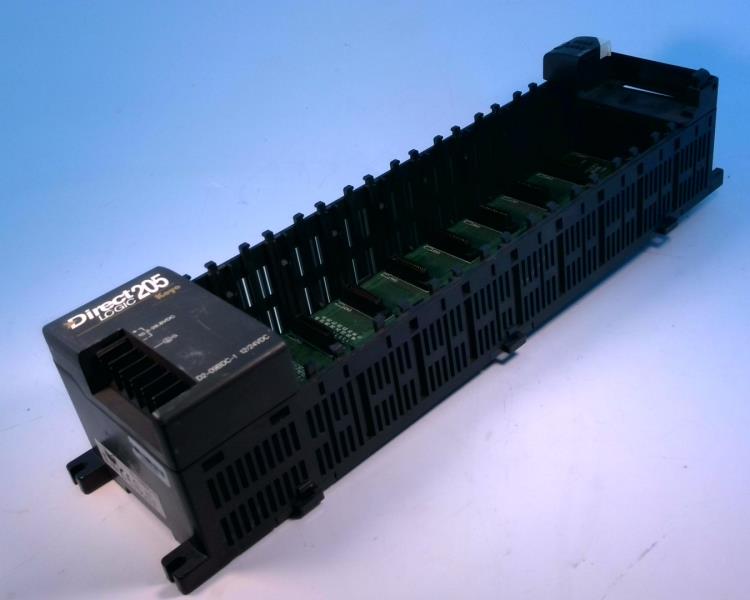

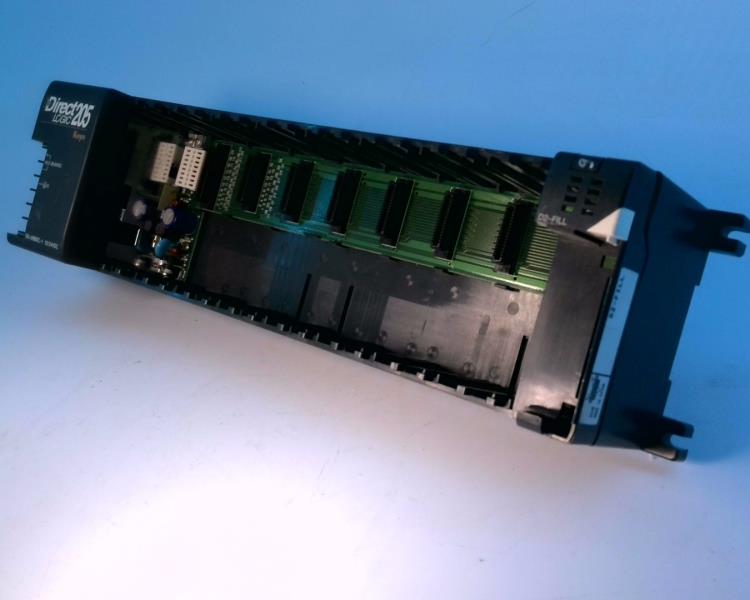

The D2-09BDC-1 is an I/O base unit designed for use within Automation Direct’s DirectLogic 205 series of programmable logic controllers (PLCs). This base unit provides the essential foundation for expanding a PLC system's input and output capabilities, supporting up to nine individual I/O modules. As a key component in industrial automation and machine control applications, the D2-09BDC-1 facilitates the integration of various control and monitoring functions into a cohesive system, allowing for scalable and flexible automation solutions.

Designed to accommodate nine module slots, the D2-09BDC-1 allows users to configure their PLC systems with a range of I/O modules tailored to specific application requirements. This flexibility makes it possible to expand and customize the control capabilities of a system, whether for analog inputs, digital outputs, communication interfaces, or specialized function modules. By supporting a variety of modules, the D2-09BDC-1 ensures that the DirectLogic 205 series can meet the diverse needs of modern industrial environments, from simple process control to complex automation tasks.

The D2-09BDC-1 operates on a 24 VDC input power type, making it compatible with standard industrial power supplies. This power configuration is widely used in industrial settings, providing reliable and stable power to the base unit and its installed modules. The use of 24 VDC input also enhances safety, as it is a low-voltage system that minimizes the risk of electrical hazards. This power configuration aligns with the safety standards typically required in industrial automation, ensuring that the D2-09BDC-1 can be safely integrated into various control systems.

With a dielectric voltage withstand rating of one minute at 1500 VAC, the D2-09BDC-1 offers robust electrical insulation, protecting the internal circuitry and connected modules from voltage spikes and potential electrical faults. This high level of dielectric strength is critical for maintaining the integrity of the control system, especially in environments where electrical interference or transient voltages are a concern. The insulation capability helps to prevent damage to the base unit and its modules, reducing the likelihood of downtime and maintenance costs due to electrical issues.

The D2-09BDC-1 is engineered with dimensions of 14.09" x 13.74" x 13.14" x 14.56", making it compact enough for installation within standard control panels and enclosures. Despite its compact size, the base unit is capable of supporting a significant number of modules, providing extensive functionality without requiring excessive space. This space-efficient design allows for easy integration into existing systems and supports the optimization of control cabinet layouts. The unit's weight of 18.3 ounces further contributes to its ease of handling and installation, making it suitable for use in a wide range of industrial applications.

While the D2-09BDC-1 does not feature an auxiliary 24 VDC output, it is designed to manage up to 10 A of maximum inrush current. This capability ensures that the base unit can handle the initial surge of current that occurs when modules are first powered on, providing stability and reliability during the start-up phase. The ability to manage inrush current is essential for protecting both the base unit and its connected modules from potential damage, contributing to the overall longevity and reliability of the PLC system.

The D2-09BDC-1 is part of Automation Direct’s DirectLogic 205 series, a well-regarded line of PLCs known for their versatility, reliability, and ease of use. The DirectLogic 205 series is widely used in various industries, including manufacturing, process control, material handling, and more. The inclusion of the D2-09BDC-1 in this series reflects Automation Direct’s commitment to providing high-quality, scalable solutions that meet the evolving needs of industrial automation. By offering a reliable I/O base unit that supports multiple modules, the D2-09BDC-1 plays a critical role in enabling efficient and effective control system configurations.

Installation of the D2-09BDC-1 is straightforward, thanks to its standard mounting options and clear labeling. The base unit is designed to facilitate quick and easy module insertion, with secure connections that ensure stable operation. This user-friendly design reduces the time required for setup and maintenance, allowing technicians to quickly expand or reconfigure the PLC system as needed. The modular approach provided by the D2-09BDC-1 enhances the adaptability of the control system, making it easier to implement changes or upgrades in response to shifting operational requirements.

In summary, the D2-09BDC-1 I/O base unit is a fundamental component of the DirectLogic 205 series, offering robust and flexible support for expanding the I/O capabilities of PLC systems. With its nine module slots, compact design, 24 VDC input power, and high dielectric strength, the D2-09BDC-1 is well-suited for a wide range of industrial applications. Its ability to handle substantial inrush current, coupled with its straightforward installation and configuration, makes it a reliable and efficient choice for building scalable and effective control systems. Whether used in small-scale automation projects or large industrial operations, the D2-09BDC-1 provides the necessary foundation for achieving reliable and adaptable machine control solutions.
