D2-12TR | Automation Direct 6-24VDc Relay Output Module
- Regular price
- $215.00
- Sale price
- $215.00
- Regular price
-
Do you need help?

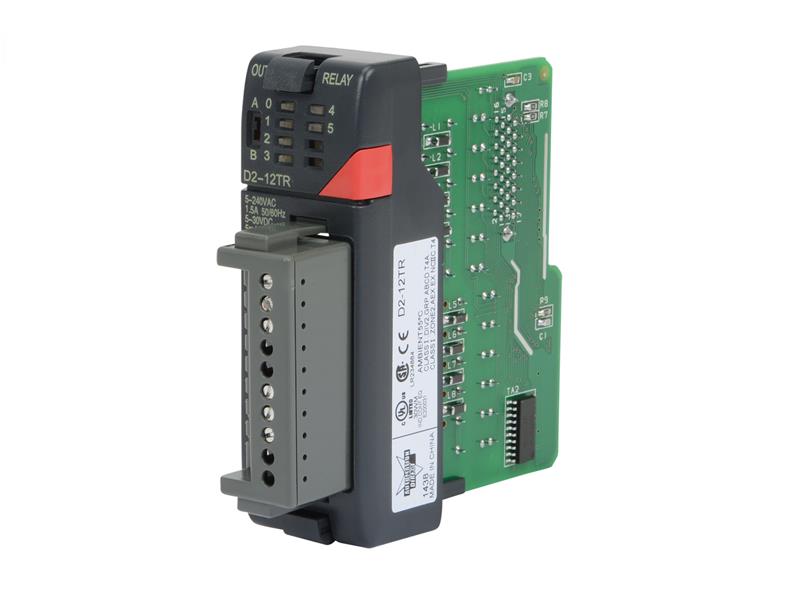

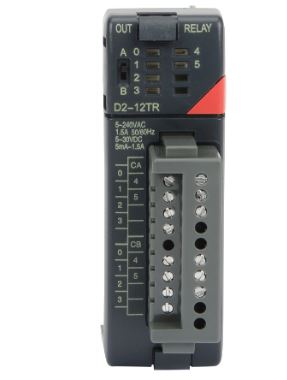

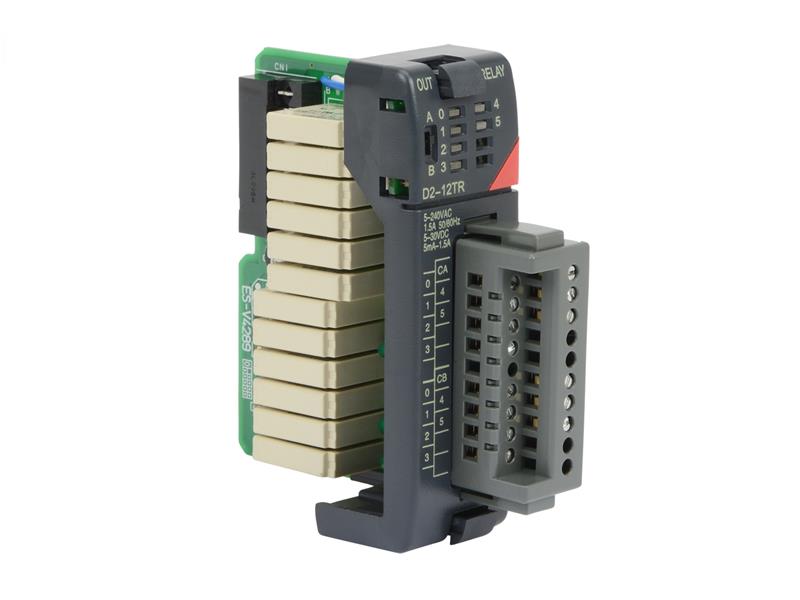

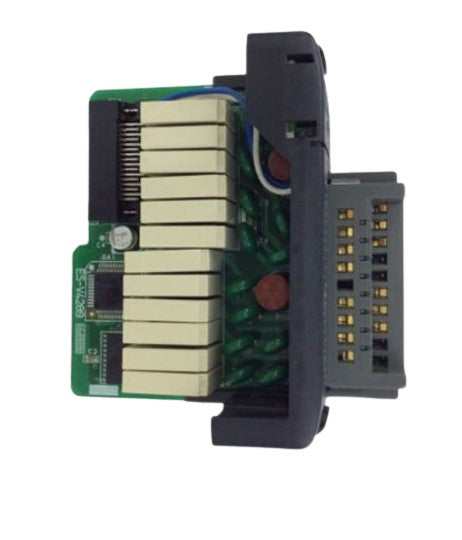

Product Description P/N: D2-12TR
Description
Technical Specifications
Part # |
D2-12TR |
Category |
PLCs/Machine Control |
Subcategory |
VDC Logic I/O Module |
Weight |
0.26 lbs |
Relay Configuration |
(12) Form A (SPST) Relays |
Load Current (Per Point) |
1.5A/POINT MAX |
Outputs |
12-POINT |
Commons |
2 |
Load Current (Per Common) |
3A/COMMON |
Number of Points per Common |
6 POINTS PER COMMON |
Output Voltage |
6-24 VDC/6-240 VAC |
Product Type |
Relay Output Module |
Terminal Type |
Removable Terminal Block |
Information About D2-12TR
The D2-12TR is a Relay Output Module designed for use in PLCs and machine control systems, categorized under VDC Logic I/O Modules. Manufactured to facilitate efficient and reliable signal switching and control, this module offers flexibility and robustness for various industrial automation applications. Weighing only 0.26 lbs, the D2-12TR is compact and lightweight, making it suitable for installation in a wide range of control panels and enclosures where space and weight are considerations.
The D2-12TR features a relay configuration consisting of 12 Form A (SPST) relays, which are single-pole, single-throw relays. This configuration allows the module to provide reliable switching capabilities, making it ideal for controlling a variety of external devices such as lights, motors, and other actuators. Each of these relays is designed to handle a maximum load current of 1.5A per point, ensuring that the module can manage sufficient current for typical industrial control tasks. This current rating is suitable for a broad range of applications, providing the necessary capacity to drive many standard industrial loads.
The module supports a total of 12 output points, which are divided into two commons. Each common supports six output points, allowing the D2-12TR to efficiently manage the distribution of power and control signals across multiple devices. The use of two commons enhances the module's versatility and allows for more organized wiring and signal distribution. Each common is capable of handling a maximum load current of 3A, which provides robust performance in applications that require multiple output points to operate simultaneously.
The D2-12TR is capable of handling a wide range of output voltages, supporting both DC and AC loads. The output voltage range is specified at 6-24 VDC and 6-240 VAC, which allows the module to interface with various types of devices and systems. This broad voltage compatibility makes the D2-12TR suitable for numerous applications, including those requiring different voltage levels for different components. The module's ability to handle both AC and DC loads provides additional flexibility, making it a versatile choice for complex automation tasks.
A key feature of the D2-12TR is its use of a removable terminal block for connections. This design facilitates easy installation, maintenance, and replacement. The removable terminal block allows for quick and straightforward wiring, making it easier to connect and disconnect the module without the need for extensive rewiring. This feature is particularly beneficial in systems where modules may need to be replaced or serviced regularly, as it reduces downtime and simplifies maintenance procedures.
The D2-12TR's compact size and efficient design make it ideal for use in various industrial environments. Its robust construction ensures reliable performance in challenging conditions, including those with exposure to vibration, electrical noise, and temperature variations. The module's ability to handle up to 3A per common and 1.5A per point means it can manage substantial loads, supporting the operational requirements of complex control systems.
As a relay output module, the D2-12TR plays a critical role in the overall functionality of PLCs and machine control systems. It provides the necessary interface for controlling external devices, enabling automated processes to operate smoothly and efficiently. The module's design and specifications ensure that it can perform these tasks reliably, supporting the stability and efficiency of the entire control system.
In summary, the D2-12TR Relay Output Module is a versatile and reliable component designed for use in industrial automation systems. Its 12 Form A relays, divided into two commons, provide robust switching capabilities, while its support for a wide range of output voltages enhances its adaptability. The use of a removable terminal block simplifies installation and maintenance, making it a practical choice for various applications. Whether used in manufacturing, process control, or other automation tasks, the D2-12TR ensures reliable operation and efficient control of external devices, contributing to the overall effectiveness and reliability of the automation system.
