D2-16NA | Automation Direct Discrete Input Module

Description

The D2-16NA Discrete AC Input Module is a part of Automation Direct's Facts Engineering Koyo PLC Direct DL205 series.

Technical Specifications

Information About D2-16NA

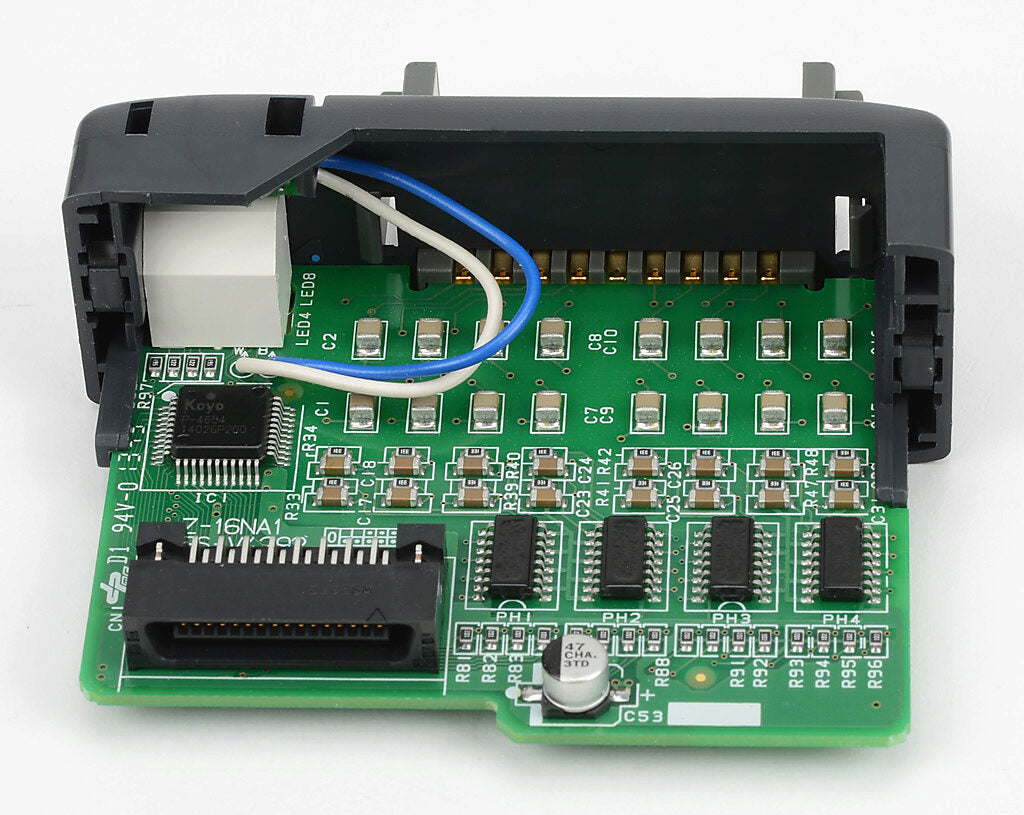

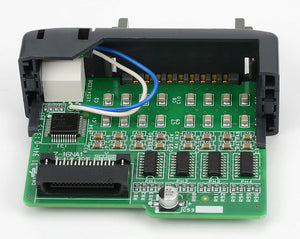

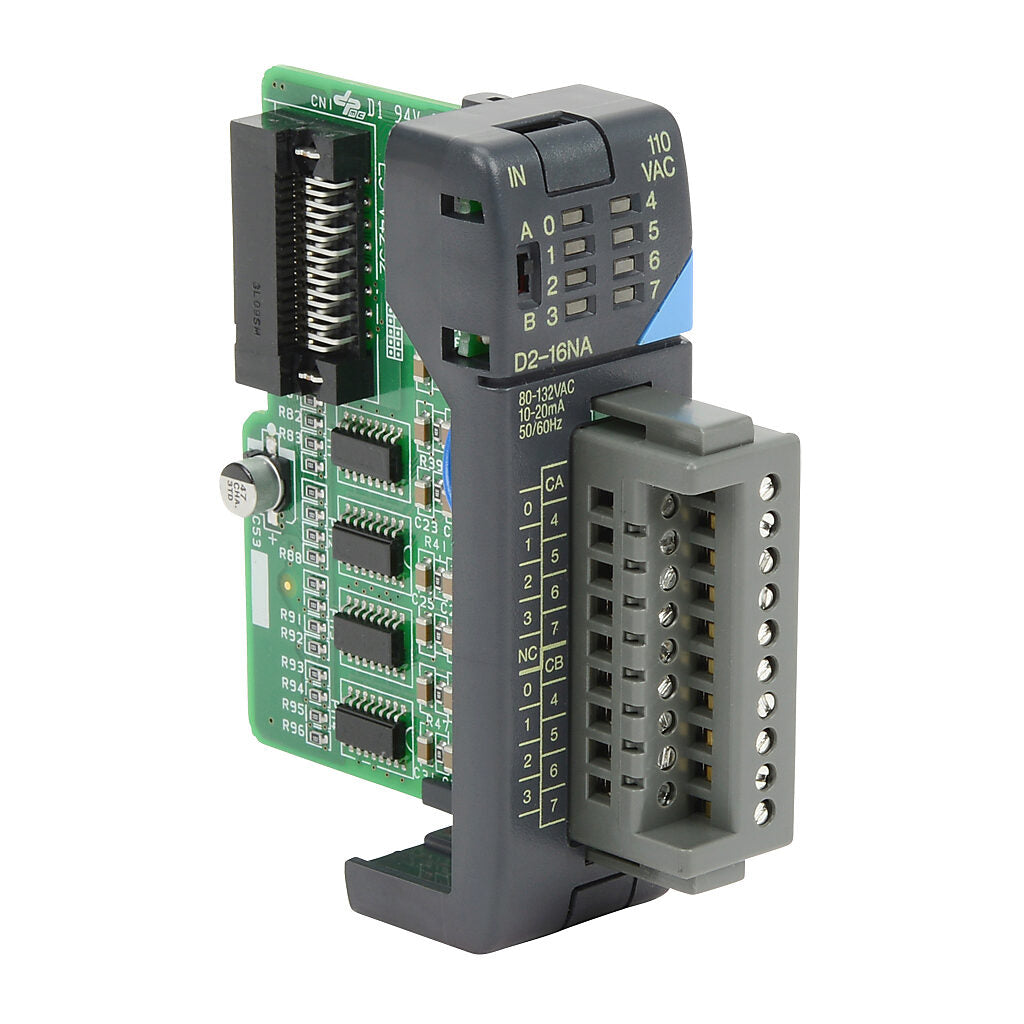

The Automation Direct D2-16NA is a robust and reliable input module designed for use within PLC and machine control systems, specifically tailored for the DL205 series. This discrete input module is a vital component in industrial automation, providing precise and dependable input processing for various control applications. With its ability to manage multiple input points efficiently, the D2-16NA is essential for industries that require accurate data acquisition and control in complex systems.

Categorized under PLCs/Machine Control and further classified as a PLC Module/Rack, the D2-16NA is designed to seamlessly integrate with other components in the DL205 series. It features 16 discrete input points, allowing it to handle a substantial number of input signals from various devices, such as sensors, switches, and other control elements. This capability is crucial for applications that demand the simultaneous monitoring of multiple inputs, ensuring that the system can respond quickly and accurately to changes in the operational environment.

The module operates at a nominal input voltage of 120 VAC, making it compatible with standard industrial power supplies. This voltage compatibility ensures that the D2-16NA can be easily incorporated into existing systems without the need for extensive modifications or additional power conditioning equipment. The module’s design includes two isolated input commons, each capable of managing 8 input points, providing flexibility in system design and enhancing the overall reliability of the control system by minimizing potential interference between inputs.

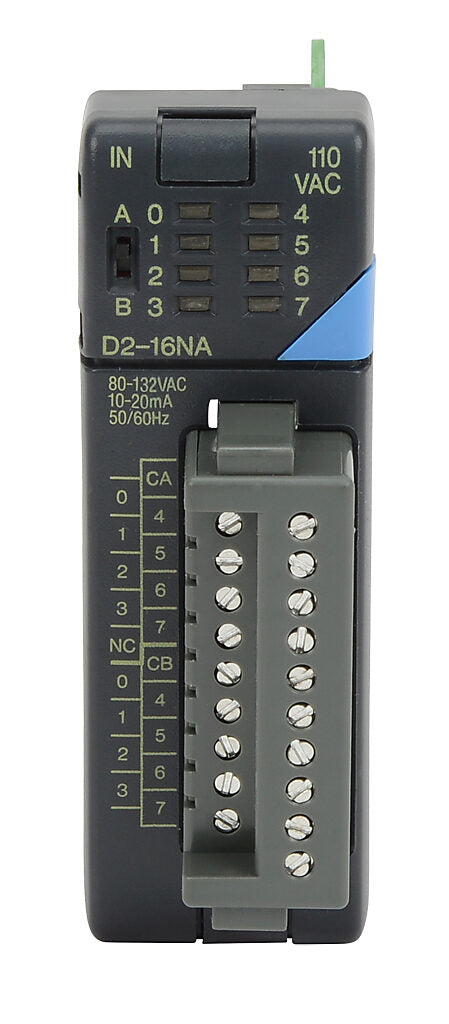

One of the key features of the D2-16NA is its inclusion of a removable terminal block. This design feature significantly simplifies the installation and maintenance process, allowing technicians to quickly and easily connect or disconnect the module from the system without the need for complex wiring adjustments. The removable terminal block also facilitates the replacement of the module, reducing downtime and ensuring that the system remains operational with minimal disruption.

The D2-16NA is programmed using DirectSOFT programming software, version 4.0 or later. This software provides a user-friendly interface for configuring and managing the module, enabling operators to customize the input settings to meet specific application requirements. DirectSOFT’s advanced programming capabilities allow for the creation of complex control logic, ensuring that the D2-16NA can be tailored to the unique demands of each industrial application.

Although the D2-16NA does not feature fast response capabilities, it is designed to provide reliable and consistent performance in standard input processing tasks. Its focus on stability and dependability makes it ideal for applications where rapid input response is not critical but where accurate and consistent data acquisition is essential for maintaining system integrity.

Overall, the Automation Direct D2-16NA input module is a highly effective solution for managing discrete inputs in industrial automation systems. Its 16 input points, 120 VAC compatibility, isolated input commons, and user-friendly design make it a versatile and dependable component for a wide range of PLC and machine control applications. Whether used in new installations or as part of an upgrade to existing systems, the D2-16NA is engineered to deliver reliable, high-quality performance, ensuring the efficient operation of your industrial processes.
