D2-16TD2-2 | Automation Direct Output Module

Description

Technical Specifications

Information About D2-16TD2-2

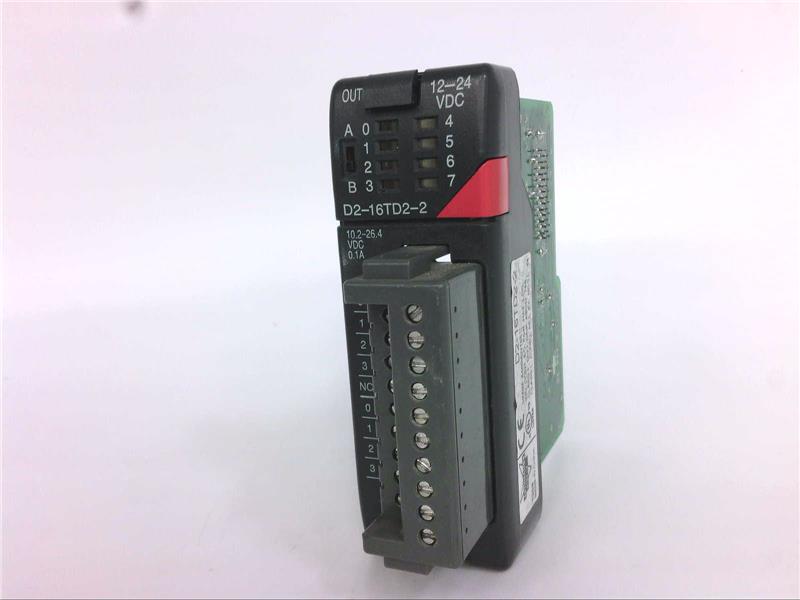

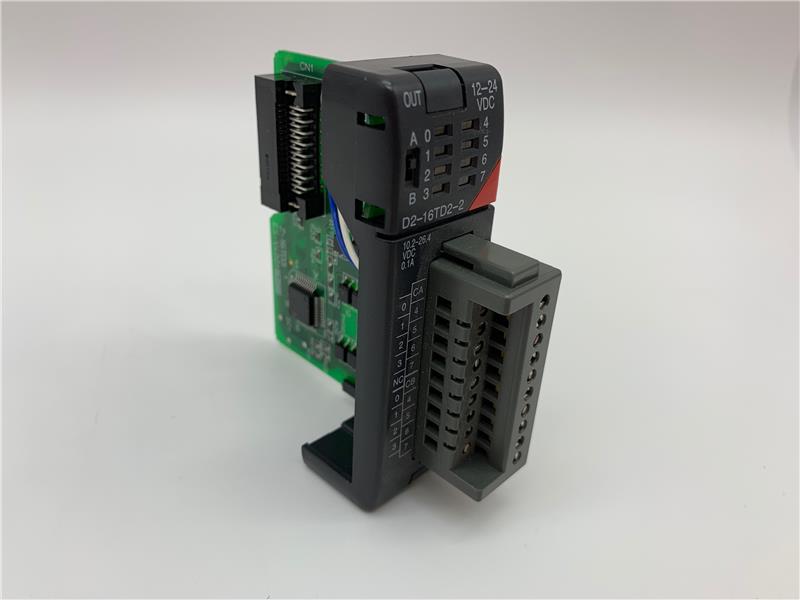

The D2-16TD2-2 is a discrete output module from the DirectLOGIC brand, specifically designed for integration into PLCs and machine control systems. This module, categorized under the VDC Logic I/O Module subcategory, is part of the DL205 series and is engineered to provide reliable and efficient control within industrial automation applications. Weighing 0.15 lbs, the D2-16TD2-2 is a compact and lightweight component that offers high performance in a small form factor, making it ideal for use in space-constrained environments.

The D2-16TD2-2 output module features 16 discrete output points, each capable of handling a nominal output voltage of 12-24 VDC. This voltage range makes the module suitable for a wide variety of control tasks in industrial settings, where precise and reliable voltage control is required. The discrete output type is sourcing, which means that the module sources current to the load, providing a positive voltage to the connected devices. This sourcing configuration is commonly used in industrial automation for driving various loads such as relays, solenoids, and other actuators.

One of the key design features of the D2-16TD2-2 is its ability to support multiple isolated output commons. The module is equipped with two isolated output commons, allowing for the segmentation of outputs into separate groups. This configuration enhances the flexibility of the module, enabling it to manage different types of loads or control circuits within the same system. Each isolated output common can handle eight output points, providing a total of 16 points across the module. This segmentation is particularly useful in complex control systems where different sections of the system may require isolated control or where different voltage levels are used.

The D2-16TD2-2 is designed to handle a load current of 0.1A per point, with a total module capacity of 1.6A. This current rating ensures that the module can drive multiple loads simultaneously without exceeding its operational limits, making it suitable for a wide range of industrial control applications. The module’s ability to handle a moderate current load while maintaining reliable performance is a testament to its robust design and engineering.

For added protection, the D2-16TD2-2 requires the use of a user-supplied external fuse. This fuse type provides overcurrent protection, safeguarding the module and the connected devices from potential damage caused by electrical faults. The use of an external fuse allows for easy replacement and customization based on the specific requirements of the application, ensuring that the module can be tailored to meet the needs of various industrial environments.

The module also includes a removable terminal block, which simplifies the process of wiring and installation. The removable terminal block allows for quick and easy connection or disconnection of the module without the need to rewire the entire system. This feature is particularly valuable in maintenance and troubleshooting scenarios, where minimizing downtime is critical. The terminal block is designed to ensure secure and reliable connections, reducing the risk of loose or faulty wiring that could compromise the performance of the control system.

As part of the DirectLOGIC DL205 series, the D2-16TD2-2 output module is built to integrate seamlessly with other components in the series, providing a cohesive and reliable control solution for industrial automation. The DL205 series is known for its versatility and reliability, making it a popular choice for a wide range of automation tasks. The D2-16TD2-2 output module contributes to this reputation by offering precise control and robust performance in a compact and easy-to-install package.

Overall, the D2-16TD2-2 discrete output module is a high-quality component designed for demanding industrial environments. Its combination of 16 output points, sourcing configuration, isolated commons, and user-friendly features such as the removable terminal block make it an excellent choice for automation professionals seeking reliable and efficient control solutions. Whether used in manufacturing, process control, or other industrial applications, the D2-16TD2-2 provides the performance and reliability needed to maintain efficient and effective control of automated systems.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
