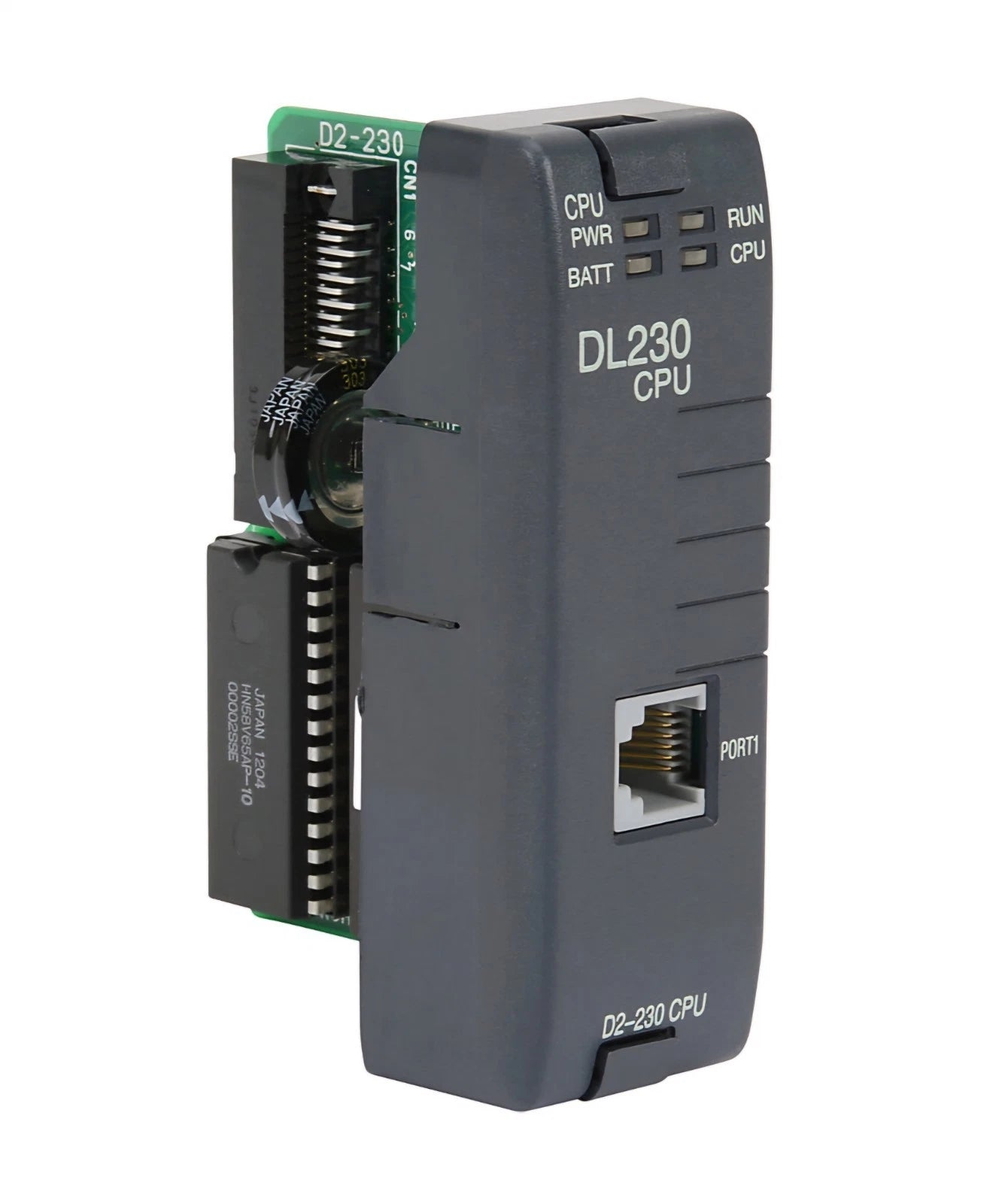

D2-230 | AutomationDirect DirectLogic 205 CPU Module, 2.4K Memory, RS-232 Port
- Regular price
- $269.00
- Sale price
- $269.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D2-230
Description
The AutomationDirect D2-230 is a compact CPU module designed for the DirectLogic 205 PLC platform, providing essential logic processing and memory capacity for small to medium automation tasks. It offers 2.4K total memory, integrated RS-232 communications, and stable performance for basic control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AutomationDirect |
| Category | PLCs/Machine Control |
| Part Number | D2-230 |
| Subcategory | PLC Module/Rack |
| CPU Type | DL230 CPU module |
| Total Memory | 2.4 K words |
| EEPROM Memory | 2048 words |
| V-Memory | 256 words |
| Local I/O Capacity | 256 points |
| Instruction Set | Basic Boolean + integer math |
| Typical Scan Time | 4–6 ms per 1K Boolean instructions |
| Built-In Ports | RS-232 Port 1 |
| Programming Software | DirectSOFT required |
| Indicators | RUN, BATT, CPU, PWR LEDs |
| Battery Backup | Supported (battery not included) |
| Installation | DL205 rack mounting |
| Operating Use | Logic processing for industrial control |
| Product Status | Discontinued by manufacturer |
| Weight | 0.15 lbs |
Information About D2-230
The D2-230 belongs to the DirectLogic 205 series manufactured by AutomationDirect and originally engineered by Koyo/Facts Engineering. This CPU provides 2.0K EEPROM ladder memory and V-memory storage for system data and application variables. With a simple instruction set supporting Boolean operations and basic integer math, the module suits entry-level automation systems requiring dependable core logic handling. As a discontinued unit, it serves primarily as a replacement CPU for legacy installations still operating on the DL205 platform.
Key Features:
- Compact PLC CPU: Designed for DirectLogic 205 racks with minimal footprint.
- 2.4K Total Memory Capacity: Supports small-scale ladder logic applications.
- 2048 EEPROM Ladder Memory: Retains program data without power.
- Integrated V-Memory: Includes 256 words for user variables and stored values.
- RS-232 Communications Port: Built-in Port 1 for DirectSOFT programming and operator interface.
- Basic Instruction Set: Handles Boolean logic, timers, counters, and simple integer arithmetic.
- 256 Local I/O Point Support: Suitable for small to mid-range automation systems.
- 4–6 ms Scan Time: Provides efficient execution for 1K Boolean logic instructions.
- LED Status Indicators: RUN, BATT, CPU, and PWR LEDs for quick diagnostics.
- Battery-Backed Operation: Supports optional battery for memory retention (battery not included).
The D2-230 delivers the reliability and precision required for maintaining or upgrading DirectLogic 205 PLC systems.
