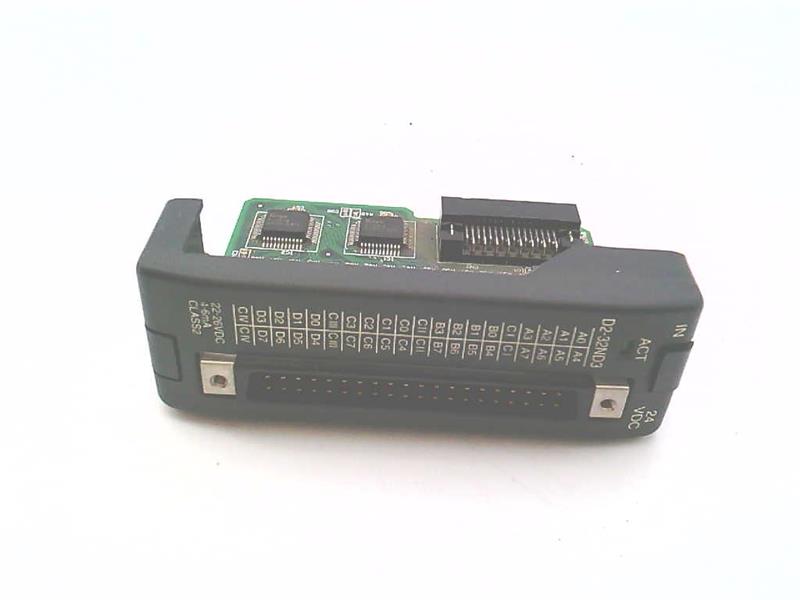

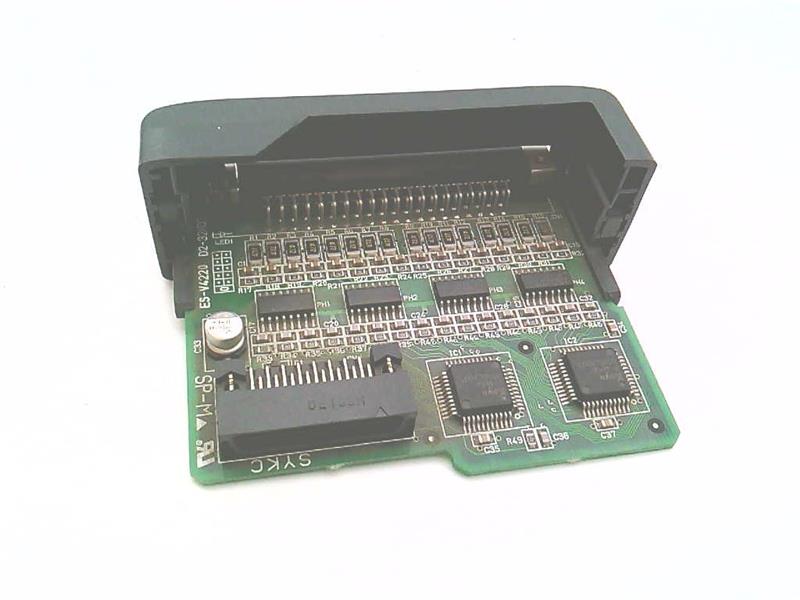

D2-32ND3 | Automation Direct 24VDC Discrete Input Module
- Regular price
- $112.00
- Sale price
- $112.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D2-32ND3
Description
The Automation Direct D2-32ND3 is a 24VDC Discrete Input Module offering 32 input channels for precise signal detection in industrial automation systems. It ensures accurate monitoring and control by reliably processing discrete signals, making it ideal for managing complex automation tasks with efficiency and consistency.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | D2-32ND3 |
| Subcategory | VDC Logic I/O Module |
| Item | Input module |
| I/O Module Type | Discrete |
| Series | DL205 |
| Number of Input Points | 32 |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Fast Response | No |
| Number of Isolated Input Commons | 4 |
| Number of Points per Common | 8 |
| Programming Software | DirectSOFT programming software v4.0 or later |
Information About D2-32ND3
The Automation Direct D2-32ND3 is a 24VDC discrete input module designed for integration within PLC systems, specifically within the DL205 series. This module is engineered to provide reliable and efficient data acquisition for industrial automation, enabling precise monitoring and control of various input signals within a machine control environment. The D2-32ND3 is ideal for applications that require high-density input capabilities combined with flexibility in handling both sinking and sourcing input types.
The D2-32ND3 features 32 discrete input points, making it well-suited for complex automation tasks where multiple input signals must be processed simultaneously. Each input point is designed to handle a nominal input voltage of 24 VDC, a standard voltage level that ensures compatibility with a wide range of industrial sensors and switches. The module's discrete input type supports both sinking and sourcing configurations, providing versatility in how input devices are connected and allowing for seamless integration with various types of field devices.
A key aspect of the D2-32ND3 is its design, which includes four isolated input commons, each of which can support up to eight input points. This isolation is critical in preventing electrical noise and ground loops from affecting the accuracy and reliability of the input signals. By isolating these commons, the module ensures that each group of inputs can operate independently, reducing the risk of cross-interference and enhancing the overall stability of the system.
Despite its high input density, the D2-32ND3 does not include fast response capabilities, making it better suited for applications where standard response times are sufficient. This characteristic makes it ideal for tasks such as monitoring the status of switches, sensors, and other discrete devices where rapid signal processing is not required. The absence of fast response functionality also contributes to the module's robustness and reliability in handling routine monitoring tasks within industrial control systems.
The D2-32ND3 is designed to work seamlessly with Automation Direct's DirectSOFT programming software, version 4.0 or later. This integration allows users to easily configure and program the module within a broader PLC system, streamlining the setup process and ensuring that the module can be quickly adapted to specific application requirements. DirectSOFT provides a user-friendly interface for defining input logic, mapping input points, and integrating the module's functionality into larger control schemes.
From a physical perspective, the D2-32ND3 is built to fit within the compact form factor of the DL205 series, allowing for efficient use of space within control panels and enclosures. The module's design emphasizes ease of installation and maintenance, with clearly labeled input points and terminals that facilitate straightforward wiring and troubleshooting. This user-friendly design minimizes the time and effort required to deploy the module in the field, making it an attractive choice for system integrators and automation engineers.
The D2-32ND3’s capability to handle a broad range of industrial automation tasks is further enhanced by its compatibility with the DL205 series. This series is known for its versatility, reliability, and performance in demanding industrial environments. By being part of this series, the D2-32ND3 benefits from a proven platform that supports a wide variety of I/O configurations, enabling users to create customized automation solutions tailored to specific operational needs.
Overall, the Automation Direct D2-32ND3 24VDC Discrete Input Module is a robust and versatile component within the DL205 series. It offers extensive input capabilities with 32 discrete points, each capable of handling standard 24 VDC signals. Its support for both sinking and sourcing inputs, combined with isolated input commons, makes it a flexible and reliable choice for monitoring and controlling a wide range of industrial processes. Whether used in manufacturing, process control, or other industrial applications, the D2-32ND3 provides the performance and reliability needed to ensure accurate data acquisition and effective control system operation.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
